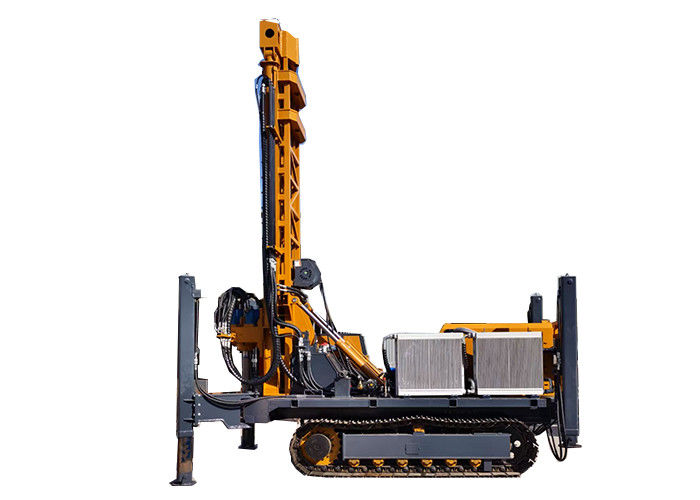

High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe

High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe
High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe
video play

Large Image :  High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe

Product Details:
Place of Origin: China
Brand Name: SHITAN
Certification: ISO,CE
Model Number: ST-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiate
Packaging Details: Wooden Box
Delivery Time: 5-8 workday
Payment Terms: T/T, Western Union
Supply Ability: 1000set
Contact Now
Detailed Product Description
Drill Pipe Length: 6m Lifting Force: 45T
Working Wind Pressure: 1.25-3.5Mpa Adaptive Conditions: Loose Layer And Bedrock
Drilling Hole Diameter: 105-500mm Drill Pipe Diameter: 102/114mm
Axial Pressure: 6TDrilling Depth 800-1000m Gas Consumption: 45T
Engine: Kangmingsi 242 KW Six Cylinder Engine Weight: 20T
Highlight:

Pneumatic Drilling Rig

,

102/114 Drill Pipe Drilling Rig

High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe
Product Specifications
Drill pipe length 6m
Lifting force 45T
Working wind pressure 1.25-3.5Mpa
Adaptive conditions Loose layer and bedrock
Drilling Hole Diameter 105-500mm
Drill pipe diameter 102/114mm
Axial pressure 6T
Drilling Depth 800-1000m
Gas consumption 45T
Engine Kangmingsi 242 KW six cylinder engine
Weight 20T
Product Overview

The ST1000 drilling rig is engineered for large-scale industrial projects requiring depth, efficiency and adaptability. Equipped with a high-performance Yuchai diesel engine, this rig operates effectively in non-grid conditions while delivering the power needed for deepwater well drilling applications.

Technical Parameters
Product Model ST1000
Power Kangmingsi 242 KW six cylinder engine
Drilling Rod Diameter 105-500mm
Drilling Depth Max 1000m
Soil conditions Soft soil layer, Rock layer
Drill pipe length 6m
Drilling Hole Diameter 114mm
Size 6.2m×2.2m×2.5m
Weight 20T
Drilling method Top drive hydraulic rotation and propulsion, DTH impactor or Mud drilling
Key Features
  • Deep Drilling Capability - Reaches depths of 800-1000 meters, ideal for demanding exploration tasks.
  • Wide Hole Diameter Range - Handles drilling from 105-500mm, adaptable to various geological conditions.
  • Heavy-Duty Engine - Cummins 242 KW six-cylinder diesel engine ensures consistent power output.
  • Robust Construction - 20-ton weight provides exceptional stability during operation.
Package Contents
  • 1000m Pneumatic Drill Rig
  • Instruction Manual
  • Drill Bits/Drill pipe, Tools and accessories
Shipping Information
  • Product ships within 3-7 business days after order confirmation
  • Shipping cost calculated based on delivery address
  • Delivery time varies by destination
  • Tracking information provided upon shipment

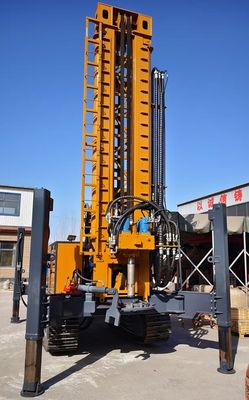

Product Images
High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe 0 High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe 1 High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe 2 High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe 3 High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe 4 High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe 5
