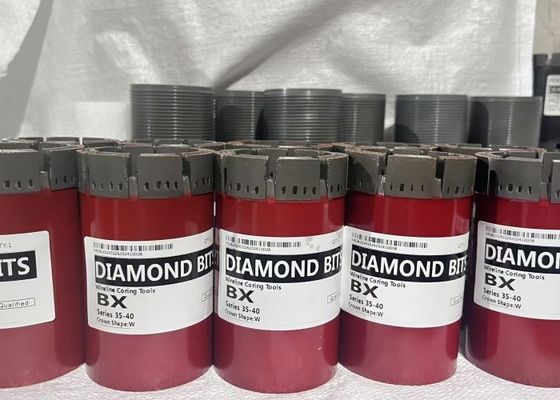

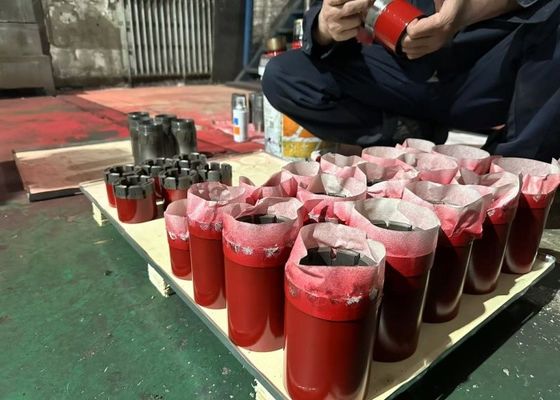

NX BX Impregnated Diamond Core Drill Bit For Samples Wireline Core Collection

Large Image : NX BX Impregnated Diamond Core Drill Bit For Samples Wireline Core Collection

Product Details:

Place of Origin:	Jinzhou ,China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	NX BX

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	5 days after advance payment
Payment Terms:	T/T, Western Union
Supply Ability:	1000000 Units/month

Contact Now

Detailed Product Description

Material:	High Speed Steel	Machine Type:	Drilling Tool
Size:	NX ,BX	Package:	10pcs Per Box.
Welding Tech:	High Frequency Welding, Laser Welding	Weight:	1.5 Pounds
Color:	Golden	Raw Material:	Diamond, Cobalt Powder
Origin:	China	Shaft Diameter:	1/4 Inch
Highlight:	NX BX Impregnated Drill Bit , Samples Wireline Core Collection Drill Bit , Wireline Core Collection Drill Bit

NX BX Impregnated Diamond Core Drill Bit For Samples Wireline Core Collection

Product Specifications

Material:

High Speed Steel

Machine Type:

Drilling Tool

Size:

NX, BX

Package:

10pcs per box

Welding Tech:

High Frequency Welding, Laser Welding

Weight:

1.5 pounds

Color:

Golden

Raw Material:

Diamond, Cobalt Powder

Origin:

China

Shaft Diameter:

1/4 inch

Product Overview

Designed for high-efficiency and precision drilling in applications such as geological exploration, oil drilling, mining, and construction. With outstanding wear resistance, stable drilling performance, and extended service life, our diamond drill bits have become the preferred choice for customers worldwide.

Technical Specifications

Parameter	NX Series (75mm)	BX Series (60mm)	Remarks (SEA Applications)
Diameter	75mm (2.95")	60mm (2.36")	BX suits lighter rigs common in SEA mines
Recommended RPM	150-350 RPM	200-450 RPM	Higher RPM for BX in softer formations
Weight	~4.5kg	~3.2kg	BX preferred for handheld/portable rigs
Applicable Rock Types	Granite, Basalt, Hard Sandstone	Limestone, Shale, Soft-Medium Sandstone	NX for volcanic areas (Indonesia, PH)
Drilling Depth	Up to 300m+ (deep coring)	Up to 150m (shallow exploration)	BX for coal/iron ore in Vietnam, Myanmar
Bit Life	80-120m in hard rock	50-80m in medium rock	Longer life reduces downtime in remote sites
Hydraulic Pressure	50-80 Bar	30-60 Bar	Lower pressure for BX saves energy costs

Regional Advantages for Southeast Asia

BX Series:

Ideal for coal, limestone, and soft mineral exploration (common in Vietnam, Thailand)
Lightweight for mobile rigs in jungle/remote areas
Faster ROI in shallow-depth projects

NX Series:

Dominates hard-rock drilling (Indonesia, Philippines)
Superior heat resistance for tropical high-RPM operations
Corrosion-resistant coatings for coastal/marine surveys

Regional Adaptability:

Both series support high-humidity and abrasive sediment conditions
Optional anti-balling designs for clay-rich layers

Applications

Geological Exploration & Mineral Prospecting

Core Sampling: Used to extract intact rock cores for analysis of mineral deposits (e.g., gold, copper, iron ore)
Resource Estimation: Critical for defining ore body dimensions and grades in mining projects
SEA Relevance: Widely deployed in Indonesia (nickel/gold), Vietnam (bauxite), and Myanmar (jade)

Oil & Gas Drilling

Exploratory Wells: Diamond-impregnated bits drill through hard formations (e.g., granite, basalt) to reach reservoirs
Directional Drilling: Maintain precision in complex well paths
Advantage: Outlasts traditional PDC bits in abrasive strata

Mining & Quarrying

Blast Hole Drilling: Prepares sites for explosives in open-pit mines (e.g., coal in Thailand, tin in Malaysia)
Underground Mining: Compact BX-series bits fit confined spaces

Construction & Civil Engineering
