Laser Welding Collecting Samples Diamond Core Drill Bit Suitable For All Layers

Large Image : Laser Welding Collecting Samples Diamond Core Drill Bit Suitable For All Layers

Product Details:

Place of Origin:	Jinzhou ,China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	Co're Bits

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	5 days after advance payment
Payment Terms:	T/T, Western Union
Supply Ability:	1000000 Units/month

Contact Now

Detailed Product Description

Product Name:	Diamond Core Bit	Machine Type:	Drilling Tool
Size:	As Required	Package:	10pcs Per Box.
Welding Tech:	High Frequency Welding, Laser Welding	Color:	Golden
Raw Material:	Diamond, Cobalt Powder	Origin:	China
Highlight:	All Layers Diamond Core Drill Bit , Collecting Samples Diamond Core Drill Bit , Laser Welding Diamond Core Drill Bit

Laser Welding Collecting Samples Diamond Core Drill Bit Suitable For All Layers

Product Specifications

Attribute	Value
Product Name	Diamond Core Bit
Machine Type	Drilling Tool
Size	As required
Package	10pcs per box
Welding Tech	High Frequency Welding, Laser Welding
Color	Golden
Raw Material	Diamond, Cobalt Powder
Origin	China

High-Performance Diamond Core Bits for Hard Formation Drilling

Our Diamond Core Bits are engineered for extreme durability and precision in hard rock drilling applications. Designed for geological exploration, mining, construction, and geothermal drilling, these bits deliver superior penetration rates and extended service life even in the toughest granite, basalt, quartzite, and other abrasive formations.

Technical Specifications

Diameter (mm)	Type	Suitable Formations	Recommended RPM	Core Diameter (mm)
Φ75	Electroplated Diamond Bit	Medium-hard to hard rock	800-1200	48
Φ91	Electroplated Diamond Bit	Medium-hard to hard rock	700-1000	60
Φ110	Electroplated Diamond Bit	Hard rock, fractured zones	600-900	75
Φ130	Electroplated Diamond Bit	Hard rock, granite	500-800	90
Φ150	Electroplated Diamond Bit	Extremely hard rock, quartzite	400-700	105
Φ171	Electroplated Diamond Bit	Deep hole hard rock drilling	350-600	120
Φ200	Electroplated Diamond Bit	Large diameter geotechnical investigation	300-500	140
Φ220	Electroplated Diamond Bit	Special geological sampling	250-450	160

Key Features & Advantages

Superior Diamond Technology
- Premium Synthetic Diamonds: High-grade diamond segments ensure maximum cutting efficiency in hard formations
- Optimized Segment Design: Reinforced matrix prevents premature wear and reduces bit balling
- Customizable Grit & Bond Hardness: Adjustable for specific rock types (e.g., coarse grit for fast drilling, fine grit for smooth coring)
Robust Construction for Hard Rock
- High-Strength Steel Body: Resists bending and deformation under heavy load
- Enhanced Waterways: Efficient coolant flow prevents overheating in deep drilling
- Reinforced Crown Design: Minimizes breakage in fractured or highly abrasive rock

Why Choose Our Diamond Core Bits?

Proven in Extreme Conditions - Used in African mines, South American quarries, and Asian infrastructure projects
Custom Solutions Available - Tailored segment designs for ultra-hard or fractured formations
Global Supply & Support - Fast delivery, technical assistance, and after-sales service

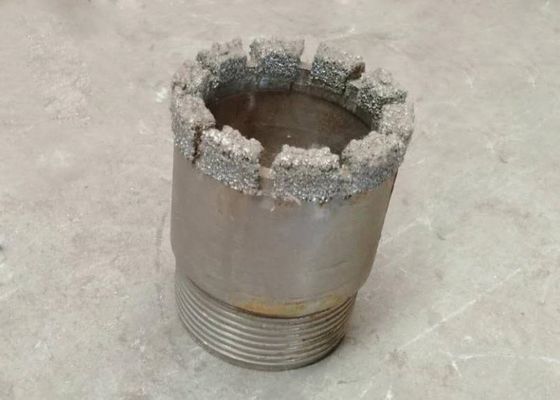

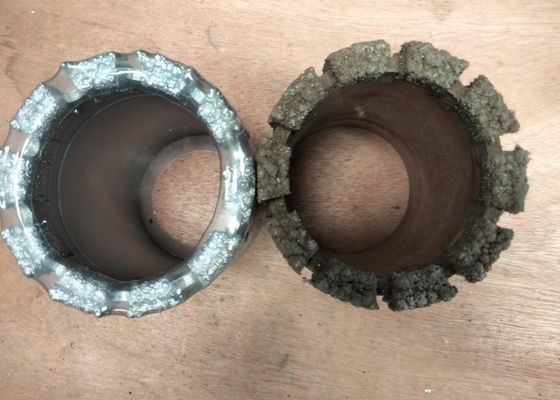

Product Images
