High Efficiency 150m/200m/300m 400m Deep Water Well Drilling Rig For Namibia

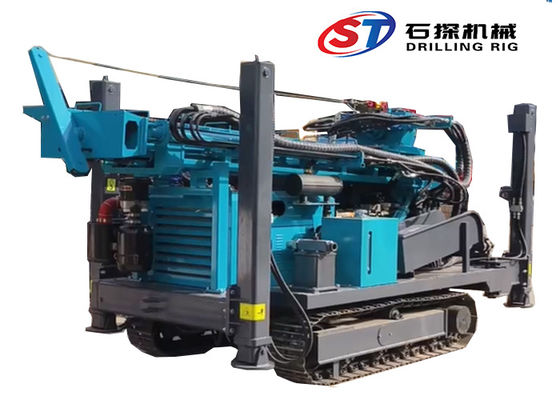

Large Image : High Efficiency 150m/200m/300m 400m Deep Water Well Drilling Rig For Namibia

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST-400

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	5-8 workday
Payment Terms:	T/T, Western Union
Supply Ability:	1000set

Contact Now

Detailed Product Description

Drilling Depth:	100-400m	Drilling Method:	Top Drive Hydraulic Rotation
Walking Speed:	2.5km/h	Weight:	9T，with Good Stability
Lifting Force:	28T	Working Wind Pressure:	1.25-3.5Mpa
Gas Consumption:	16-55m³/min	Applicable Industries:	Agriculture, Construction, Industry, Etc.
Highlight:	400m Deep Water Well Drilling Rig , 300m Deep Water Well Drilling Rig , High Efficiency Water Well Drilling Rig

Product Description

The ST400S crawler-type water well drilling rig is a high-efficiency, multi-functional drilling equipment designed for industrial and civil water well projects. With a maximum drilling depth of 400 meters and a diameter range of 105-305mm, it meets diverse requirements. Equipped with a powerful Yuchai 92KW six-cylinder engine, it delivers robust performance and a drilling efficiency of 10-35m/h, enabling the completion of a well in just a few days.

Features

Exceptional Drilling Capacity – Maximum drilling depth of 400 meters with a diameter range of 105-305mm, meeting industrial, civil, and engineering drilling needs.
Massive Torque Output – 9900N·m of torque, enabling smooth penetration through hard rock formations for deep-hole drilling.
High-Efficiency Power System – Equipped with a Yuchai 92KW six-cylinder engine, delivering robust power and a drilling rate of 10-35m/h for rapid well completion.

Technical Parameters:

Product Name:	ST-400 Drilling and Water Well Drilling Rig
Key Words:	Water well drilling rig/deep water well drilling rig/Pneumatic Drilling Rig
Depth:	100m-400m
Drilling Hole Diameter:	75-305mm
Drilling Rod Diameter:	89mm/102mm
Weight:	9T
Power Source:	Diesel Engine
Size:	5.6m×2m×2.5m

Shipping:

Ships within3-5business days
International shipping available
Shipping cost varies based on location
