Compact Water Well Pneumatic Drilling Rig For Agriculture / Industry

Compact Water Well Pneumatic Drilling Rig For Agriculture / Industry

Product Specifications

Attribute	Value
Drilling method	Top drive hydraulic rotation and mud pump
Drill pipe length	6m
Drill pipe diameter	89mm/102mm (Adjustable according to depth)
Lifting force	28T
High leg travel	1.35m (Easy to get on and off)
Travel mode	Tracks/tires
Overall dimension	5.6m × 2m × 2.5m
Adaptive conditions	Loose layer and bedrock

Product Overview

The ST400S pneumatic drill rig is engineered for high mobility and deep-hole drilling performance, featuring a maximum lifting force of 28T and rapid lifting speed of 47m/min to maximize operational efficiency. The rig includes a 1.5T auxiliary winch and 1.35m-high support legs for enhanced stability during operation. With optimized air consumption (16-55m³/min) and compatibility with 1.25-3.5Mpa working pressure, it delivers energy-efficient performance across various drilling applications.

Technical Parameters

Category	Parameter	Specifications
Drilling Capacity	Max. Drilling Depth	400m
	Drilling Diameter Range	105-305mm
Drilling Technology	Supported Modes	Top-drive hydraulic rotation, Down-the-hole hammer, Mud drilling
Auxiliary Configuration	Auxiliary winch load	1.5T
	Drill pipe specifications	6m length (Recommended diameter: 89mm)
Energy Efficiency	Air consumption range	16-55m³/min
	Working air pressure range	1.25-3.5Mpa

Key Features

• High Mobility & Stability: Crawler chassis with 21° climbing ability for rugged terrains, supported by 1.35m-high stabilizing legs
• Efficient Lifting System: 28T maximum lifting force with 47m/min speed for rapid operation
• Versatile Drilling Technology: Adapts to all geological formations from loose layers to bedrock

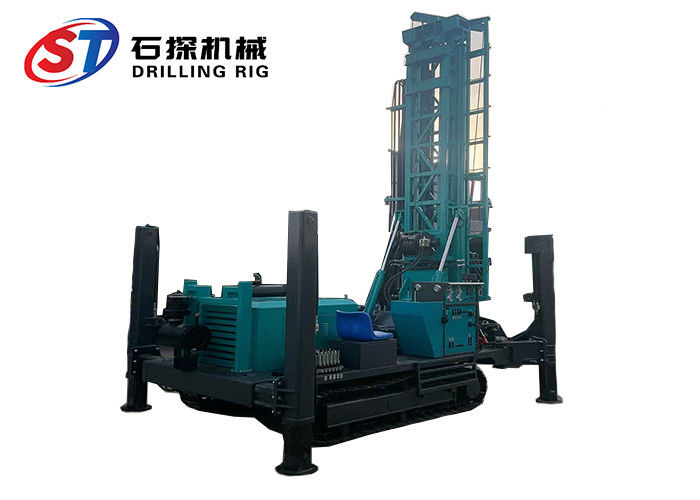

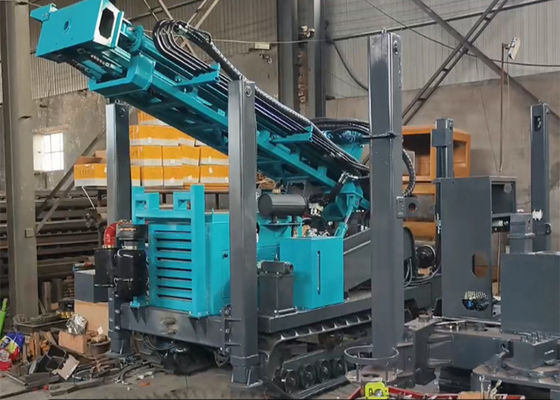

Product Gallery

Shipping Information

• Ships within 3-5 business days
• International shipping available
• Shipping cost varies based on destination
