40m/Min Pneumatic Drilling Rig For Deep Water Well Arid Areas

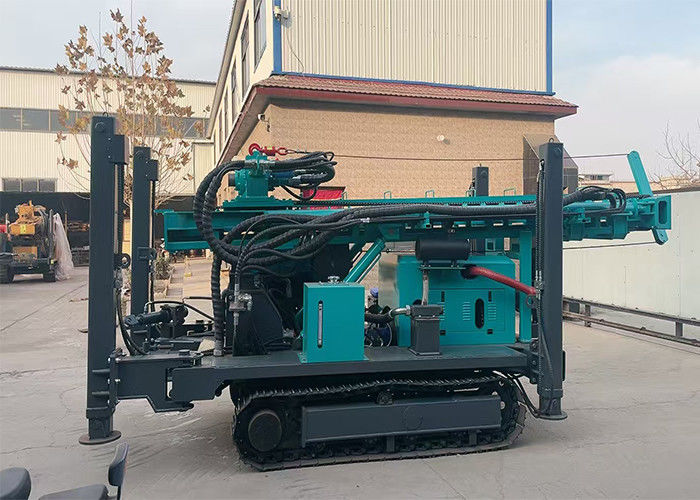

Large Image : 40m/Min Pneumatic Drilling Rig For Deep Water Well Arid Areas

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST-400

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	5-8 workday
Payment Terms:	T/T, Western Union
Supply Ability:	1000set

Contact Now

Detailed Product Description

Fast Forward Speed:	40m-min	Maximum Turning Torque:	9900
Drill Pipe Diameter:	89mm	High Leg Travel:	1.35m
Climbing Degree:	30	Overall Dimension:	5.6m×2m×2.5m
Engine:	Six Cylinder Engine	Drilling Depth:	Max 400m
Highlight:	40m/Min Pneumatic Drilling Rig , Deep Water Well Pneumatic Drilling Rig , Arid Areas Pneumatic Drilling Rig

40m/Min Pneumatic Drilling Rig For Deep Water Well Arid Areas

Product Specifications

Fast forward speed	40m/min
Maximum turning torque	9900 N*m
Drill pipe diameter	89mm
High leg travel	1.35m
Climbing degree	30°
Overall dimension	5.6m × 2m × 2.5m
Engine	Six cylinder engine
Drilling Depth	Max 400m

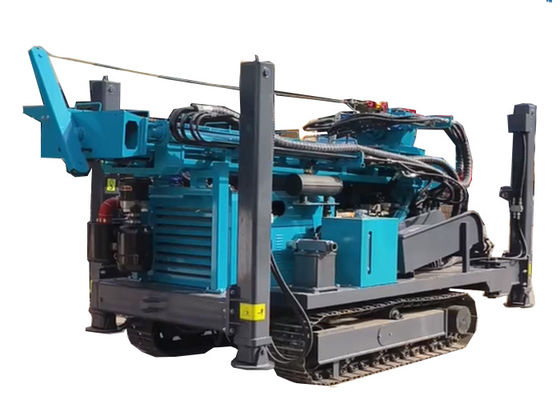

ST400 Pneumatic Drill

The ST400S crawler-type water well drilling rig is powered by a Yuchai 92KW six-cylinder engine, delivering vigorous performance with an axial force of 5T to ensure precise and efficient drilling. The rig utilizes 6-meter-long drill rods (recommended diameter: 89mm) and a massive torque of 9900N*m, effortlessly handling drilling tasks up to 400 meters deep. With high-support legs offering a 1.35m stroke, it excels in complex terrains, making it the preferred choice for water resource development and infrastructure construction.

Key Advantages

Energy-Efficient Operation: Air consumption of 16-55m³/min and compatible working air pressure of 1.25-3.5Mpa, optimizing energy use and reducing operational costs.
Compact & Portable Design: Compact dimensions (5.6m×2m×2.5m) and a weight of just 10T, ensuring easy transportation and deployment.
Smart & Labor-Saving Control: User-friendly console allows operation by just 1-2 personnel, minimizing labor requirements.
Large-Diameter & Deep-Hole Capability: Capable of drilling 305mm large-diameter wells while achieving 400m deep-hole drilling, ideal for water wells, geothermal wells, and more.

Technical Parameters

Product Name:	ST-400 Deep Water Well Drilling Rig
Depth:	100-400m
Power Source:	Diesel Engine Yuchai 93kw
Drilling Hole Diameter:	75-305mm
Drilling Rod Diameter:	102mm
Size:	5.6m × 2m × 2.5m
Adaptive conditions:	Loose layer and bedrock
Drilling method:	Top drive hydraulic rotation and propulsion, DTH impactor or Mud drilling
