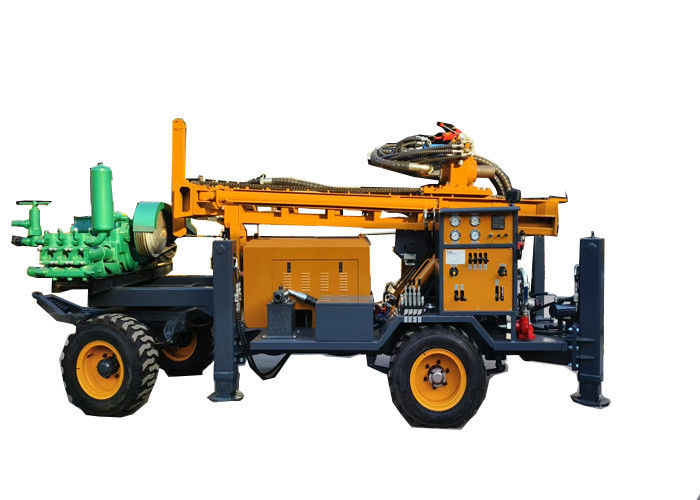

High Leg Water And Gas Dual Purpose Drilling Rig Equipped With Tires / Track

Large Image : High Leg Water And Gas Dual Purpose Drilling Rig Equipped With Tires / Track

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST-400

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	5-8 workday
Payment Terms:	T/T, Western Union
Supply Ability:	1000set

Contact Now

Detailed Product Description

Adaptive Conditions:	Yuchai 92KW	Gas Consumption:	16-55m³/min
Working Wind Pressure:	1.25-3.5Mpa	Walking Speed:	2.5km/h
Drill Pipe Length:	6m	Drill Pipe Diameter:	89mm/102mm/114mm
Drilling Depth:	150-400m	Origin:	Hebei, China
Highlight:	Track Water Drilling Rig , Gas Dual Purpose Drilling Rig , High Leg Water Drilling Rig

High Leg Water And Gas Dual Purpose Drilling Rig Equipped With Tires/Track

Product Specifications

Attribute	Value
Adaptive conditions	Yuchai 92KW
Gas consumption	16-55m³/min
Working wind pressure	1.25-3.5Mpa
Walking speed	2.5km/h
Drill pipe length	6m
Drill pipe diameter	89mm/102mm/114mm
Drilling Depth	150-400m
Origin	Hebei, China

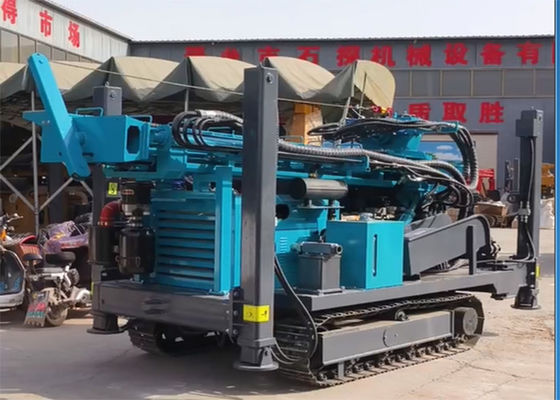

ST400 Pneumatic Drill

A model of technological innovation and stability, the ST400S crawler-type water well drilling rig integrates top-drive hydraulic rotation, down-the-hole hammer, and mud drilling technologies, offering diverse drilling methods adaptable to all formations—from loose layers to bedrock.

With a user-friendly console, the rig can be operated by just 1-2 people, significantly reducing labor requirements.

Key Advantages

Powerful & Reliable Performance
- 93kW Yuchai Diesel Engine - Provides robust, continuous power for deep drilling (up to 400m) in remote or off-grid locations
- Hydraulic Top Drive System - Ensures smooth rotation and propulsion, enhancing drilling speed and precision
Flexible Drilling Options
- 3-in-1 Drilling Methods - Switch seamlessly between DTH Hammer (for hard rock), Mud Drilling (for unstable formations), and Rotary Drilling (for general-purpose use)

Technical Parameters

Drilling Hole Diameter	105-305mm
Drill pipe diameter	89mm/102mm
Engine	Six cylinder engine Yuchai 92KW
Drilling method	Hydraulic rotation and propulsion or Mud drilling
Weight	9T
Overall dimension	5.6m×2m×2.5m
Fast forward speed	40m-min
Use	Water Wells (agricultural, industrial, or domestic)
