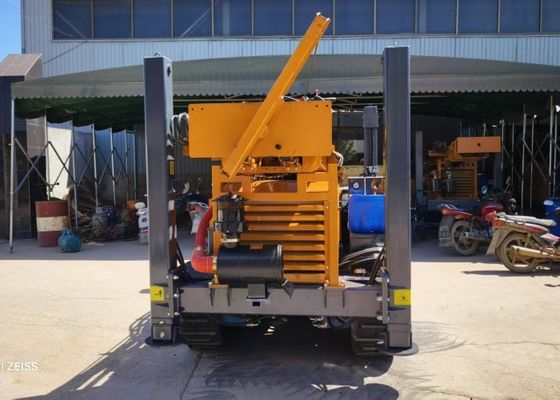

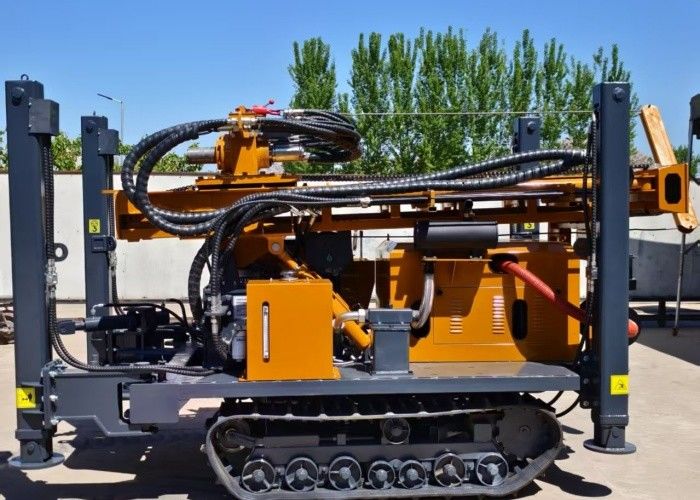

Diesel Engine Deep Pneumatic Drilling Rig With BW250 Mud Pump

ST 180 Pneumatic Deep Drilling Rig Machine

Product Description

The rig with hydraulic technology,supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance.

Product Tech Details

1)Greater fuel efficiency and energy saving

2) Air filtration system with vacuum indication for dust environments

3) Compressor oil and engine coolant coolers to optimize performance and extend engine life

4) Efficient compressor oil filter

5) Fuel filter with water separator

6)Easy to remove, translucent PE fuel tank

Product  Application

The water well drilling rig can be applied to various strata, used in water well engineering, geothermal well, anchor pile holeand so on, and can be used with follow-pipe drilling. It has the advantages of whole machine hydraulic control, automatic loading and unloading drill pipe, crawler type chassis, large horsepower diesel engine, four hydraulic support leg balance, stronger terrain application ability and so on.

Hard Rock Drilling

Edge: High-frequency impact + automatic cuttings removal; granite drilling speed: 2-3m/hour.

Case Study: A 150m well in Ethiopian granite completed in 72 hours.

Remote Area Operations

Edge: Fully pneumatic (no electricity); modular design allows transport via pack animals.

Case Study: Successful Himalayan village water project (Nepal) at 3,800m altitude.

Cost Efficiency

Energy: Saves 40% fuel vs. hydraulic rigs (for a 200m well).

Maintenance: Eliminates hydraulic oil costs; annual savings: $2,000+.
