Rubber Crawler Track Undercarriage For Construction Works Powered By Diesel Engine

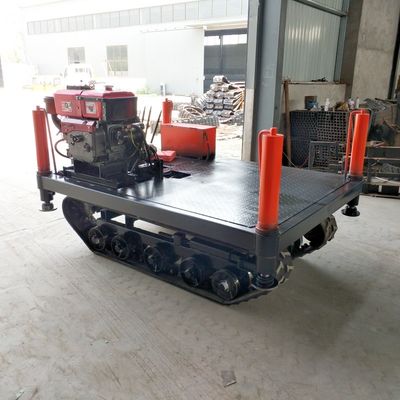

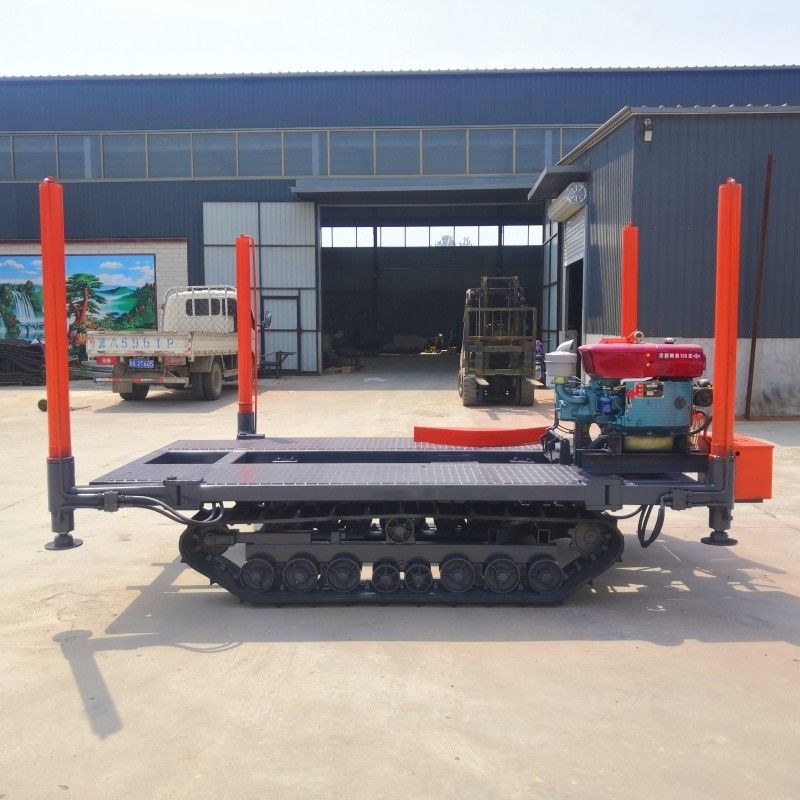

Large Image : Rubber Crawler Track Undercarriage For Construction Works Powered By Diesel Engine

Product Details:

Place of Origin:	Jinzhou ,China
Brand Name:	SHITAN
Certification:	ISO
Model Number:	Shitan T1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	5 days after advance payment
Payment Terms:	T/T,Western Union
Supply Ability:	1000 Sets/month

Contact Now

Detailed Product Description

Product Name:	Customized Construction Platform Crawler Track Undercarriage For Drilling Rig Machinery	Loading Capacity:	Customized
Raw Material:	Alloy Steel	OEM:	Acceptable
Power:	Diesel Engine	Brand Name:	Shitan
Warranty:	12 Month	After Sale Service:	Video Support
Application:	Drilling Rigs	Speed:	Customized
Highlight:	Diesel Engine Powered Track Undercarriage , Rubber Track Undercarriage , Construction Works Track Undercarriage

Rubber Crawler Track Undercarriage For Construction Works

Product Specifications

Attribute	Value
Product Name	Customized Construction Platform Crawler Track Undercarriage For Drilling Rig Machinery
Loading Capacity	Customized
Raw Material	Alloy Steel
OEM	Acceptable
Power	Diesel Engine
Brand Name	Shitan
Warranty	12 month
After sale service	Video Support
Application	Drilling Rigs
Speed	Customized

Product Description

The track shoe is fixed on the rail joint with high-strength bolts, and the chain rail joint and the rail are slightly pressed together with the chain rail sleeve in the way of interference fit. This vehicle uses a track with a pitch of 135mm. The track is sealed with a special rubber ring to prevent sand, water and other abrasive particles from entering the mating surface.

Technical Details

Applicable Industries: Farms, Home Use, Construction works
Place of Origin: China
Warranty: 1 Year
Material: Steel/Rubber
Condition: 100% new
Transmission: Hydraulic Transmission
Travel Speed: 0-5 Km/h
Application: Excavator/Drill rig/Mining equipment/Construction machinery

Track Classification

The Crawler Track Undercarriage can be divided into two types according to its structure:

Metal Pin Hinge Type: Simple structure with direct dry friction between pin and pin hole, resulting in faster wear and shorter service life.
Metal Rubber Hinge Type: Features rubber collars vulcanized on metal pins, eliminating direct friction. Offers low noise and longer service life, though more complex and costly.

Main Applications

Rubber track chassis is primarily used in small light industry (1-4 ton agricultural machinery) and small construction machinery industry (especially small drilling equipment). Steel tracks offer broader application range and longer service life, suitable for heavier drilling rigs and construction machinery.

Routine Maintenance
