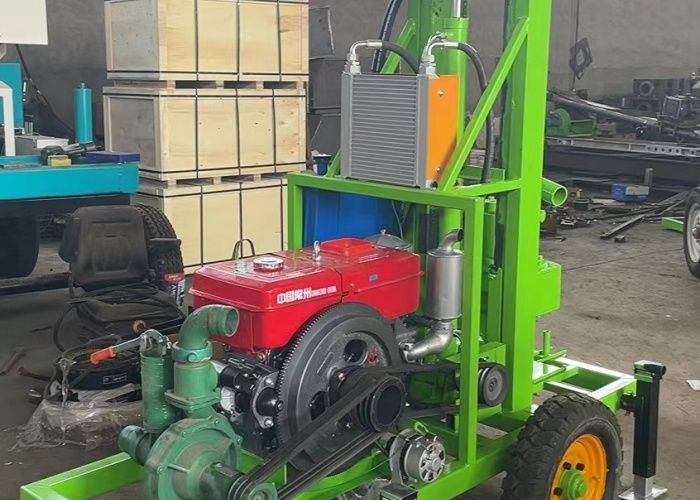

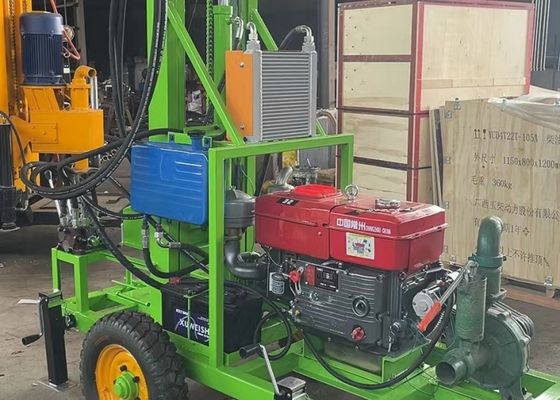

150 Meters Tractor Drilling Machine For Borehole Portable Equipment

Large Image : 150 Meters Tractor Drilling Machine For Borehole Portable Equipment

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	ST-150

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	1000-3000 USD
Packaging Details:	wooden box
Delivery Time:	7 days after payment
Payment Terms:	TT,Western union
Supply Ability:	1000 or 2000 set per year

Contact Now

Detailed Product Description

Product Name:	ST-150 Tractor Drilling Machine	Key Words:	Diesel Borehole Drilling Rig,water Borehole Drilling Equipment ,portable Water Well Drilling Rigs,150m Borehole Drilling Machine,100 Meters Water Well Drilling ,Water Borehole Drilling Rig,water Well Borehole Drilling Rig,
Brand Name:	Shitan Or Customized Logo	Nameplate:	Customization
Drilling Depth:	100m-200m	Drilling Diameter:	300mm
Drilling Rod:	Φ60mm,50mm	Lifting Capacity:	15KN
Power Supply:	380V/50HZ	Drilling Method:	Mud Drilling
Highlight:	Portable Water Well Rig Equipment , Borehole Water Well Drilling Rig , 150Meters Water Well Drilling Rig

ST-150 Tractor Drilling Machine

A high-performance 150-meter borehole drilling rig with robust construction for water well, geothermal, and exploration applications.

Key Specifications

Attribute	Value
Brand	Shitan or Customized Logo
Drilling Depth	100m-200m
Drilling Diameter	300mm
Drilling Rod	Φ60mm, 50mm
Lifting Capacity	15KN
Power Supply	380V/50HZ
Drilling Method	Mud Drilling

Core Features

Rapid Deployment: Pre-assembled modules enable site readiness in under 2 hours
Low-Cost Operation: Optimized mud recycling system reduces fluid consumption by 40%
Robust Performance: Reinforced derrick withstands hard clay/sedimentary formations (UCS ≤80MPa)
Operator-Friendly: Ergonomic controls with auto-locking rod system minimize labor fatigue

Technical Parameters

Parameter	Value	Unit	Description
Drilling Depth	150	m (328 ft)	Shallow water well construction (≤100m)
Hole Diameter	300	mm (12 in)	Borehole size for high-capacity water supply
Drilling Method	Mud Circulation	-	Stabilizes borehole and removes cuttings
Lifting Capacity	15	kN (1.5 Ton)	Handles drill rods and tools during operation
Drill Rod Spec	Φ60	mm	API-standard thread for reliable connection
Power Requirement	380V/50Hz	3-Phase	Industrial electrical input for stable operation
Mud Pump Flow Rate	80-120	L/min	Efficient cuttings removal for continuous drilling

Applications

The ST-150 Water Well Drilling Rig is designed for multiple applications including:

Drinking water wells
Agricultural irrigation systems
Geothermal energy projects
Mining exploration
Construction site preparation
Environmental monitoring wells

Customization Options

We offer comprehensive customization services including:

Design modifications to meet specific project requirements
Adjustable drilling depth and diameter configurations
Complete drilling equipment sets with accessories
Operator training and technical support packages

Support & Services

Our comprehensive support package includes:

Technical assistance during drilling operations
Routine maintenance and repair services
Operator training programs
Extended warranty options
24/7 customer support hotline

Packing & Shipping

The drilling rig is securely packed in wooden crates with foam padding to prevent transit damage. We work with trusted freight carriers to ensure safe delivery worldwide. Standard lead time is 7 days after payment confirmation.

Frequently Asked Questions

What certifications does the ST-150 have?

The drilling rig comes with ISO certification and meets international safety standards.

What is the minimum order quantity?

We accept orders for single units, with volume discounts available for larger purchases.

What payment methods do you accept?

We accept TT (Telegraphic Transfer) and Western Union payments.

Product Gallery

About Manufacturer

Jinzhou Shitan Machinery Co., Ltd. specializes in drilling equipment manufacturing with modern production facilities and complete quality control systems. We offer a full range of drilling solutions including:

Pneumatic and crawler drilling rigs
Custom track chassis systems
BW series mud pumps
Complete drilling tool sets
Replacement parts and assemblies
