Red / Yellow / Blue Pneumatic Big Drilling Machine For Deep Water Well High Working Efficiency

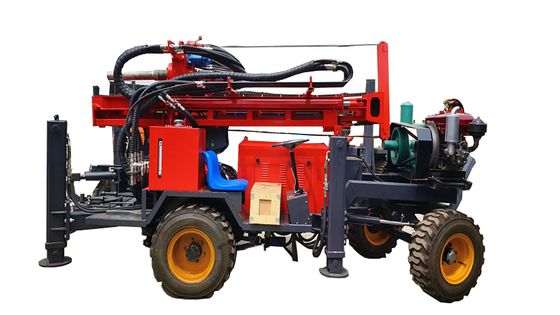

Large Image : Red / Yellow / Blue Pneumatic Big Drilling Machine For Deep Water Well High Working Efficiency

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST180

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	5-8 workday
Payment Terms:	T/T, Western Union
Supply Ability:	500set

Contact Now

Detailed Product Description

Drilling Hole Diameter:	105-305mm	Type:	Rotary Drilling Rig
Use:	Water Well	Drilling Depth:	Max.200m
Warranty:	1 Year	Core Components:	Motor, Pump, Engine
Key Selling Points:	High Working Efficiency	Video Outgoing-inspection:	Provided
Highlight:	High Efficiency Pneumatic Drilling Machine , Red Pneumatic Drilling Machine , Deep Water Well Drilling Machine

ST180 Pneumatic Drilling Rig - High-Efficiency Water Well Drilling Machine

Product Specifications

Attribute	Value
Drilling Hole Diameter	105-305mm
Type	Rotary Drilling Rig
Use	Water Well
Drilling Depth	Max. 200m
Warranty	1 year
Core Components	Motor, Pump, Engine
Key Selling Points	High working efficiency
Video outgoing-inspection	Provided

High-Efficiency Productivity

"180m Deep Holes, 35m/h Rapid Drilling!"

Powerful Performance: 55KW engine + hydraulic top drive, drilling speed 10-35m/h, reduces project time by 40%!
Large-Diameter Capability: Supports 105-305mm boreholes, ideal for industrial water wells and geothermal applications.
Dual Drilling Modes: DTH hammer + mud circulation, adaptable to various formations for doubled efficiency!

Technical Parameters

Product Name	ST180 Pneumatic Drilling Rig
Drilling Hole Diameter	305mm, 200mm, 120mm, 75mm, 60mm
Drilling Rod Diameter	102mm/114mm/89mm
Power Type	Diesel
Drilling depth	180m
Climbing ability	30
Lifting force of small auxiliary winch	1.2T
Weight	4.5T
Drilling method	Mud pump / Air compressor

Key Features

Quick Rod Remover: The drill pipe can be removed quickly, saving time and effort
Double Pump Hydraulic Power Head: Large torque, fast drilling efficiency, multi-function can be changed to water drill
Two Meter Telescopic Tower: The slide takes up little space and has a large lifting force
2 Person Operation: Simple console, easy to operate, easy to use

Packing and Shipping
