Automatic Deep Rock Drilling Rigs With Air Compressor For Water Well Drilling Drilling Diameter 200mm

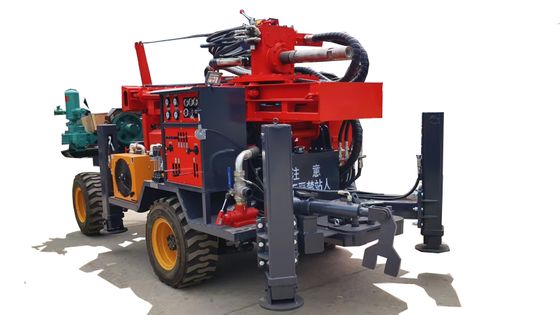

Large Image : Automatic Deep Rock Drilling Rigs With Air Compressor For Water Well Drilling Drilling Diameter 200mm

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST180

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	5-8 workday
Payment Terms:	T/T, Western Union
Supply Ability:	500set

Contact Now

Detailed Product Description

Origin:	Hebei，China	Name:	Water Well Drill Machine
Power Type:	Diesel	Drilling Diameter:	100mm/200mm/300mm/350mm
Usage:	Water Well	Core Components:	Engine, Motor, Pressure Vessel, Pump
Power:	55kw	Drilling Method:	Pneumatic Hammer Drilling
Highlight:	Automatic Water Well Drilling Rigs , 200mm Deep Rock Drilling Rigs , Automatic Deep Rock Drilling Rigs

Automatic Deep Rock Drilling Rigs With Air Compressor For Water Well Drilling

Product Specifications

Attribute	Value
Origin	Hebei, China
Name	Water well drill machine
Power Type	Diesel
Drilling Diameter	100mm/200mm/300mm/350mm
Usage	Water Well
Core Components	Engine, motor, Pressure vessel, Pump
Power	55kw
Drilling method	Pneumatic Hammer Drilling

Key Features

Hydraulic Precision + User-Friendly Operation!
✅ Fine-Tuned Adjustments: Smart hydraulic control for axial pressure (4T) and rotation speed (85/170r/min).
✅ Safe & Smooth: 20m/min hoisting speed + 1.2T auxiliary winch minimizes operator errors.
✅ Intuitive Monitoring: Real-time data display, easy for beginners to master, reducing training costs!

Technical Parameters

Drill depth	max 200m
Drill pipe length	3m
Drilling Hole Diameter	60-305mm
Drilling Rod Diameter	102mm/114mm/89mm
Weight	4500kg
Warranty	1 Year
Core Components	Engine, motor, Pressure vessel, Pump
Engine Model	55kw
Overall dimension	3.41.82.3m
Sales scope	Asia, America, Europe, Africa and other regions

Advanced Features

Engineered for tough conditions, the system delivers an exceptional 16-ton lifting force and 5900Nm torque to power through hard rock formations effortlessly.
Advanced hydraulic controls with real-time monitoring ensure precise adjustment of drilling parameters including 4T axial pressure and dual-speed rotation (85/170r/min).
As a factory-direct product manufactured by an experienced producer, customers benefit from significant cost savings without compromising on quality or performance.
Backed by a decade of specialized engineering expertise in drilling equipment, we provide comprehensive technical support and operator training with every purchase.
Our commitment to customer satisfaction includes round-the-clock after-sales service with rapid response times to ensure minimal downtime for your operations.
