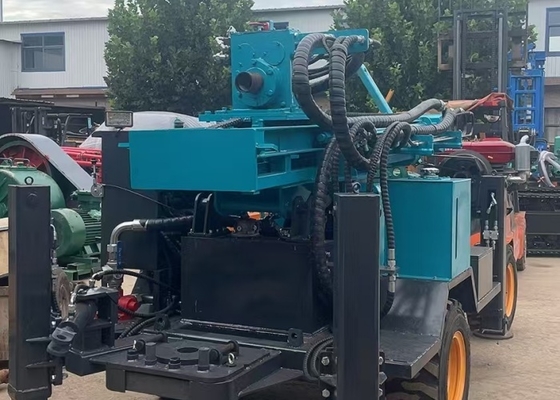

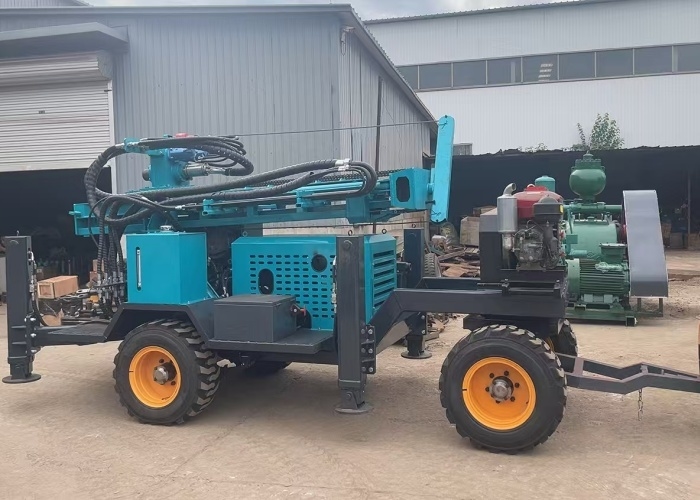

Self -Walking Dth Drilling Equipment With Fast Speed Durable Material

Self -Walking Dth Drilling Equipment With Fast Speed Durable Material
Self -Walking Dth Drilling Equipment With Fast Speed Durable Material
video play

Large Image :  Self -Walking Dth Drilling Equipment With Fast Speed Durable Material

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: ST-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-10 days
Payment Terms: T/T,Western Union
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Product Name: Borehole Drilling Equipment Model Number: ST 300
Machine Type: Water Borehole Drilling Machine Certification: ISO/CE/COC
Hole Diameter: Customized Drilling Depths: 300 Meters
Drilling Rod: 76/89mm Weight: 8.9 T
Support: Online Video Rotation Torque: 7500Nm, 983 N.m, 4200N.m, 3400mm
Air Consumption: 16-30 M3/min, 20-100m3/min, 17-31m3/min, 16-30cubic Meter/min Color: Yellow,Red And Blue
Highlight:

self-walking DTH drilling rig

,

fast speed pneumatic drilling equipment

,

durable material DTH drilling rig

Self-Walking DTH Drilling Equipment With Fast Speed Durable Material
Professional-grade drilling rig designed for demanding geological conditions with powerful pneumatic operation and deep drilling capabilities.
Key Features
  • Designed for deep well drilling up to 300 meters
  • Pneumatic drive system for powerful performance
  • Suitable for hydrogeological exploration and water well drilling
  • Excellent adaptability for complex geological conditions
  • ISO certified with 12-month warranty
Product Specifications
Attribute Value
Model Number Crawler-mounted drilling rig
Machine Type Drilling Equipment
Certification ISO
Hole Diameter Customized (90-300mm)
Drilling Depths 300 meters
Condition New
Weight 8.9 T
Warranty 12 months
Rotation Torque 7500Nm, 983 N.m, 4200N.m
Air Consumption 16-30 M3/min, 20-100m3/min
Color Options Yellow, Red and Blue
Technical Details
  • Power: Diesel
  • Dimensions: 6400MM * 2250MM * 2700MM
  • Weight: 5800KG
  • Rotary Speed: 0-90rpm
  • Travelling Speed: 0-2.5km/h
  • Drilling Rods: 76*2m + 76*3m
Equipment Components
  • Pneumatic System: Provides power to drive the rotation and impact of the drill bit
  • Drill Rod System: Multiple sections of drill rods for gradual penetration
  • Drill Bit: Various types available based on geological conditions
  • Control System: Adjusts drilling parameters like rotation speed and impact force
  • Debris Removal System: Uses compressed air or mud to keep borehole clean
Safety Precautions
  • Operators must undergo professional training
  • Wear safety helmets, gloves, and other protective equipment
  • Inspect surrounding environment before operation
Product Images
Self -Walking Dth Drilling Equipment With Fast Speed Durable Material 0 Self -Walking Dth Drilling Equipment With Fast Speed Durable Material 1 Self -Walking Dth Drilling Equipment With Fast Speed Durable Material 2 Self -Walking Dth Drilling Equipment With Fast Speed Durable Material 3 Self -Walking Dth Drilling Equipment With Fast Speed Durable Material 4 Self -Walking Dth Drilling Equipment With Fast Speed Durable Material 5 Self -Walking Dth Drilling Equipment With Fast Speed Durable Material 6 Self -Walking Dth Drilling Equipment With Fast Speed Durable Material 7
