Diesel Engine Deep Water Well Drilling Machines For Farming Irrigation Boreholes

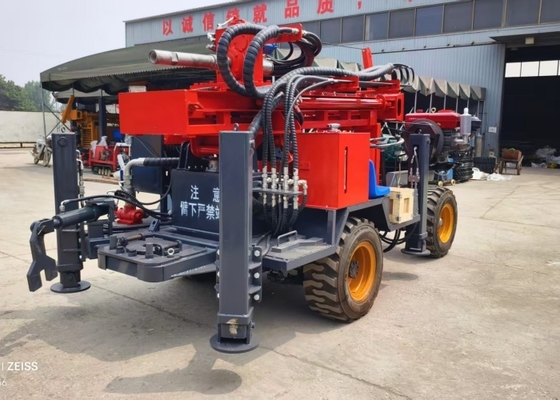

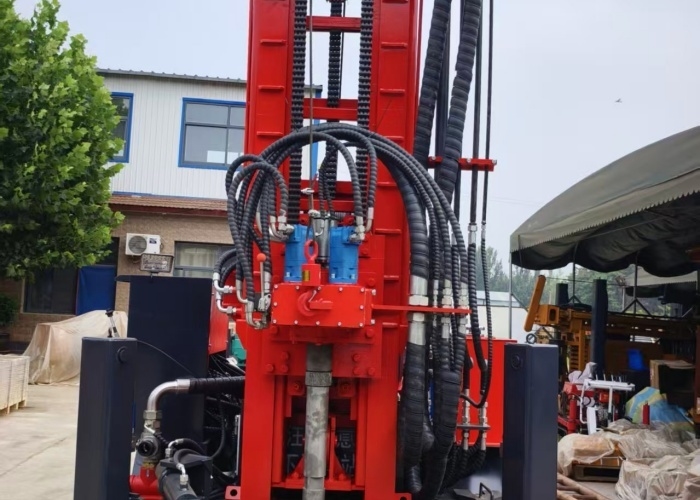

Large Image : Diesel Engine Deep Water Well Drilling Machines For Farming Irrigation Boreholes

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO/CE/COC
Model Number:	ST-180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	Diesel Engine Deep Water Well Drilling Machines For Farming Irrigation Boreholes	Model Number:	ST 180
Machine Type:	Water Borewell Drilling Rig	Certification:	ISO/CE/COC
Hole Diameter:	100-350 Mm	Drilling Depths:	180 Meters
Drilling Rod:	89/76mm	Diesel Engine:	Yuchai Brand
Warranty:	12 Months	Mud Pump:	BW 200,BW 250
After Sale Service:	Video Support	Color:	Optional
Highlight:	diesel engine deep water drilling machine , farming irrigation borehole drilling rig , pneumatic drilling rig for water wells

Diesel Engine Deep Water Well Drilling Machines For Farming Irrigation Boreholes

Professional-grade drilling rig designed for demanding geological conditions with powerful pneumatic operation and deep drilling capabilities.

Key Features

Designed for deep well drilling up to 300 meters
Pneumatic drive system for powerful performance
Suitable for hydrogeological exploration and water well drilling
Excellent adaptability for complex geological conditions
ISO certified with 12-month warranty

Product Specifications

Attribute	Value
Model Number	Crawler-mounted drilling rig
Machine Type	Drilling Equipment
Certification	ISO
Hole Diameter	Customized (90-300mm)
Drilling Depths	260 meters
Condition	New
Weight	8.9 T
Warranty	12 months
Rotation Torque	7500Nm, 983 N.m, 4200N.m
Air Consumption	16-30 M3/min, 20-100m3/min
Color Options	Yellow, Red and Blue

Technical Details

Power: Diesel
Dimensions: 6400MM * 2250MM * 2700MM
Weight: 5800KG
Rotary Speed: 0-90rpm
Travelling Speed: 0-2.5km/h
Drilling Rods: 76*2m + 76*3m

Equipment Components

Pneumatic System: Provides power to drive the rotation and impact of the drill bit
Drill Rod System: Multiple sections of drill rods for gradual penetration
Drill Bit: Various types available based on geological conditions
Control System: Adjusts drilling parameters like rotation speed and impact force
Debris Removal System: Uses compressed air or mud to keep borehole clean

Safety Precautions
