Mobile Rock Drill Rig Equipment For Water Well Digging Agriculture

Large Image : Mobile Rock Drill Rig Equipment For Water Well Digging Agriculture

Product Details:

Place of Origin:	CHINA
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST-300

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD10000-20000/SET
Packaging Details:	Plastic film and Standard export wooden box
Delivery Time:	15-20days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500sets/year

Contact Now

Detailed Product Description

Name:	Deep Water Well Drilling Rig	Fast Forward Speed:	40m-min
Maximum Rotation Speed:	85/170r/min	Drilling Depth:	300m /985ft
Drilling Hole Diameter:	105-305mm	Drill Pipe Length:	6m
Drill Pipe Diameter:	89mm/102mm	Lifting Force Of Small Auxiliary Winch:	1.2T
Highlight:	mobile rock drill rig , water well drilling equipment , agricultural well digging rig

Mobile Rock Drill Rig Equipment For Water Well Digging & Agriculture

This mobile rock drill rig is designed for efficient water well drilling and agricultural applications, featuring a compact design with advanced hydraulic systems for reliable performance in various geological conditions.

Key Features

Compact body: 4.8m * 1.9m * 2.35m dimensions with easy transportation
Optimal weight: 8-ton equipment balances stability and transport convenience
Modular design: Well-organized hydraulic system for easy maintenance
Dual winch system: Main winch + 1.2-ton auxiliary winch for efficient tool handling
High leg stroke: 1.35-meter clearance provides ample drilling workspace
Advanced drive: Top drive hydraulic system with high efficiency and reliability

Applications

Ideal for geotechnical investigation, exploration, prospecting, and water well drilling. Widely used in construction projects including:

Railway, road, and port infrastructure
Bridge and tunnel construction
Water conservancy and hydropower projects
Industrial and civil building foundations
Geological exploration
Large diameter boring piles
Small diameter diamond core deep hole drilling

Technical Specifications

Parameter Category	Specification Detail
Driving Type	Hydraulic Rotation
Drill Pipe Diameter	76mm/89mm/102mm
Auxiliary Winch Capacity	1.2 Tons
High Leg Travel	1.35 meters
Climbing Ability	30°
Overall Dimensions (LWH)	4.8m * 1.9m * 2.35m
Chassis Type	Crawler Mounted
Adaptive Conditions	Loose Layer & Bedrock

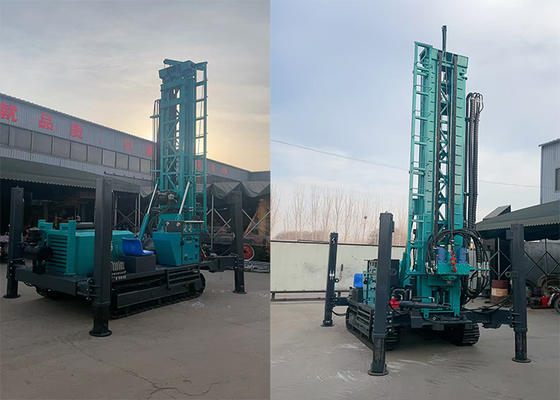

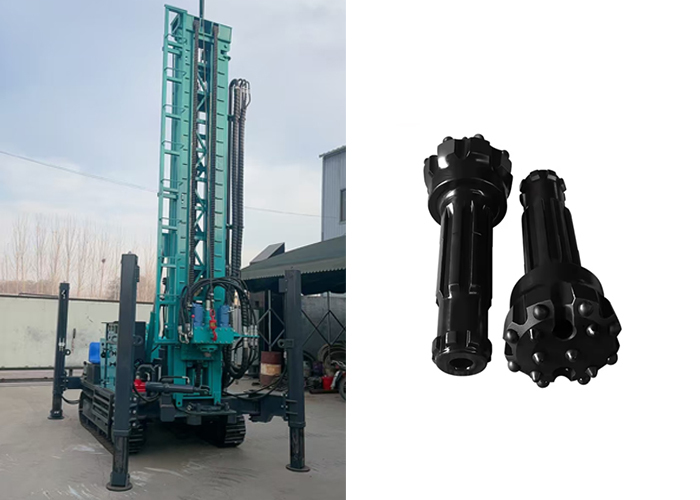

Product Images
