Tricone Drilling Bit Water Well Drill Bit with 5 Inch 6 Inch 8 Inch Diameter for Deep Underground Water Well Drilling

Large Image : Tricone Drilling Bit Water Well Drill Bit with 5 Inch 6 Inch 8 Inch Diameter for Deep Underground Water Well Drilling

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	Tricone Bit

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export package
Delivery Time:	5 days after advance payment
Payment Terms:	T/T,Western Union
Supply Ability:	20000pcs/month

Contact Now

Detailed Product Description

Product Name:	Tricone Water Well Drilling Bits	Machine Type:	Drilling Tool
Application:	Well Drilling	Bit Type:	Tricone Bit
Color:	Blue Or Gold ,red	Packing:	Wooden Box
Model Size:	130mm, 150mm, 180mm	MOQ:	1 PCS
Highlight:	5 inch tricone water well drill bits , 6 inch tricone drilling bits for wells , 8 inch deep underground drill bits

Tricone Drilling Bits for Water Well Drilling

High-performance tricone drilling bits available in 4-inch, 5-inch, and 6-inch diameters, designed for deep underground water well drilling applications.

Key Specifications

Attribute	Value
Product Name	Water well drilling bits
Machine Type	Drilling Tool
Application	Well Drilling
Bit type	Tricone Bits
Color	Blue, gold, or red
Packing	Wooden box
Model size	130mm, 150mm, 180mm
MOQ	1 PCS

Product Introduction

Engineered for high-speed penetration in soft to medium formations, these tricone drilling bits deliver maximum efficiency, durability, and cost-effectiveness - ideal for borehole drilling in rural communities, agricultural projects, and municipal water systems.

Technical Specifications

Model	Diameter Range	Recommended Formation	Type	Max Temp	MOQ
4 inch	101mm	Soft clay, alluvial	Welding/Integrated	150°C	1 pcs
6 inch	152mm	Sandstone, laterite	Welding/Integrated	180°C	1 pcs
8 inch	203mm	Medium hard rock	Welding/Integrated	200°C	1 pcs

Key Features & Benefits

Superior Drilling Performance

Premium PDC Cutters: Industrial-grade polycrystalline diamond compact cutters ensure fastest penetration rates in sedimentary formations
Optimized Hydraulics: Turboflow nozzle design prevents bit balling in clay-rich soils
Self-Sharpening Design: Maintains cutting efficiency throughout bit life

Specialized Engineering

Abrasion-Resistant Matrix: Formulated for sandstone & laterite soils
Corrosion Protection: Tungsten carbide coating resists saline groundwater
Reinforced Body: Withstands high torque in fractured basalt

Economic Advantages

30% Faster ROP than conventional roller cone bits
2-3x Longer Life - reduces replacement frequency
Low Maintenance - no moving parts to repair

Applications

Community water projects and emergency water relief drilling
Agricultural irrigation wells for smallholder and commercial farms
Municipal water systems and urban borehole drilling
Mine dewatering operations

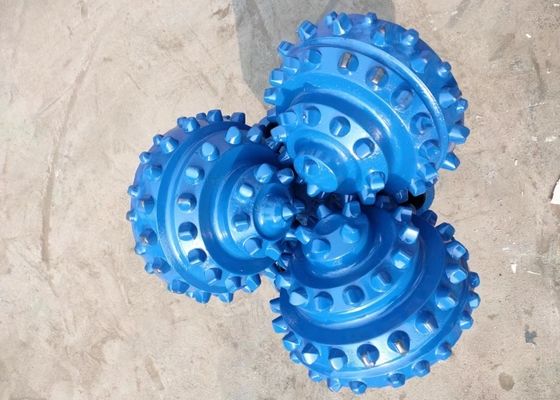

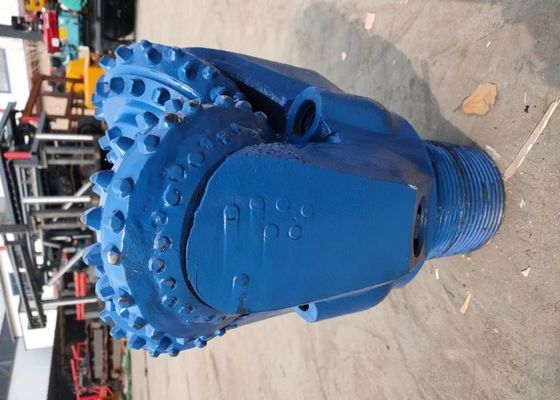

Product Images
