Water Well Borehole Tricone Drilling Bit Equipped With Portable or Industrial Machines

Large Image : Water Well Borehole Tricone Drilling Bit Equipped With Portable or Industrial Machines

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	Tricone Bit

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export package
Delivery Time:	5 days after advance payment
Payment Terms:	T/T,Western Union
Supply Ability:	20000pcs/month

Contact Now

Detailed Product Description

Product Name:	Tricone Water Well Drilling Bits	Machine Type:	Drilling Tool
Application:	Well Drilling	Bit Type:	Tricone Bit
Color:	Blue Or Gold ,red	Packing:	Wooden Box
Model Size:	130mm, 150mm, 180mm,200mm	MOQ:	1 PCS
Highlight:	water well tricone drilling bit , borehole drill bit for industrial machines , portable water well drill bit

Water Well Borehole Tricone Drilling Bit

High-performance drilling solution for portable and industrial machines

Premium tricone drilling bits available in 4-inch, 5-inch, and 6-inch diameters, engineered for deep underground water well drilling applications. Designed for maximum efficiency, durability, and cost-effectiveness in borehole drilling projects.

Key Specifications

Attribute	Value
Product Name	Water well drilling bits
Machine Type	Drilling Tool
Application	Well Drilling
Bit type	Tricone Bits
Color	Blue, gold, or red
Packing	Wooden box
Model size	130mm, 150mm, 180mm
MOQ	1 PCS

Technical Specifications

Parameters of Tricone Drilling Bit	Specifications
Nominal Diameter Range	8.00 - 12.00 inch
API Classification Grade	API 1 - 6
Main Body Material	4145H Alloy Steel
Maximum Recommended Weight on Bit (WOB)	25,000 lbf
Optimal Operating RPM Range	45 - 120 rpm
Bearing Type	Sealed Roller Bearing
Maximum Working Temperature	302 °F (150 °C)
Applicable Formation Type	Soft, Medium, Hard Formations

Key Features & Benefits

Superior Drilling Performance

Premium PDC Cutters: Industrial-grade polycrystalline diamond compact cutters ensure fastest penetration rates in sedimentary formations
Optimized Hydraulics: Turboflow nozzle design prevents bit balling in clay-rich soils
Self-Sharpening Design: Maintains cutting efficiency throughout bit life

Specialized Engineering

Abrasion-Resistant Matrix: Formulated for sandstone & laterite soils
Corrosion Protection: Tungsten carbide coating resists saline groundwater
Reinforced Body: Withstands high torque in fractured basalt

Economic Advantages

30% Faster ROP than conventional roller cone bits
2-3x Longer Life - reduces replacement frequency
Low Maintenance - no moving parts to repair

Applications

Community water projects and emergency water relief drilling
Agricultural irrigation wells for smallholder and commercial farms
Municipal water systems and urban borehole drilling
Mine dewatering operations

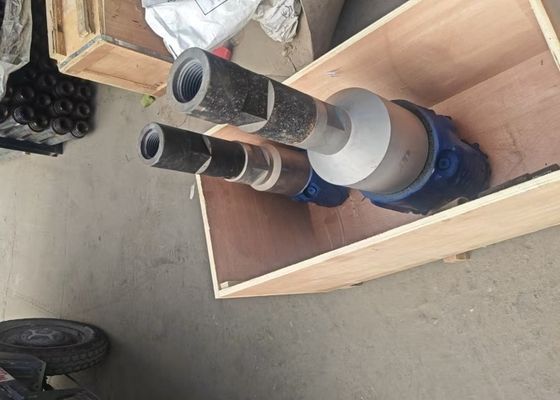

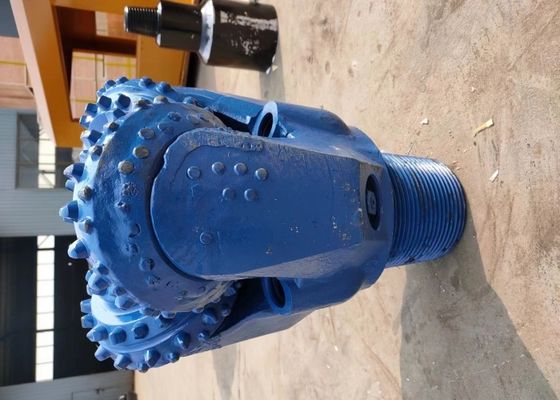

Product Images
