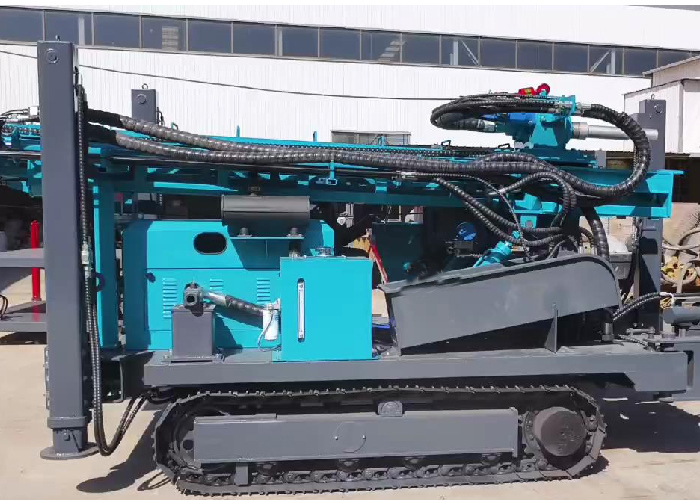

300m Crawler Hydraulic Rock Drilling Machine With High Performance

Large Image : 300m Crawler Hydraulic Rock Drilling Machine With High Performance

Product Details:

Place of Origin:	CHINA
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST-300

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD5000
Packaging Details:	Plastic film and Standard export wooden box
Delivery Time:	15-25days
Payment Terms:	L/C,T/T,D/A,Western Union,MoneyGram,Cash
Supply Ability:	500sets/year

Contact Now

Detailed Product Description

Drilling Depth:	300M	Drill Rod Diameter:	105-305MM
Maximum Speed Spindle:	1143r/min	High Leg Travel:	1.35m
Footage Efficiency:	10-35m/h	Walking Speed:	2.5km/h
Overall Dimension:	4.8m×1.9m×2.35m	Engine:	Yuchai 78KW
Highlight:	300m crawler hydraulic rock drill , high performance rock drilling machine , crawler water well drilling rig

300m Crawler Hydraulic Rock Drilling Machine With High Performance

Product Description

Designed for industrial, civil, and geothermal drilling applications, this high-performance rig excels in large-diameter deep-hole operations. With drilling capabilities ranging from 105mm to 305mm diameters and depths up to 300 meters, it adapts to diverse geological conditions including loose formations and bedrock. Powered by a robust Yuchai 78kW engine for reliable operation.

Key Features

Compact structure with small footprint for easy transportation and site deployment
30° gradeability for operation on challenging terrain and slopes
Versatile performance across loose layers, bedrock, and hard rock formations
Factory-direct pricing for cost efficiency
Professional technical support team available
Powered by reliable Yuchai 78KW diesel engine

Technical Specifications

Attribute	Specification
Max. Drilling Depth	300 m
Hole Diameter Range	105 - 305 mm
Drilling Method	Top Drive Hydraulic Rotation
Footage Efficiency	10 - 35 m/h
Max. Rotation Torque	8900 N.m
Max. Hoisting Force	22 T
Engine Power	Yuchai 78 KW Diesel
Travel Speed	2.5 km/h
Gradeability	30 °
Operating Air Pressure	1.25 - 3.5 MPa
