100/200/300M Water Well Tractor Mounted Drilling Machine To Africa

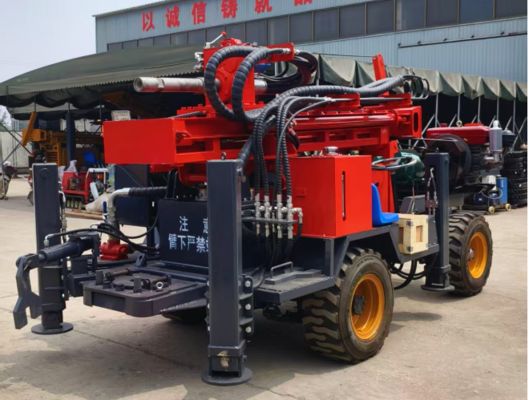

Large Image : 100/200/300M Water Well Tractor Mounted Drilling Machine To Africa

Product Details:

Place of Origin:	CHINA
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST-300-TIRE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD5000-10000
Packaging Details:	Plastic film and Standard export wooden box
Delivery Time:	15-25days
Payment Terms:	L/C,T/T,D/A,Western Union,MoneyGram,Cash
Supply Ability:	500sets/year

Contact Now

Detailed Product Description

Overall Dimension:	4.8m×1.9m×2.35m	Adaptive Conditions:	Loose Layer And Bedrock
Drilling Hole Diameter:	105-305mm	Working Wind Pressure:	1.25-3.5Mpa
Axial Pressure:	4T	Lifting Force:	22T
Maximum Rotation Speed:	85/170r/min	Lifting Force Of Small Auxiliary Winch:	1.2T
Highlight:	tractor mounted water well drilling machine , 300M water well drilling rig , Africa water well drilling equipment

100/200/300M Water Well Tractor Mounted Drilling Machine To Africa

Product Overview

The ST-300 multifunctional tire-type water well drill rig is a new, efficient, and multifunctional fully hydraulic drill rig. It is primarily designed for various deep hole rock drilling applications including water wells, monitoring wells, geothermal air conditioning holes, hydropower cofferdam grouting holes, dam anti-seepage grouting holes, foundation reinforcement grouting holes, open-pit mining, anchoring, and national defense projects.

Key Features

Drilling speeds up to 35 meters per hour significantly shorten project cycles and reduce overall costs
Low-failure design and superior after-sales service maximize return on investment
Lower energy consumption and higher fuel efficiency compared to similar equipment
Excellent drilling efficiency combined with low maintenance costs delivers lower cost per meter drilled
Rugged design reduces frequency of spare parts replacement, lowering long-term operating costs

Technical Specifications

Attribute	Specification
Weight	8 T
Transport Length	4.8 m
Transport Width	1.9 m
Transport Height	2.35 m
Drill Pipe Diameter	89 mm
Drill Pipe Length	6 m
Optional Drilling Mode	DTH or Mud Drilling
Chassis Type	Crawler Mounted
