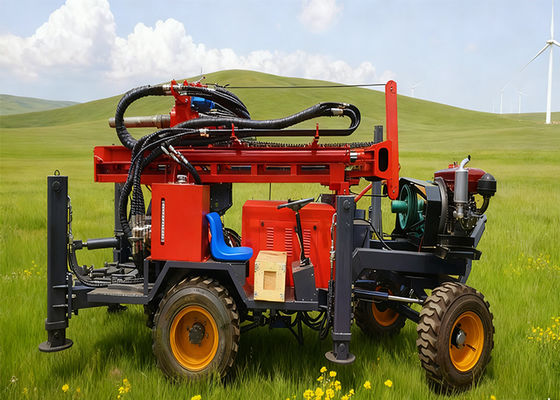

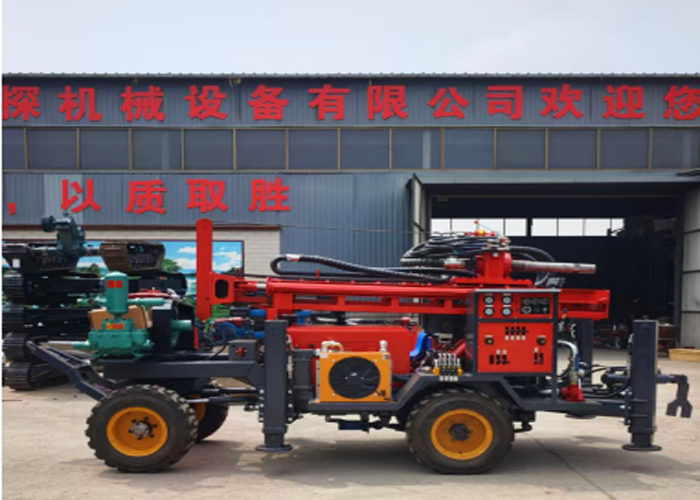

Tire-mounted Self-propelled Automatic Borewell Machine In Mountainous Areas

Tire-mounted Self-propelled Automatic Borewell Machine for Mountainous Areas

Product Description

The ST series well drilling rig is a lightweight, high-efficiency multi-functional hole-drilling equipment designed for water wells, irrigation wells, geothermal wells, and other applications. Its specialized design makes it particularly effective for water conservancy projects in mountainous areas and rock formations.

ST300 Water Well Drill Rig Advantages

• Highly efficient hydraulic top drive system for smooth, direct power transmission
• Powerful 78 kW Yuchai diesel engine delivers reliable performance in complex conditions
• Maximum output torque of 8,900 Nm for hard rock formation drilling
• Optimized hydraulic system reduces energy consumption while increasing efficiency
• Innovative power head design with two-speed continuously variable transmission
• Main winch lifting capacity of 22 tons for safe handling of heavy drilling tools

Technical Specifications

Attribute	Specification
Max. Hoisting Force	22 T
Hoisting Speed	20 m/min
Max. Rotation Torque	8,900 N.m
Rotation Speed Range	85 / 170 r/min
Travel Speed	2.5 km/h
Gradeability	30 °
Fast Forward Speed	40 m/min
Auxiliary Winch Capacity	1.2 T
High Leg Travel	1.35 m

Delivery and After-Sales Service

• Delivery Time: 7-15 business days after order (custom products may vary)
• Shipping Options: International express (DHL/FedEx/UPS) or ocean freight (≥1 CBM)
• Packaging: Export-standard with cardboard and foam/wooden reinforcement
• Inspection: Required within 3 business days of receipt
• Force Majeure: Notification provided for uncontrollable delays
