10-35m/h Footage Efficiency Drilling Equipment For Water Well

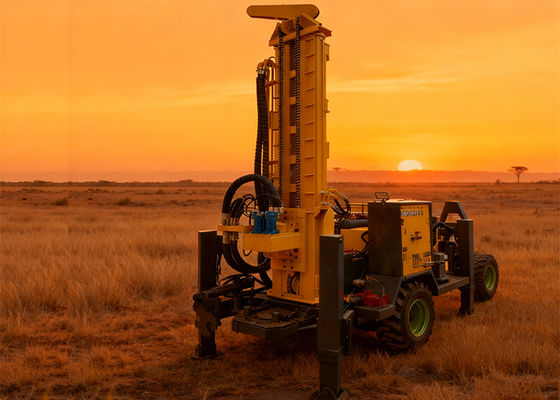

Large Image : 10-35m/h Footage Efficiency Drilling Equipment For Water Well

Product Details:

Place of Origin:	CHINA
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST-300-TIRE

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Plastic film and Standard export wooden box
Delivery Time:	15-25days
Payment Terms:	L/C,T/T,D/A,Western Union,MoneyGram,Cash
Supply Ability:	500sets/year

Contact Now

Detailed Product Description

Drilling Diameter:	105-305mm	Walking Speed:	2.5km/h
Drilling Rods:	Drilling Rods	Maximum Turning Torque:	8900
Maximum Rotation Speed:	85/170r/min	Overall Dimension:	4.8m×1.9m×2.35m
Adaptive Conditions:	Loose Layer And Bedrock	Engine:	Yuchai 78KW
Highlight:	water well drilling rig 10-35m/h , high efficiency water well drill , portable water well drilling equipment

10-35m/h Footage Efficiency Drilling Equipment For Water Well

Product Description

The ST series well drilling rig is a lightweight, efficient, and versatile drilling device designed for water wells, irrigation wells, geothermal wells, and air holes. Its compact design makes it particularly suitable for water-related engineering projects in mountainous regions and rock formations.

Key Features

Crawler-type chassis design for flexible mobility and easy transfers
Integrated control system with simple operation and organized layout
Automatic rod change function reduces auxiliary time and increases drilling efficiency
Compact design for easy transportation and quick deployment
Dual-function capability with both down-the-hole hammer and mud drilling modes
Robust construction using high-quality materials for extended service life
Key components from internationally renowned brands for reliability

Technical Specifications

Attribute	Specification
Max. Drilling Depth	300 m
Hole Diameter Range	105 - 305 mm
Drilling Method	Top Drive Hydraulic Rotation
Compatible Methods	DTH Hammer / Mud Drilling
Engine Power	Yuchai 78 KW Diesel
Operating Air Pressure	1.25 - 3.5 MPa
Air Consumption	16 - 55 m³/min
Feed Pressure	4 T
Footage Efficiency	10 - 35 m/h
Adaptive Geology	Loose Layer & Bedrock
