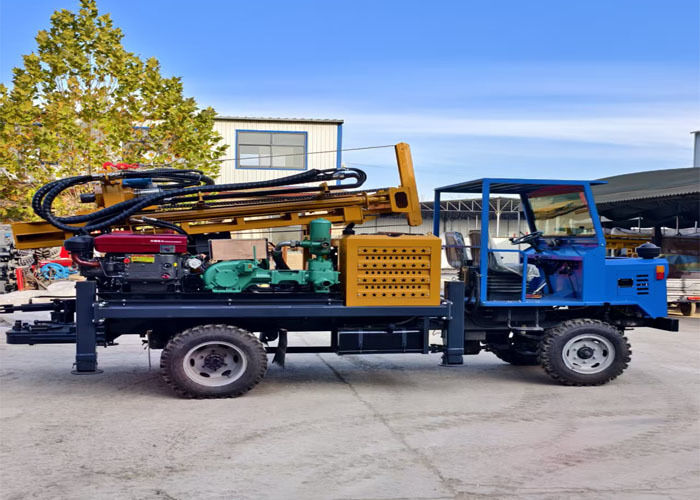

200m Deep Tire Water Well Drilling Rig With 300mm Diameter

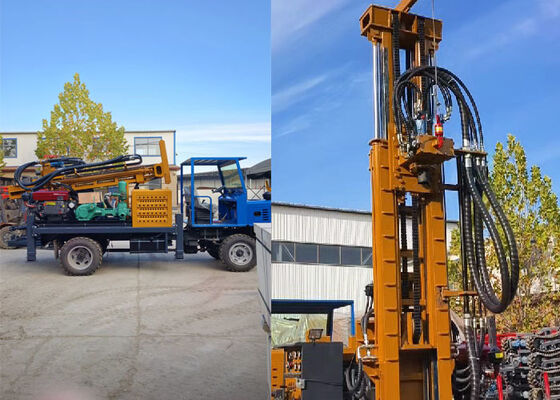

Large Image : 200m Deep Tire Water Well Drilling Rig With 300mm Diameter

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST200s

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	5-8 workday
Payment Terms:	T/T,Western Union
Supply Ability:	500set

Contact Now

Detailed Product Description

Drilling Hole Diameter:	105-300mm	Type:	Rotary Drilling Rig
Use:	Water Well	Drilling Depth:	Max.200m
Warranty:	1 Year	Core Components:	Motor, Pump, Engine
Key Selling Points:	High Working Efficiency	Video Outgoing-inspection:	Provided
Fast Fonwarding Speed:	5900	Rotary Speed:	30/120r/min
Highlight:	200m deep pneumatic drilling rig , 300mm diameter water well drill , pneumatic tire drilling rig

ST200 Water Well Drilling Rig - 200m Depth with 300mm Diameter

The ST200 drilling rig represents advanced engineering in water well drilling technology, combining a high-performance drilling machine with a four-wheel drive vehicle for exceptional mobility and operational efficiency.

This versatile water well drilling rig supports both air compressor and mud pump drilling methods, enabling large borehole capabilities and rapid drilling depths to meet diverse drilling requirements across various applications.

Technical Specifications

Product Name	ST200 Water Well Drilling Rig
Maximum Drilling Depth	200m
Drilling Method	Air compressor or mud pump
Drilling Diameter	105-300mm
Air Pressure	1.25-3.5Mpa
Air Consumption	16-55m³/min
Moving Speed	21 km/h
Dimensions	4.5m × 1.8m × 2.1m
Main Shaft Pressure	4T

Key Features & Benefits

4T axial pressure ensures superior drilling verticality and exceptional hole quality
3m long drill rod with 76mm recommended diameter optimizes drilling efficiency and operational stability
1T auxiliary winch lifting force enhances convenience for auxiliary operations
1m high outrigger travel provides stable support during drilling operations
Compact footprint (4.5m × 1.8m × 2.1m) minimizes space requirements
Four-wheel drive vehicle integration enables rapid travel between sites
Dual drilling method support (air compressor and mud pump) for versatile applications
