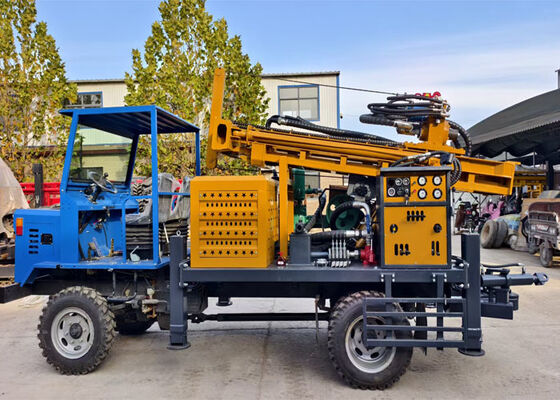

18T Lifting Force Heavy Duty Rock Drilling Rig Suitable For Bedrock Drilling

Large Image : 18T Lifting Force Heavy Duty Rock Drilling Rig Suitable For Bedrock Drilling

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST200s

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	5-8 workday
Payment Terms:	T/T,Western Union
Supply Ability:	500set

Contact Now

Detailed Product Description

Type:	Rotary Drilling Rig	Use:	Water Well
Core Components:	Motor, Pump, Engine	Key Selling Points:	High Working Efficiency
Video Outgoing-inspection:	Provided	Fast Fonwarding Speed:	5900
Rotary Speed:	30/120r/min	Trade Methods:	DDP CIF DAP Etc.
Transportation Method:	Sea Freight	Sales Regions:	Southeast Asia, Africa And Other Countries And Regions
Highlight:	18T heavy duty rock drilling rig , bedrock drilling pneumatic rig , high lifting force drilling rig

18T Lifting Force Heavy Duty Rock Drilling Rig - Suitable For Bedrock Drilling

The ST200s water well drilling rig is a high-performance solution for industrial, civil, and geothermal drilling applications. With a maximum drilling depth of 200 meters and diameter range of 105-300mm, it excels in both loose layers and bedrock formations. Powered by a 65KW Xidong 4-cylinder engine, it delivers efficient drilling speeds of 10-35m/h with strong 18T lifting force and 20m/min fast lifting speed.

Technical Specifications

Country of Origin	Hebei, China
Drilling Method	Air compressor or mud pump
Walking Style	Four-wheel drive vehicle
Drilling Diameter	105-300mm
Drilling Depth	0-200m / 656 feet
Air Consumption	16-55m³/min
Moving Speed	21 km/h
Overall Size	4.5m × 1.8m × 2.1m

Advanced Features

Equipped with hydraulic rotary top drive and compatible with medium/high air pressure hammers, the ST200s supports both DTH (Down-The-Hole) and mud drilling methods. Its 4WD design, 21° climbing capacity, and 5.5T lightweight body ensure excellent mobility and easy transshipment. Optional accessories including mud pumps and generators enhance operational versatility for global drilling projects.

Key Benefits

Professional technical team provides customized drilling solutions
Comprehensive after-sales system ensures timely repair and maintenance
Ample spare parts supply prevents project delays
Advanced production equipment ensures high precision and consistency
Experienced assembly team conducts rigorous whole-machine debugging
Free operation training for quick and easy equipment operation
Direct manufacturer supply offers better value and worry-free service

Product Gallery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

18T Lifting Force Heavy Duty Rock Drilling Rig Suitable For Bedrock Drilling
