200 Meters Depth Pneumatic Water Borehole Drilling Machine
High-performance, heavy-duty drilling equipment designed for water well drilling projects up to 200 meters depth. Features large-power engine and advanced pneumatic system for efficient operation in various geological conditions.
Technical Specifications
| Parameter |
Specification |
| Drilling Depth |
Max. 200 Meters |
| Drilling Diameter |
150-300 mm (Customizable) |
| Power Type |
Pneumatic (Air-Compressed) |
| Engine Model |
Diesel Engine |
| Engine Power |
30-60 HP (Customizable) |
| Air Compressor Displacement |
0.8-2.5 m³/min |
| Drilling Method |
Rotary Drilling + Pneumatic DTH Hammer Drilling |
| Suitable Stratum |
Soil, Sand, Gravel, Medium-Hard Rock |
| Overall Dimensions (L*W*H) |
3500*1800*2200 mm (Approx.) |
| Net Weight |
1800-3500 kg (Depends on Configuration) |
| Fuel Tank Capacity |
50-100 L |
Performance Features
- Large Power & High Efficiency: High-quality diesel engine with strong power output, achieving drilling speeds 2-3 times faster than traditional machines
- Deep Drilling Capacity: Optimized structure and high-torque transmission system for 200-meter depth capability
- Strong Stratum Adaptability: Handles complex geological conditions including soil, sand, gravel, and medium-hard rock
- Durable & Reliable: High-strength materials with excellent wear and corrosion resistance for long service life
- Easy Operation & Maintenance: User-friendly design with simple operation steps and convenient maintenance points
- Safe & Stable: Multiple safety protection devices and stable chassis design with adjustable support legs
Applications
- Rural and urban water supply projects
- Agricultural irrigation systems
- Mining industry water supply and exploration
- Geological survey sampling
- Construction site dewatering
- Environmental groundwater monitoring

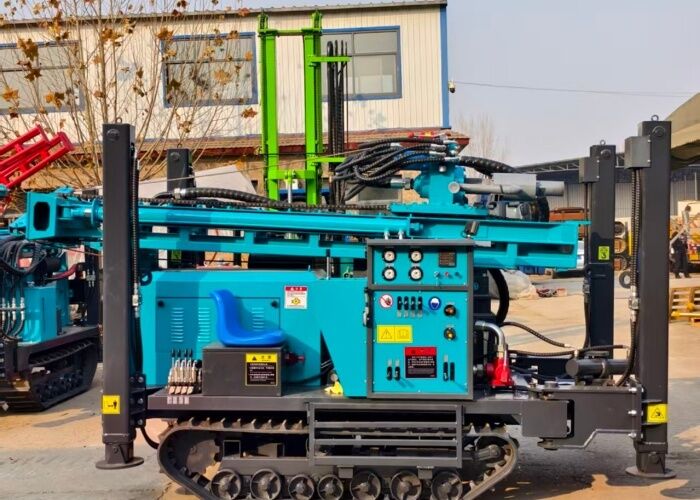

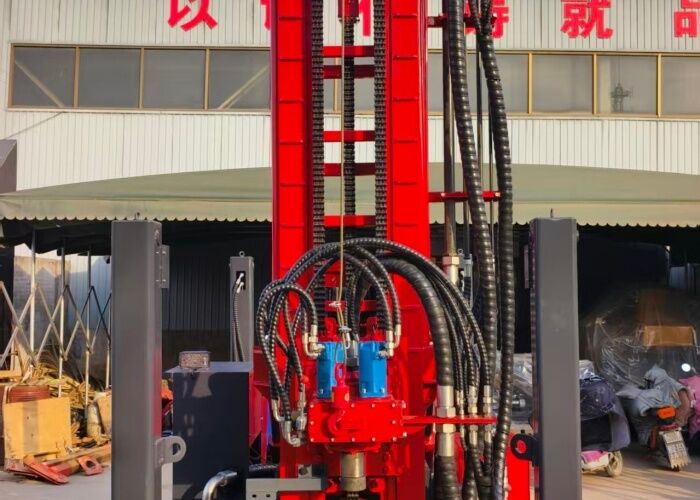

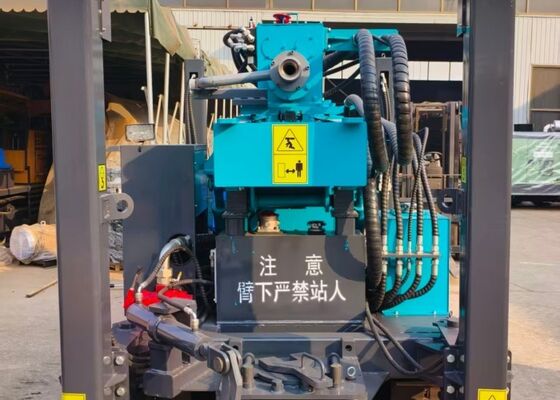

Product Images
Order Information
Minimum Order Quantity: 1 Set
Payment Terms: T/T (30% Advance, 70% Balance Before Delivery)
Warranty: 1 Year (Wearing Parts Excluded)
Certifications: CE, ISO9001, SGS Available
Samples: Available (Sample and Shipping Fees Borne by Buyer)
Packaging & Shipping
Wooden case packaging with waterproof and shockproof protection. Supports sea, air, and land transportation with delivery within 7-15 working days after advance payment.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
