High-Efficiency 180 Meters Water Borehole Drilling Rig - Energy-Saving Project Solutions

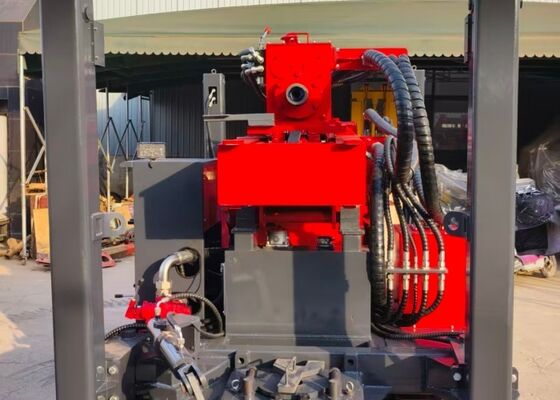

Large Image : High-Efficiency 180 Meters Water Borehole Drilling Rig - Energy-Saving Project Solutions

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	ST 200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 set/year

Contact Now

Detailed Product Description

Product Name:	ST 200 Large Pneumatic Drilling Rig	Drilling Rod Diameter:	76mm,89mm
Drilling Diameter:	105-300mm	Drilling Method:	DTH Drilling
Footage Efficiency:	10-35m/h	Air Consumption:	16-55m³/min
Dimension:	3.51.72m	Lifting Force:	12 T
Highlight:	180 meters water borehole drilling rig , energy-saving pneumatic drilling rig , high-efficiency borehole drilling project solutions

High-Efficiency 180 Meters Water Borehole Drilling Rig

Energy-Saving Project Solutions for Complex Drilling Environments

Product Overview

Our 200m Depth Pneumatic Water Well Drilling Rig redefines efficiency in water borehole projects with its integrated "energy-saving engine + intelligent pneumatic control system" design. Unlike ordinary drilling machines, it achieves precise power output adjustment according to stratum hardness, minimizing fuel consumption while ensuring strong penetration.

Core Technical Specifications

Parameter	Specification
Max Drilling Depth	200 Meters (Stable Drilling at Full Depth)
Drilling Diameter Range	200-550 mm (Wider Range for Large-Capacity Wells)
Power System	Intelligent Pneumatic System + Turbocharged Diesel Engine
Optional Engine Brands	Yuchai/Xichai/Xidong/Yunei (Genuine Imported Core Components)
Rated Engine Power	40-75 HP (High-Power Version Optional for Hard Rock Strata)
Air Compressor Configuration	1.2-3.0 m³/min High-Efficiency Screw Air Compressor
Drilling Technology	Intelligent Variable-Speed Rotary Drilling + High-Frequency Pneumatic DTH Hammer
Stratum Adaptability	Soil, Sand, Gravel, Compacted Sandstone, Medium-Hard Granite
Overall Dimensions (LWH)	320016002100 mm (Compact Design for Narrow Sites)
Net Weight	2200 kg (Reinforced Chassis for Higher Stability)
Fuel Tank & Energy Saving	120 L Large-Capacity Fuel Tank + 15-20% Fuel Saving Rate
Drilling Precision	Hole Deviation ≤2‰ (Higher Precision Than Industry Standard)
Working Temperature Range	-20℃ ~ 50℃ (All-Weather Adaptability)

Key Advantages

Intelligent Energy-Saving System: Variable-displacement air compressor and electronic fuel injection engine automatically adjust power output based on stratum resistance, saving 15-20% fuel compared to traditional models.
200m Deep Drilling with High Precision: Optimized gearbox and high-torque drill head ensure stable drilling at full depth with minimal deviation.
Stratum-Adaptive Pneumatic Technology: Upgraded DTH hammer with adjustable impact frequency adapts to different stratum types without manual bit replacement.
Portable & Easy-to-Assemble Design: Modular components (≤300kg each) enable easy transport to remote areas and quick assembly by 2-3 workers.
Humanized Operation & Remote Monitoring: Ergonomic console with digital display and optional remote monitoring via mobile phone.
All-Weather Durability: Anti-rust, anti-corrosion treatment and sealed electrical system for reliable operation in extreme conditions.

Application Scenarios

Rural Domestic Water Supply: Small-diameter configuration with lightweight modules and low noise design
Large-Scale Agricultural Irrigation: Large-diameter + high-power engine for fast drilling speed
Mining Water Supply: Anti-corrosion drill pipe + high-pressure air compressor for harsh environments
Geological Exploration: Precision drilling with depth calibration for accurate sampling
Construction Dewatering: High-frequency impact configuration for complex strata

Packaging & Shipping

Wooden case packaging (waterproof, shockproof) ensures machine protection during transportation. Spare parts are packed separately in cartons. We support sea shipping, air shipping, and land transportation with delivery in 7-15 working days after advance payment.

Order Information

Minimum Order Quantity: 1 Set
Payment Terms: T/T (30% Advance, 70% Balance Before Delivery)
Warranty Period: 1 Year (Wearing Parts Excluded)
Certifications: CE, ISO9001, SGS available upon request
Samples: Available with sample fee and shipping borne by buyer

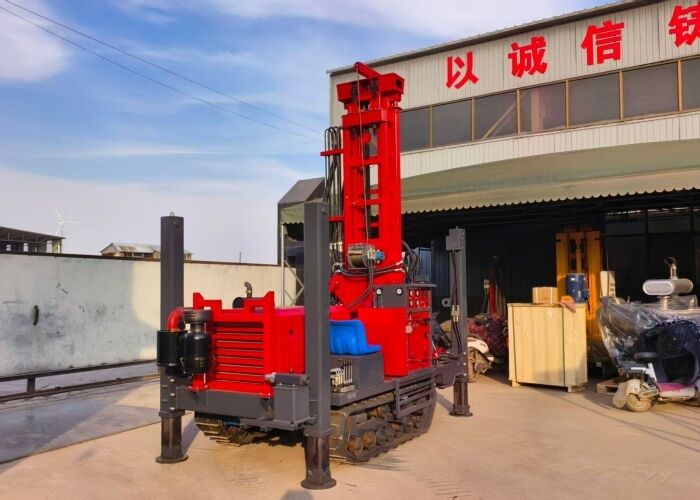

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
