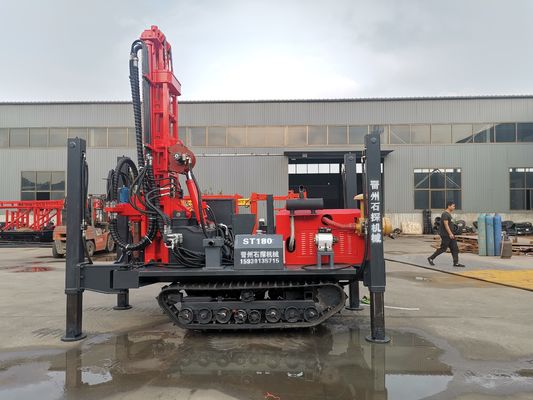

Pneumatic DTH Drilling Equipment for Water Borewell Underground Projects
Customizable Pneumatic Water Well Drill Rig 200m - Your Reliable Off-Grid Drilling Partner
As a factory with 15+ years of focus on off-grid drilling solutions, we combine rugged durability with flexible customization to serve global clients in agriculture, rural water supply, and geological exploration. No electricity? Complex terrain? Strict environmental rules? We've got you covered. Read on to discover why 500+ overseas partners choose our drill rigs.
Technical Specifications (Customizable)
| Parameter Item |
Standard Specification |
Customization Range |
| Drilling Depth |
Max. 200m |
150m-300m |
| Drilling Diameter |
50-200mm |
40-300mm |
| Drilling Method |
Percussion + Rotary Drilling |
Customizable for specific stratum |
| Drive Type |
Pneumatic |
Pneumatic-Hydraulic Hybrid (Optional) |
| Air Pressure Requirement |
0.6-0.8MPa |
0.5-1.0MPa |
| Air Consumption |
1.2-2.0m³/min |
1.0-3.0m³/min |
| Drilling Speed |
0.8-2.5m/min |
Adjustable based on configuration |
| Overall Dimension (L*W*H) |
2200*850*1600mm |
Customizable for transportation |
| Net Weight |
850-1200kg |
700-1500kg |
| Power Supply |
No Electricity Required |
Optional Electric Auxiliary System |
Why Choose Us as Your Factory Partner?
- Direct Factory Price: No middlemen, saving 15-20% of your procurement cost.
- Fast Delivery: 7-15 days for standard orders, 20 days for customized orders.
- Multilingual Support: English, Spanish, French, Arabic technical team available 24/7.
- Free Spare Parts: 1 set of key spare parts included in each order, ensuring uninterrupted operation.
Ready to get a customized drilling solution for your project? Contact us now for a free quote and technical proposal! We respond within 2 hours during working hours.
What Makes Us Different? 4 Core Differentiators
100% Off-Grid Ready, No Electricity Needed
Unlike electric drill rigs that rely on power supply, our pneumatic-driven rig operates independently with 0.6-0.8MPa air pressure. Perfect for remote rural areas, deserts, and mountainous regions where electricity is unavailable. It's your ultimate solution for emergency water supply and agricultural irrigation projects in off-grid locations.
Stratum-Adaptive Design with Customizable Drilling Kits
We don't just sell a drill rig—we provide tailored drilling solutions. Based on your target stratum (soil, sand, gravel, soft rock), we offer customized drill bits, rods, and air compressors matching kits. The rig's adjustable drilling speed (0.8-2.5m/min) and diameter (50-200mm) ensure efficient drilling in diverse geological conditions, reducing 30% of rework compared to standard rigs.
Ultra-Durable & Low-Maintenance for Harsh Environments
All key components (pneumatic motor, drill tower, gearbox) are made of high-strength manganese steel and undergo 3 rounds of corrosion resistance testing. Designed to withstand extreme temperatures (-20℃ to 60℃) and dusty conditions. Daily maintenance takes only 15 minutes—just regular lubrication and air filter cleaning, saving you 50% of maintenance time and costs.
One-Stop Service from Factory to Project Site
We offer more than equipment: free technical consultation, customized configuration plan, 24/7 after-sales support (engineers available for on-site service), and 2-year warranty for core parts. We've helped clients from 30+ countries (Kenya, Australia, Brazil, etc.) complete water well projects, with a 98% repeat purchase rate.
Frequently Asked Questions
What is the brand name of the Pneumatic Borewell Machine?
The brand name of the Pneumatic Borewell Machine is Shitan.
What is the model number of the Pneumatic Borewell Machine?
The model number of the Pneumatic Borewell Machine is ST-1000.
Where is the Pneumatic Borewell Machine manufactured?
The Pneumatic Borewell Machine is manufactured in Jinzhou, China.
How long does it usually take to drill a borewell?
It usually drills 20-40 meters per hour, one day one borehole.
Is the Pneumatic Borewell Machine suitable for hard soil?
Yes, the Pneumatic Borewell Machine is suitable for all soil layers, especially rocky stone hard areas.
Jinzhou Shitan Machinery Co., Ltd. is a company specializing in the production and processing of pneumatic water well drilling rig, crawler drilling rig, various crawler chassis, mud pumps, transport vehicles and etc. It is one of the excellent manufacturers of similar products in North China with strong technical force, modern production equipment and complete QC system.
Air compressor: Kaishan air compressor, Zhigao air compressor, liufuda air compressor, Atlas Copco, Youli etc
Hydraulic tower, folding tower, 30 impact drill track chassis, triangular tower and other specifications of track chassis can be customized.
Bw150, bw160, bw200, bw250 and other series mud pumps.
Drilling rig: xy-1/xy-1A/XY-2/gk180/gk200/gy150/gy200/ST30/ST50
Assembly: gearbox assembly, rotatory assembly, winch assembly, reducer assembly and pump body assembly of various drilling rigs.
Drilling tools: such as casing joint, casing coupling, drill pipe joint, casing core pipe, extractor, automatic drop hammer, sampler, wrench fork, pad fork, lock joint, alloy bit, composite bit, diamond bit and so on.

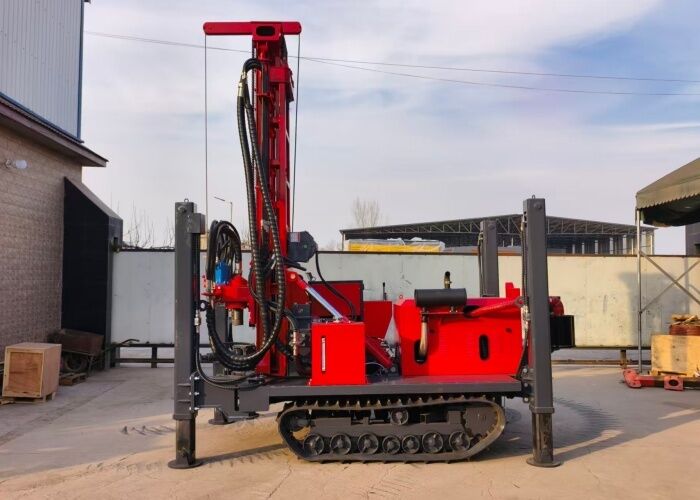

Product Images
