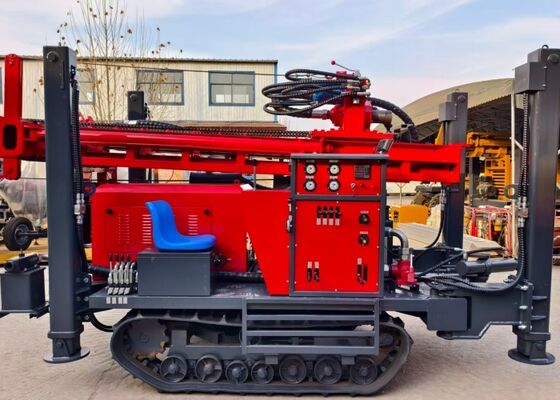

Underground Borehole 220 Meters Industrial Drilling Rig High Speed

Underground Borehole 220 Meters Industrial Drilling Rig High Speed
Underground Borehole 220 Meters Industrial Drilling Rig High Speed
video play

Large Image :  Underground Borehole 220 Meters Industrial Drilling Rig High Speed

Product Details:
Place of Origin: Jinzhou ,Hebei Province
Brand Name: Shitan
Certification: ISO
Model Number: ST 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Customzied Quotation list
Packaging Details: 1*20 FCL
Delivery Time: 7-10 days
Payment Terms: T/T,Western Union
Supply Ability: 2000 set/year
Contact Now
Detailed Product Description
Product Name: ST 200 Large Pneumatic Drilling Rig Walking Speed: 2.5km/h
Footage Efficiency: 10-35m/h Air Consumption: 16-55m³/min
Dimension: 3.5*1.7*2m Lifting Force: 12 T
Weight: 6000kg Drilling Rod Diameter: 76mm
Highlight:

220m industrial borehole drilling rig

,

large diameter pneumatic drilling rig

,

underground borehole drilling machine

ST 200 Pneumatic Water Well Drilling Rig
High-performance solution for efficient groundwater exploration and well construction. With advanced pneumatic technology, it excels in complex terrains like mountains and rock formations. Ideal for agricultural irrigation, civil water supply, geothermal exploration and mining auxiliary projects.
Key Features
Superior Drilling Capacity
Max drilling depth 200m, borehole diameter 75-300mm. Pneumatic DTH technology ensures fast rock-breaking and high efficiency.
Powerful & Energy-Efficient
Equipped with high-power diesel engine (Yunnei 73kW optional). Dual working modes (air compressor/mud pump) for multi-purpose drilling.
Exceptional Adaptability
Crawler chassis for stable movement on uneven terrain. Adjustable drilling angle (75°-90°) expands application scope.
Stable & Durable
High-strength steel structure with anti-corrosion and waterproof treatment, suitable for rainy conditions.
User-Friendly & Low Maintenance
Compact size for easy transport and setup. Simplified control system reduces operation difficulty; standardized components lower maintenance cost.
Technical Specifications
Model ST 200
Max Drilling Depth 200m
Borehole Diameter Range 75mm - 300mm
Drilling Angle 75° - 90°
Power Type Diesel Engine (Yunnei 73kW 4-cylinder optional)
Air Consumption 13 - 20 m³/min
Spindle Rotating Speed 64/128/287/557 r/min
Max. Single Line Lifting Capacity 2400kg
Drill Pipe Diameter 42/50/60mm
Machine Weight (Excl. Power) 1600-5800kg (config-dependent)
Overall Dimensions (L*W*H) 2750*950*1770mm or 3800*1800*2300mm (config-dependent)
Mud Pump Type BW 200 Double Cylinder Mud Pump
Application Scenarios
  • Agricultural irrigation well drilling
  • Residential & rural civil water supply wells
  • Geothermal well drilling
  • Mining auxiliary drilling (gas exploitation, CBM extraction)
  • Road construction & stonework blast holes
  • Hydrogeological exploration & engineering surveys
Competitive Advantages
  • Higher Efficiency: Pneumatic DTH technology speeds up rock-breaking, shortening project time
  • Strong Terrain Adaptability: Crawler design enables access to mountainous/remote areas
  • Reliable Quality: ISO 9001 certified, premium components ensure long service life and low failure rate
  • Versatile: Dual working modes and adjustable angle realize multi-purpose use
  • Professional After-Sales: 12-month warranty, overseas engineer service and timely spare parts supply
Manufacturer Information
Jinzhou City Shitan Machinery Equipment Co., Ltd. is a professional drilling equipment manufacturer with over 10 years of experience. We have a professional R&D team and advanced production facilities, providing high-quality solutions globally. Our products are exported to 30+ countries/regions, well-received for reliable quality and professional service.
Trading Terms
MOQ 1 set
Price Negotiable
Payment Terms T/T, Western Union
Delivery Time 7-10 days after payment
Packaging Standard export wooden case (or custom)
Supply Ability 2000 sets/year
Certification ISO 9001
Warranty 12 months
After-Sales Service Overseas engineer support, spare parts supply

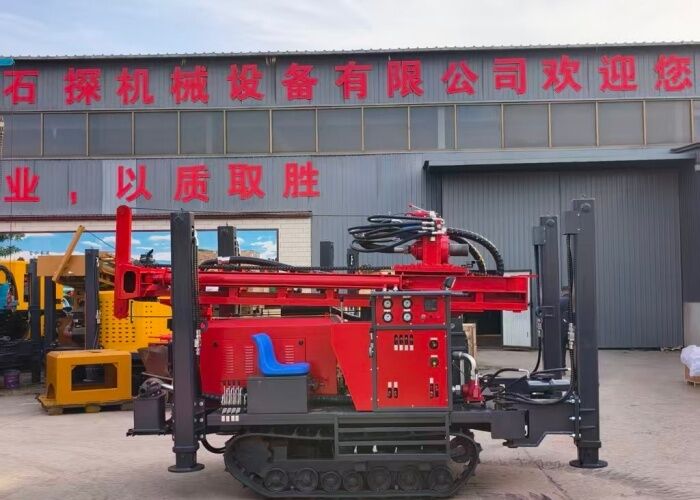

Product Images
Underground Borehole 220 Meters Industrial Drilling Rig High Speed 0 Underground Borehole 220 Meters Industrial Drilling Rig High Speed 1 Underground Borehole 220 Meters Industrial Drilling Rig High Speed 2 Underground Borehole 220 Meters Industrial Drilling Rig High Speed 3 Underground Borehole 220 Meters Industrial Drilling Rig High Speed 4 Underground Borehole 220 Meters Industrial Drilling Rig High Speed 5 Underground Borehole 220 Meters Industrial Drilling Rig High Speed 6
