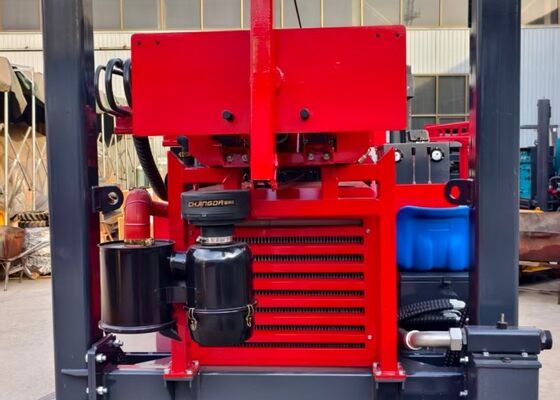

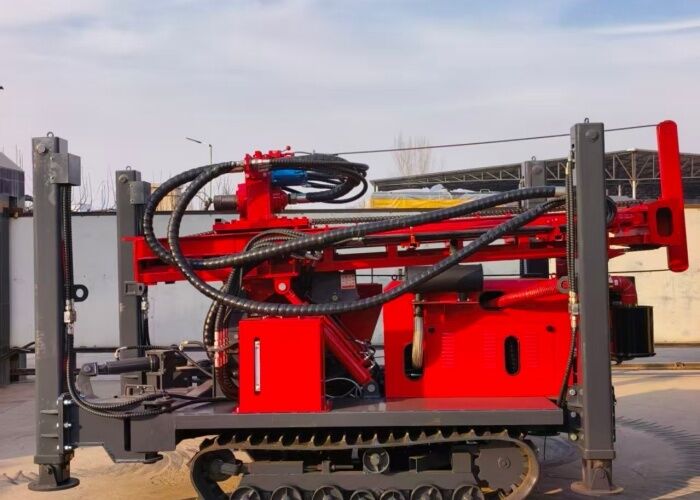

High-Power Hard Rock Drilling Equipment For Different Layers Boreholes

High-Power Hard Rock Drilling Equipment For Different Layers Boreholes
High-Power Hard Rock Drilling Equipment For Different Layers Boreholes
video play

Large Image :  High-Power Hard Rock Drilling Equipment For Different Layers Boreholes

Product Details:
Place of Origin: Jinzhou ,Hebei Province
Brand Name: Shitan
Certification: ISO
Model Number: ST 200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Customzied Quotation list
Packaging Details: 1*20 FCL
Delivery Time: 7-10 days
Payment Terms: T/T,Western Union
Supply Ability: 2000 set/year
Contact Now
Detailed Product Description
Product Name: ST 200 Large Pneumatic Drilling Rig Walking Speed: 2.5km/h
Footage Efficiency: 10-35m/h Air Consumption: 16-55m³/min
Dimension: 3.5*1.7*2m Lifting Force: 12 T
Weight: 6000kg Drilling Rod Diameter: 76mm
Highlight:

200 meters depth pneumatic drilling rig

,

large power borehole drilling machine

,

pneumatic water borehole drilling rig

200 Meters Depth Pneumatic Water Borehole Drilling Machine
High-performance, heavy-duty drilling equipment designed for water well drilling projects up to 200 meters depth. Features large-power engine and advanced pneumatic system for efficient operation in various geological conditions.
Technical Specifications
Drilling DepthMax. 200 Meters
Drilling Diameter150-300 mm (Customizable)
Power TypePneumatic (Air-Compressed)
Engine ModelDiesel Engine
Engine Power30-60 HP (Customizable)
Air Compressor Displacement0.8-2.5 m³/min
Drilling MethodRotary Drilling + Pneumatic DTH Hammer Drilling
Suitable StratumSoil, Sand, Gravel, Medium-Hard Rock
Overall Dimensions (L*W*H)3500*1800*2200 mm (Approx.)
Net Weight1800-3500 kg (Depends on Configuration)
Fuel Tank Capacity50-100 L
Performance Features
  • Large Power & High Efficiency: High-quality diesel engine with strong power output, achieving drilling speeds 2-3 times faster than traditional machines
  • Deep Drilling Capacity: Optimized structure and high-torque transmission system for 200-meter depth capability
  • Strong Stratum Adaptability: Handles complex geological conditions including soil, sand, gravel, and medium-hard rock
  • Durable & Reliable: High-strength materials with excellent wear and corrosion resistance for long service life
  • Easy Operation & Maintenance: User-friendly design with simple operation steps and convenient maintenance points
  • Safe & Stable: Multiple safety protection devices and stable chassis design with adjustable support legs
Applications
  • Rural and urban water supply projects
  • Agricultural irrigation systems
  • Mining industry water supply and exploration
  • Geological survey sampling
  • Construction site dewatering
  • Environmental groundwater monitoring
Product Images
High-Power Hard Rock Drilling Equipment For Different Layers Boreholes 0
High-Power Hard Rock Drilling Equipment For Different Layers Boreholes 1
High-Power Hard Rock Drilling Equipment For Different Layers Boreholes 2
High-Power Hard Rock Drilling Equipment For Different Layers Boreholes 3
High-Power Hard Rock Drilling Equipment For Different Layers Boreholes 4
High-Power Hard Rock Drilling Equipment For Different Layers Boreholes 5
High-Power Hard Rock Drilling Equipment For Different Layers Boreholes 6
Order Information
Minimum Order Quantity: 1 Set
Payment Terms: T/T (30% Advance, 70% Balance Before Delivery)
Warranty: 1 Year (Wearing Parts Excluded)
Certifications: CE, ISO9001, SGS Available
Samples: Available (Sample and Shipping Fees Borne by Buyer)
Packaging & Shipping
Wooden case packaging with waterproof and shockproof protection. Supports sea, air, and land transportation with delivery within 7-15 working days after advance payment.
