Deep Underground Pneumatic Rig High Efficiency for Global Large-Scale Drilling

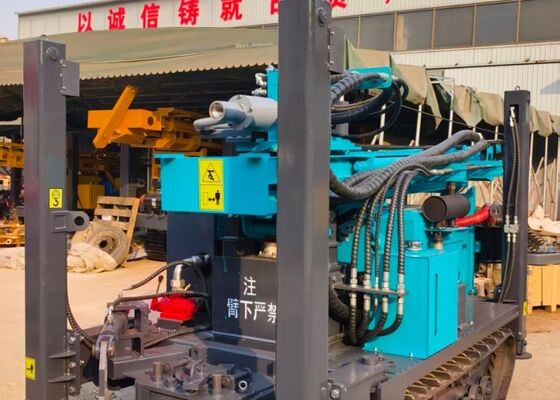

Large Image : Deep Underground Pneumatic Rig High Efficiency for Global Large-Scale Drilling

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	ST 260

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 set/year

Contact Now

Detailed Product Description

Product Name:	ST 260 Large Pneumatic Drilling Rig	Drilling Depth:	260 Meters
Drilling Hole Diameter:	305mm	Air Consumption:	16-55m³/min
Dimension:	41.72.2m	Lifting Force:	16 T
Weight:	6000kg	Drilling Rod Diameter:	76mm,89mm
Highlight:	Pneumatic earth drilling rig 260 meters , Large torque borehole drilling equipment , Water borehole pneumatic drilling machine

ST 260 Large Pneumatic Drilling Rig

High-Efficiency & Heavy-Duty Drilling Solution

Are you seeking a reliable, high-performance drilling rig for large-scale water borehole projects? The ST 260 Large Pneumatic Drilling Rig from Shitan Machinery delivers exceptional performance with a maximum drilling depth of 260 meters and robust 16-ton lifting force. This heavy-duty machine is engineered to tackle the toughest drilling conditions, providing consistent results for both commercial and industrial water well drilling applications.

Core Advantages

Exceptional Drilling Efficiency
Powerful & Stable Performance
Compact Design & High Maneuverability
Versatile Application Range

Technical Specifications

Product Name	ST 260 Large Pneumatic Drilling Rig
Brand	Shitan
Origin	Jinzhou, Hebei Province, China
Maximum Drilling Depth	260m
Walking Speed	2.5km/h
Footage Efficiency	10-35m/h
Air Consumption	16-55m³/min
Dimension (LWH)	4 * 1.7 * 2.2m
Lifting Force	16 T
Weight	6000kg
Drilling Rod Diameter	76mm
Working Wind Pressure	1.25-3.5 MPa
Drilling Hole Diameter	105-260mm
Climbing Speed	20 m/min

Why Choose Shitan ST 260 Pneumatic Drilling Rig?

Shitan has been a trusted name in the drilling industry for years, dedicated to producing high-quality, durable drilling equipment. The ST 260 is manufactured in our state-of-the-art facility in Jinzhou, Hebei Province, adhering to strict quality control standards to ensure reliability and longevity.
