260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia

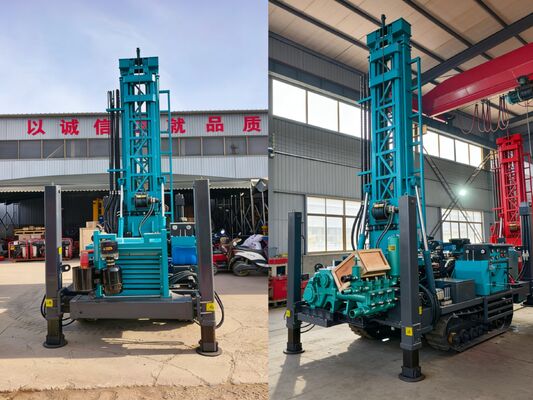

Large Image : 260m Deep / 73KW Drilling Rig for Geothermal / Civil Drilling Southeast Asia

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST260

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	5-8 workday
Payment Terms:	T/T,Western Union
Supply Ability:	500set

Contact Now

Detailed Product Description

Type:	Rotary Drilling Rig	Warranty:	1 Year
Key Selling Points:	High Working Efficiency	Video Outgoing-inspection:	Provided
Drilling Diameter:	105-300mm	Rotary Speed:	30/120r/min
Transportation Method:	Sea Freight	Max Drilling Depth:	200m
Rod Diamete:	76/89mm	Power:	65kw
Maximum Rotation Speed:	85/170r/min
Highlight:	260m deep pneumatic drilling rig , 73KW geothermal drilling rig , civil drilling rig Southeast Asia

260m Deep / 73KW Drilling Rig for Geothermal & Civil Drilling

This high-performance drilling rig features a powerful 73KW engine capable of reaching maximum drilling depths of 260 meters with hole diameters ranging from 105-305mm. Designed specifically for Southeast Asian geological conditions, it offers versatile drilling capabilities for both loose strata and bedrock formations. With an impressive penetration rate of 10-35m/h, 30° climbing angle, and 2.5km/h travel speed, this equipment provides exceptional mobility for challenging mountainous terrain and construction sites.

Technical Specifications

Type	Water Well Drilling Rig
Usage	Agricultural/Industrial/Construction Water
Drilling Diameter Range	Maximum 300mm
Maximum Drilling Depth	0-260 meters
Place of Origin	Hebei, China
Engine Power	73KW
Dimensions	4m × 1.8m × 2.3m
Weight	6T

Advanced Features

Three drilling methods: top drive hydraulic rotation, down the hole impact, and mud drilling for superior geological adaptability
Working wind pressure of 1.25-3.5Mpa suitable for both loose layers and bedrock formations
Footage efficiency of 10-35m/h, significantly outperforming similar equipment
Maximum turning torque of 6900N*m providing ample drilling power
18T lifting force with 1.2T auxiliary winch for efficient heavy operations
Walking speed of 2.5km/h and 30° climbing angle enabling flexible mountain movement

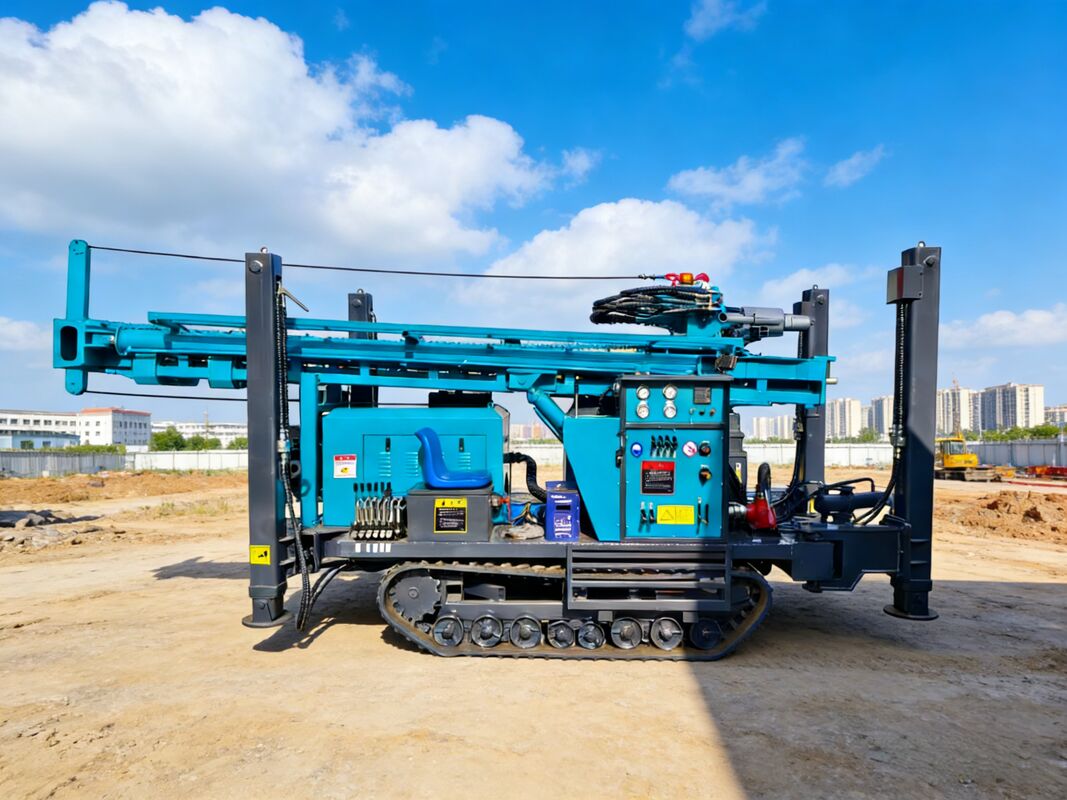

Product Gallery

Ideal for industrial, civil engineering, and geothermal drilling applications across Southeast Asia. This versatile rig combines powerful performance with exceptional mobility for challenging terrain operations.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
