High Efficiency Drilling Rig 10-35m/h Footage For Indonesia/Vietnam

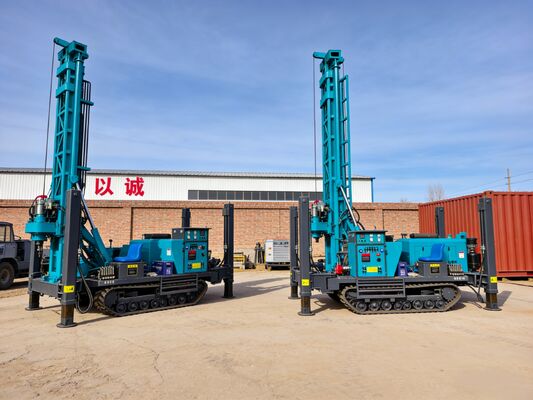

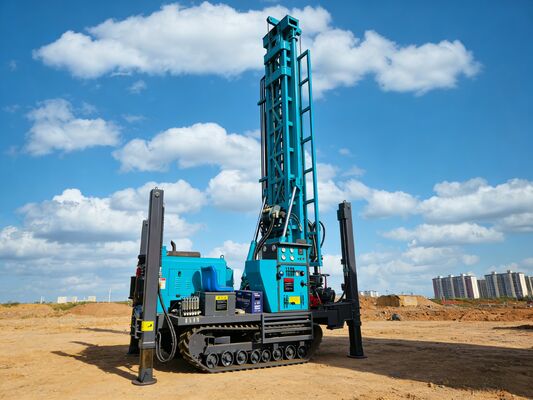

Large Image : High Efficiency Drilling Rig 10-35m/h Footage For Indonesia/Vietnam

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST200s

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	7-15 workday
Payment Terms:	T/T,Western Union
Supply Ability:	500set

Contact Now

Detailed Product Description

Type:	Water Well Rotary Drilling Rig	Max Drilling Depth:	0-260m
Key Selling Points:	High Working Efficiency	Warranty:	1 Year
Drilling Diameter:	105-300mm	Rotary Speed:	30/120r/min
Video Outgoing-inspection:	Provided	Transportation Method:	Sea Freight
Highlight:	High efficiency pneumatic drilling rig , 10-35m/h footage drilling rig , Pneumatic drilling rig for Indonesia

High Efficiency Drilling Rig 10-35m/h Footage For Indonesia/Vietnam

This high-efficiency drilling rig is engineered for Southeast Asia construction projects, covering industrial and civilian applications including geothermal drilling. With a working air pressure of 1.25-3.5Mpa, it delivers fast footage rates and flexible mobility. The rig features a 73KW engine optimized for Southeast Asian power environments, easy procurement of drill pipe accessories, and a 35m leg stroke that adapts to complex terrain, making it a cost-effective solution for regional drilling engineering.

Technical Specifications

Footage Efficiency	10-35m/h
Climbing Degree	30°
Maximum Rotation Speed	85/170r/min
Drill Pipe Diameter	76mm
Maximum Turning Torque	5900 N·m
Overall Dimension	3.41.82.3m
Adaptive Conditions	Loose layer and bedrock
Working Wind Pressure	1.25-3.5Mpa

Key Operational Benefits

Maximum drilling depth of 260 meters, meeting deep hole geothermal and civilian drilling requirements in Southeast Asia
Drilling diameter range of 105-305mm, suitable for large aperture construction scenarios
Equipped with 73KW Xidong engine providing strong power output optimized for Southeast Asian working conditions
Standard drill rod length of 3m with 76mm diameter, ensuring easy accessory procurement in Southeast Asian markets
Total machine weight of 6T for convenient transportation and cross-border logistics throughout Southeast Asia
Supports three drilling methods: top drive hydraulic rotation, down the hole impact, and mud drilling for strong geological adaptability
