50 Meters Hydraulic Coring Machine For Investigation Exploration

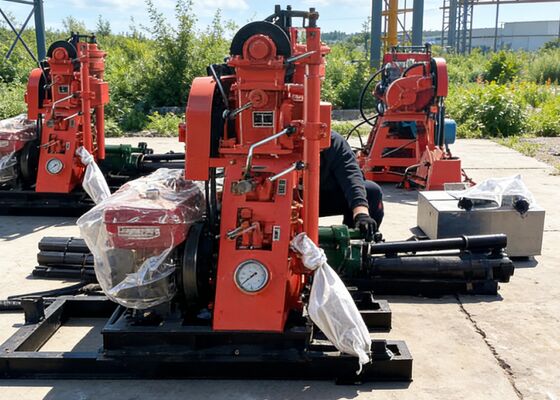

Large Image : 50 Meters Hydraulic Coring Machine For Investigation Exploration

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1000-1500$
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Product Name:	ST 50 Geological Drilling Rig Machine	Type:	Core Drill Rig
Power Type:	Diesel	Weight::	480kg
Usage:	Water Well,railways, Core Drilling	Drilling Depth:	50m
Dimension(LWH):	1180×680×1600mm	Drill Pipe Diameter:	42mm
Condition:	New	Weight:	200KG
Hole Size Diameter:	73-108mm	Support:	Video Support
Highlight:	50 meter hydraulic coring machine , geological drilling rig for exploration , hydraulic coring machine with warranty

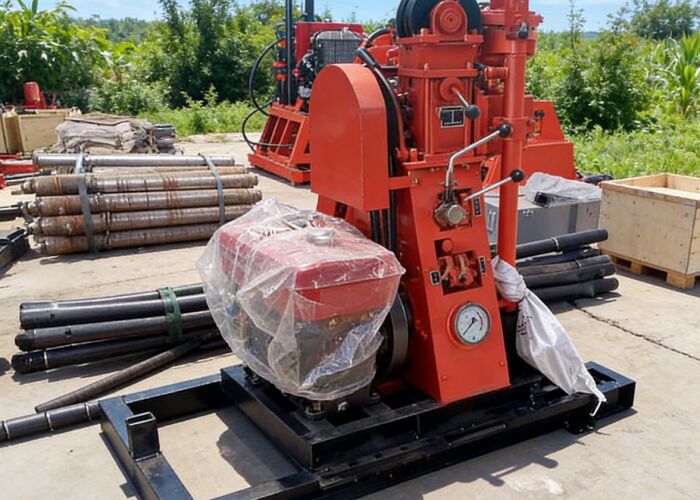

ST 50 Geological Drilling Rig Machine - 50m Depth Capacity

The ST 50 Geological Drilling Rig Machine is a compact sampling drilling equipment designed for operation in plains, mountainous areas, and locations with limited transportation access. This versatile machine is widely used in railway construction, water conservancy projects, and geological core drilling applications.

Product Specifications

Attribute	Value
Product Name	ST 50 Geological Drilling Rig Machine
Type	Core Drill Rig
Power Type	Diesel
Weight	480kg
Usage	Water well, railways, core drilling
Drilling Depth	50m
Dimensions (L×W×H)	1180×680×1600mm
Drill Pipe Diameter	42mm
Hole Size Diameter	73-108mm
Condition	New
Support	Video Support Available

Technical Specifications

Attribute	Value
Dimensions (L×W×H)	1200×1290×700mm
Weight	630KG
Warranty	1 Year
Core Components Warranty	1 Year
Core Components	Motor, Pump, Engine
Drill Rod Caliber	42mm
Supply Water Pressure	0.6-1.2MPa
Capacity of Drum	40
Mobility	Yes

Key Features

Compact Design: Lightweight construction ideal for high-altitude geological operations
Hydraulic Feeding: Automatic feeding mechanism enhances drilling efficiency and reduces operator fatigue
Robust Construction: Four vertical shaft boxes provide exceptional rigidity for challenging terrain conditions
Patented Clutch: Taper clutch design offers high torque transmission with maintenance-free operation

Core Drilling Operation

The drilling system consists of three main components: drilling machine, drill pipe, and drill bit. The rig provides power to drive the drill pipe and bit, enabling deep core sample extraction for geological analysis.

Soil Sampling Methodology

Sample Distribution: Samples should be collected according to soil type and crop distribution patterns, following a zigzag or serpentine pattern for representative sampling.

Sampling Depth: Typically 0-20cm, adjusted based on cultivated layer thickness.

Soil Sampling Procedure
