For Personal Use Small Portable Water Well Drilling Rigs 10-30 Meters Depth

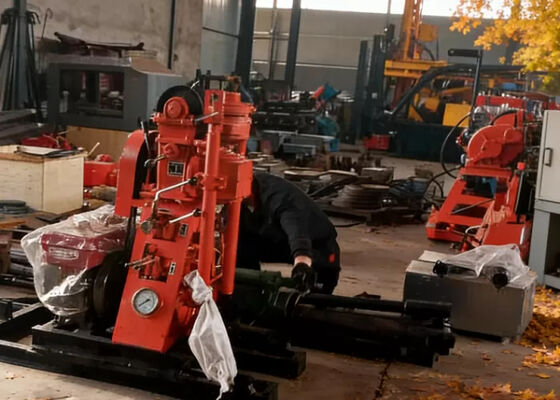

Large Image : For Personal Use Small Portable Water Well Drilling Rigs 10-30 Meters Depth

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO9001
Model Number:	ST 50

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	3 days
Payment Terms:	T/T,Western Union
Supply Ability:	20000 sets per year

Contact Now

Detailed Product Description

Product Name:	Man Portable 50 Meters Depth Easy Movement Diamond Core Drilling Rig	Hole Diameter:	Customized
Drilling Depth:	50 Meters	Voltage:	380v
Application:	Soil Testing Drilling Machine,Water Well Drilling ,Geological Exploration	OEM:	Acceptable
Certification:	ISO9001	Power Type:	Diesel
Condition:	New	Warranty:	1 Year
Weight:	145kg	Diameter:	Customized
Highlight:	small portable water well drilling rig , water well drilling rig 10-30 meters , personal use water well drilling rig

For Personal Use: Small Portable Water Well Drilling Rigs (10-30 Meters Depth)

Man Portable 50 Meters Depth Easy Movement Diamond Core Drilling Rig

ST 50 Core Drilling Rig Description

This advanced portable hydraulic drilling machine is especially suitable for coring operations in mountainous areas, hills, rivers, and other difficult terrains. Ideal for engineering geological surveys including railways, hydropower, traffic, bridges, dam foundations, and more. Applications include geological core drilling, physical exploration, small grouting holes, blastholes, and small well drilling.

ST 50 Core Drilling Rig Technical Specifications

Parameter	Specification
Drilling Rig Hole Diameter	75-108mm
End Hole Diameter	56-75mm
Main Drill Pipe	50mm
Maximum Depth	50m
Diesel Engine	8hp/5.8kw Diesel engine 2200r/min
Drilling Pipe Length	1000mm
Drilling Angle	90°
Drilling Pipe Diameter	42mm
Vertical Shaft Speed	285-570r/min
Vertical Shaft Stroke	1000mm
Lifting Power	300kgs
Additional Pressure	200kg
Mud Pump Model	BW-50
Flow Rate	50L/min
Maximum Pressure	1.2MPA
Reciprocal Time	63 times/min
Input Water Pipe Diameter	55mm*2.5m
Output High Pressure Water Pipe Diameter	20mm*10m
Overall Dimensions	14006001600mm
Weight	240kgs

ST 50 Core Drilling Rig Advantages

Stable Performance: Compact design with small volume for convenient movement, handling, and installation in small section roadways
Reasonable Structure: Lightweight construction with simple structure, fast drilling speed, and large diameter coring samples
Wide Application: Suitable for domestic water drilling in households/factories, farmland irrigation wells, water air conditioner installation, site piling, and more
Time and Labor Saving: High working performance, temperature resistance, and efficient operation for maximum productivity

Water Well Information

How do I find out how much water is in my well?
Multiply the length of water column in feet by the gallon volume per given diameter. For example, a 4-inch-diameter well has 0.65 gallons of water per foot and a 6-inch diameter well has 1.47 gallons per foot. A well is classed as shallow if it is less than 50 feet deep. Wells with a depth of less than 100 feet lack enough soil thickness to adsorb all contaminants seeping into the ground, which can result in poor water quality. Shallow wells extract the water directly from these upper layers.

How do well drillers know where to drill?
Drillers use methods based on changes in electric conductivity caused by water presence. Bore holes can be drilled to assess the geological sequence of strata and identify layers potentially able to host an aquifer.

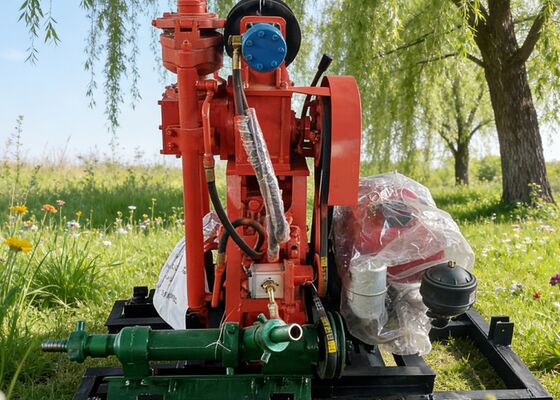

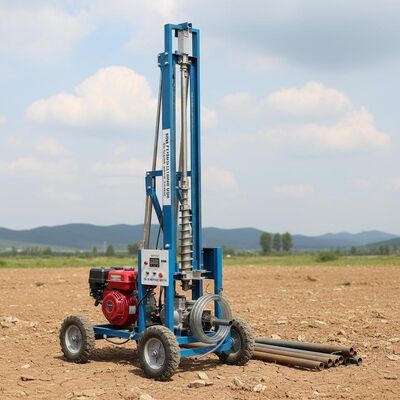

Product Images
