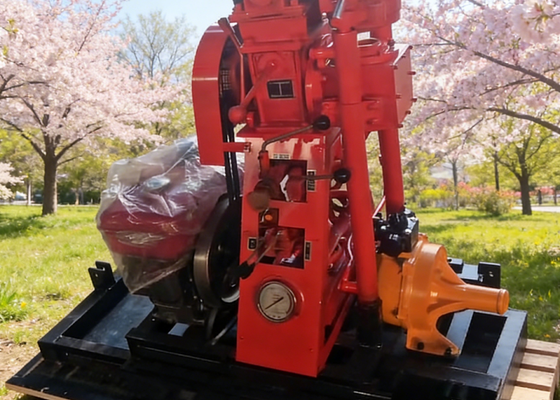

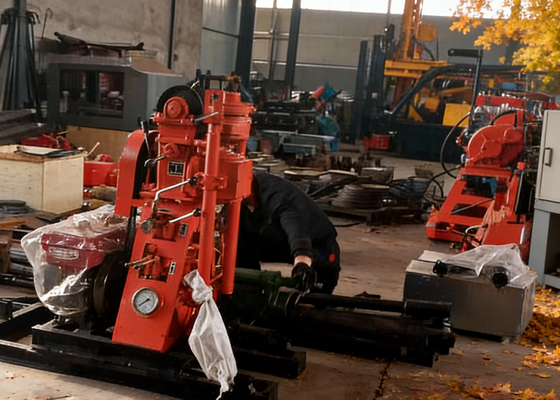

Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection

Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection
Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection
video play

Large Image :  Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: ST 50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 3 days
Payment Terms: T/T,Western Union
Supply Ability: 5000 sets per year
Contact Now
Detailed Product Description
Product Name: ST 50 Soil Testing Drilling Rig Machine Hole Diameter: Customized
Drilling Depth: 50 Meters Voltage: 380v
Application: Soil Testing Drilling Machine,Water Well Drilling ,Geological Exploration OEM: Acceptable
Power Type: Diesel Condition: New
Warranty: 1 Year Weight: 145kg
Diameter: Customized After Sale Service: Video Support
Highlight:

portable core drilling rig for soil samples

,

geotechnical drilling machine 10-50 meters

,

soil test core drill with warranty

ST 50 Portable Borewell Drilling Machine for Geotechnical Projects
The ST 50 Portable Soil Testing Drilling Rig is a compact, versatile drilling machine designed for geotechnical projects, water well drilling, and geological exploration with drilling capabilities up to 50 meters depth.
Product Specifications
AttributeValue
Product NameST 50 Soil Testing Drilling Rig Machine
Hole DiameterCustomized
Drilling Depth50 Meters
Voltage380V
ApplicationSoil Testing, Water Well Drilling, Geological Exploration
OEMAcceptable
Power TypeDiesel
ConditionNew
Warranty1 Year
Weight145kg
After Sale ServiceVideo Support
Technical Specifications
ParameterSpecification
Drilling Rig ModelST50 drilling rig
Drilling DepthMaximum 50 meters
Hole Size Diameter73-108mm
Drill Pipe Diameter42mm
Vertical Spindle Speed70-650 RPM
Reverse Rotation Speed50-130 RPM
Power5.7KW
Dimensions1180×680×1600mm
Weight (including Gasoline Engine)208kg
Key Advantages
  • Available with diesel engine or single-phase/three-phase electric power options
  • Compact footprint (less than 1 square meter) with height under 2.6 meters and approximate weight of 100kg
  • Suitable for both outdoor and indoor operations
  • Versatile drilling capabilities: spiral drill pipe and drag bit, core barrel for sampling, water circulation drill for water wells
  • Lightweight design (100kg) for easy transportation and operation in confined spaces
  • Recommended for holes up to 120mm diameter and depths to 80 meters
  • Capable of drilling 10-20m in soft formations
Primary Applications
  • Geological drilling in complex terrains (mountains, hills, rivers)
  • Engineering geological surveys for construction projects
  • Blast hole drilling
  • Prospection and geotechnical investigation for railways, roads, ports, bridges, water conservancy projects
  • Coal and ore mining exploration
  • Small diameter water well drilling
  • Geothermal pipe installation for heat pumps
  • Small-diameter foundation piling
Rural Well Drilling Considerations
When drilling wells in rural areas, attention should be paid to:
  • Selecting appropriate well type and location (away from sewers, sewage pipes, and river banks)
  • Implementing proper well hole layout
  • Choosing suitable water pump configuration
  • Using correct construction methods
  • Timely brick lining of wells to prevent collapse, especially important for deeper wells
Product Images
Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection 0 Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection 1 Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection 2 Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection 3 Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection 4 Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection 5 Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection 6 Geotechincal Portable Core Drilling Rig 10-50 Meters Depth For Samples Collection 7
