40-140mm Rock Drill Rods For exploration Drilling rig/water drilling machine

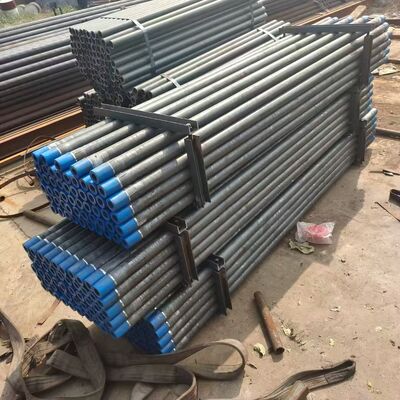

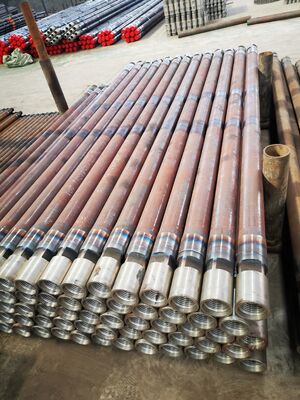

Large Image : 40-140mm Rock Drill Rods For exploration Drilling rig/water drilling machine

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	Drill rod for pier head / friction welded drill rod

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C, D/A, T/T, Western Union

Contact Now

Detailed Product Description

Parts Name:	Drill Rod For Pier Head / Friction Welded Drill Rod	Processing Type:	Casting
Machine Type:	Drilling Tool	Thread Protector:	Plastic, Metal, Rubber
Shank:	1/1.5/2/3/6/9m	Diameter:	40-140mm
Highlight:	40-140mm rock drill rods , exploration drilling rig rods , water drilling machine rods

40-140mm Rock Drill Rods For exploration Drilling rig/water drilling machine

Product Specifications

Parts Name

Drilling rod

Processing Type

Casting

Machine Type

Drilling Tool

Thread Protector

Plastic, Metal, Rubber

Drill rod for coring

40/50

Drill rod for water well

76/89/102/114 ect.

Diameter

40-140mm

Key Features

Upset Drill Pipe

- One-piece forging: No welds at the pipe ends, integrally upset thickened.
- Higher strength: Enhanced torsional & tensile resistance, less breakage.
- Better fatigue resistance: Stable sealing, suitable for deep & high-pressure wells.
- Reliable performance: Ideal for heavy-duty, high-torque drilling.

Friction Welded Drill Pipe

- Friction welding process: Joints welded at high temperature, high weld strength.
- Cost-effective: Efficient production, lower cost, wide specifications.
- Stable strength: Weld zone close to base metal performance.
- General application: Suitable for conventional, directional & horizontal wells.

Technical Specifications

Shank Style	Length (Mm)	Wall thickness(Mm)	Thread type
76mm	1500-6000	6.5	API 2 3/8" REG
89mm	1500-6000	6.5/9.5	NC26
102mm	1500-6000	8.38	NC31
114mm	1500-6000	8.56	NC35/NC38

Applications

1. Upset Drill Pipe

- Deep wells, ultra‑deep wells
- High‑pressure, high‑torque operations
- Complex formations, deviated/horizontal wells
- Frequent tripping, heavy‑duty drilling
- Oil, gas, geothermal, mining drilling

2. Friction Welded Drill Pipe

- Conventional oil/gas wells
- Directional & horizontal wells
- Medium‑depth wells
- General geological & water well drilling
- Cost‑sensitive projects, mass use
