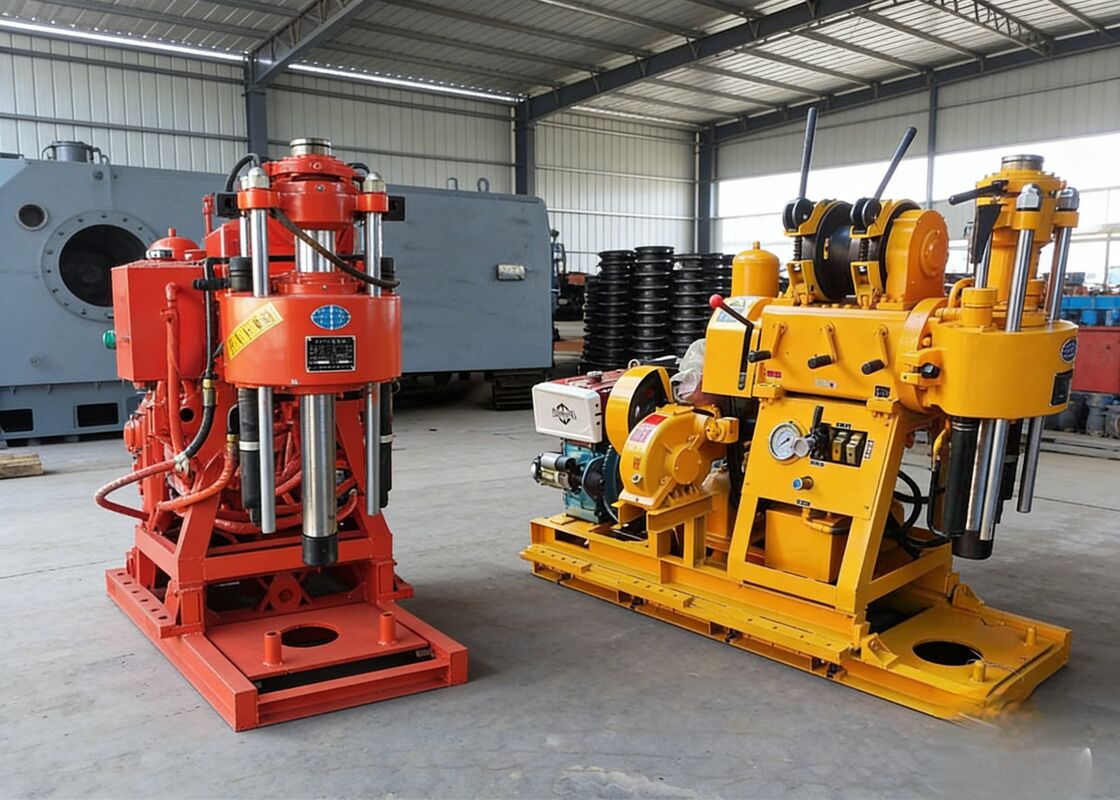

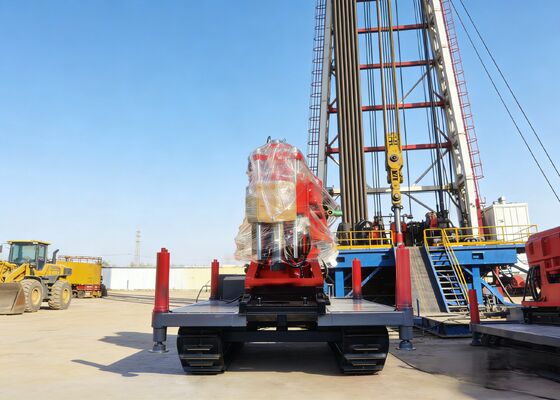

Hydraulic Rotary Geological Drilling Rig For Architecture/Soil Exploration/Waterwell

Product Description

  This drilling rig offers two power options—electric motor and diesel engine—allowing users to make a flexible choice based on on-site power conditions. The hydraulic system utilizes a gear oil pump with a rated pressure of 12.5 MPa, ensuring stable and efficient drilling operations. The hoist features a lifting force of 15 kN and a wire rope capacity of 35 meters, meeting the requirements for deep-hole operations. With its compact dimensions, the unit is well-suited for construction in confined spaces and is widely applied in fields such as geological sampling and engineering exploration.

Features

Dual Power Configuration: 11 kW Electric Motor or 16.2 kW Diesel Engine
Motor Speed: 1460 rpm; Diesel Engine Speed: 2200 rpm
Gear Oil Pump Rated Speed: 2000 rpm
Hydraulic System Rated Pressure: 12.5 MPa, delivering robust power
Oil Pump Displacement: 20 L/rev, ensuring stable oil supply

Technical Parameters

FAQ

• Q: What is the brand name of this product?
• A: The brand name of this product is Shitan.
• Q: What is the model number of this product?
• A: The model number of this product is GK 200.
• Q: Where is this product manufactured?
• A: This product is manufactured in Jinzhou, Hebei Province.
• Q: Is this product certified?
• A: Yes, this product is certified with ISO.
• Q: What is the minimum order quantity for this product?
• A: The minimum order quantity for this product is 1 set.
• Q: How much does this product cost?
• A: The price of this product is based on a customized quotation list.
• Q: How is this product packaged?
• A: This product is packaged in a wooden box.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
