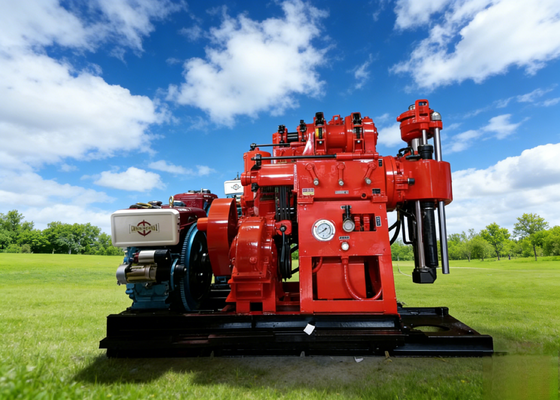

Tracked Chassis Diamond Core Drilling Machine With Bw160 Mud Pumb

Product Description



All-Round Efficient Engineering Tool

This drilling rig is a true all-rounder for construction projects! With a maximum hole diameter of 150mm and drilling depth of 200m, it offers dual power options: 11kW motor / 16.2kW diesel engine, meeting diverse working conditions. Boasting a 450mm vertical axis stroke, 25kN maximum lifting force, 35m steel wire capacity, and multi-speed winch, it delivers efficient, stable tripping operations. A cost-effective choice for pile foundation and exploration projects!


Features

  1. Versatile Aperture Range: Covering multiple diameters from 75mm to 150mm, suitable for a wide variety of exploration scenarios.
  2. Deep Drilling Potential: A maximum drilling depth of 200m allows for effortless penetration through diverse geological strata, expanding the scope of engineering operations.
  3. Powerful Lifting Force: A maximum vertical lifting capacity of 25kN ensures smooth, jam-free handling of heavy-duty drilling tools, boosting operational efficiency .
  4. High-Efficiency Hoisting System: Featuring a 35m wire rope capacity and a multi-speed winch, the system offers precise and controllable drill string hoisting speeds, thereby reducing overall operation time.
  5. Stable Hydraulic Support: Equipped with a gear pump rated at 12.5MPa, the hydraulic system demonstrates exceptional shock resistance and minimal leakage, effectively extending the equipment's service life.

Technical Parameters

Technical ParametersSpecifications
Drilling RangeHole Diameter 75-150mm, Depth 50-200m
Key WordsBore/well Drill Rig, Hydraulic Water Well Drilling Rig
Lifting PerformanceMax Lifting Force 25kN, Vertical Axis Stroke 450mm
WeightAround 600kg
Reel speed (second layer) m/s
0.166/0.331/0.733/1.465
Drum speed (r/min)
19/38/84/168
Mud PumpBW 160 Single Mud Pump
Drilling RodΦ50mm, 42mm
Drilling Rod length1/2/3m


FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is Shitan.
  • Q: What is the model number of this product?
  • A: The model number of this product is GK 200.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in Jinzhou, Hebei Province.
  • Q: Is this product certified?
  • A: Yes, this product is certified with ISO.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 1 set.
  • Q: How much does this product cost?
  • A: The price of this product is based on a customized quotation list.

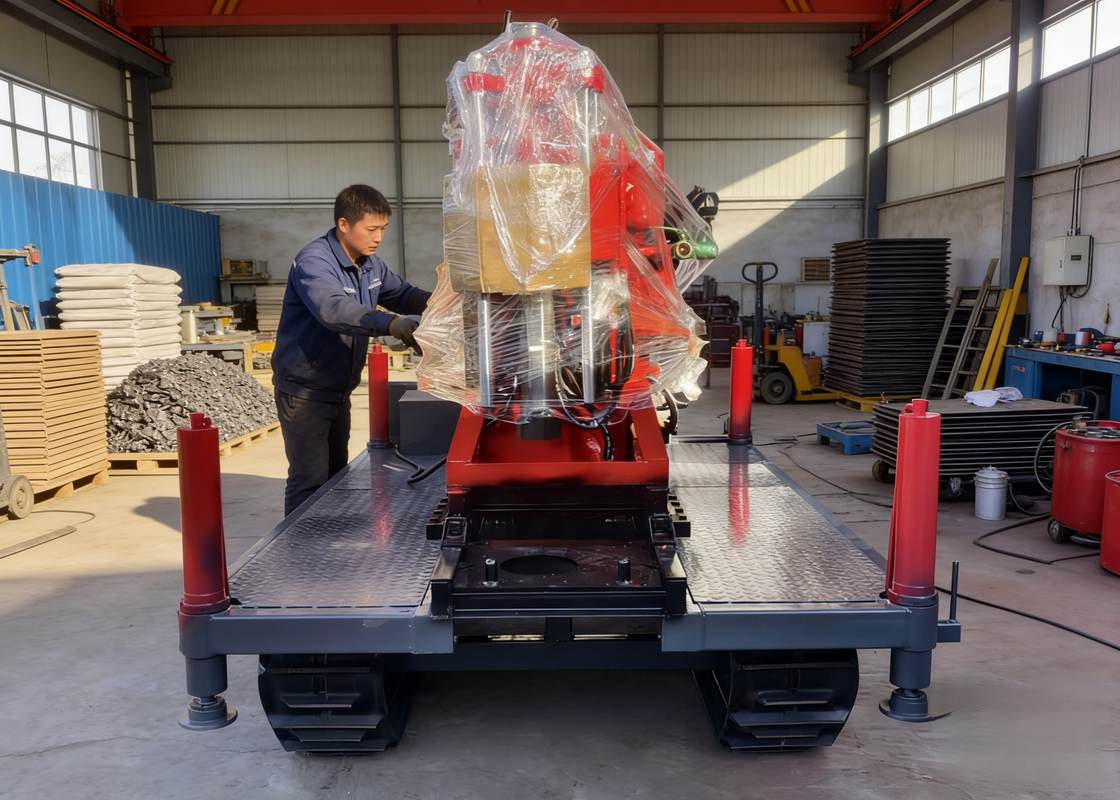

  • Q: How is this product packaged?
  • A: This product is packaged in a wooden box.



Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

Tracked Chassis Diamond Core Drilling Machine With Bw160 Mud PumbTracked Chassis Diamond Core Drilling Machine With Bw160 Mud PumbTracked Chassis Diamond Core Drilling Machine With Bw160 Mud PumbTracked Chassis Diamond Core Drilling Machine With Bw160 Mud PumbTracked Chassis Diamond Core Drilling Machine With Bw160 Mud PumbTracked Chassis Diamond Core Drilling Machine With Bw160 Mud PumbTracked Chassis Diamond Core Drilling Machine With Bw160 Mud PumbTracked Chassis Diamond Core Drilling Machine With Bw160 Mud PumbTracked Chassis Diamond Core Drilling Machine With Bw160 Mud Pumb



Service Custom Attributes

Highlight

tracked chassis diamond core drill

,

geological drilling rig with mud pump

,

bw160 mud pump drilling machine

Key Words:
200 Meters Water/ Borehole Drilling Rig
Product Name:
GK 200
Lifting Capacity:
15KN
Drilling Rod:
Φ50mm,42mm
Drilling Method:
Mud Drilling
Drilling Depth:
Max 200m
Mud Pump:
BW 160 Single Mud Pump
Customizable:
Yes
