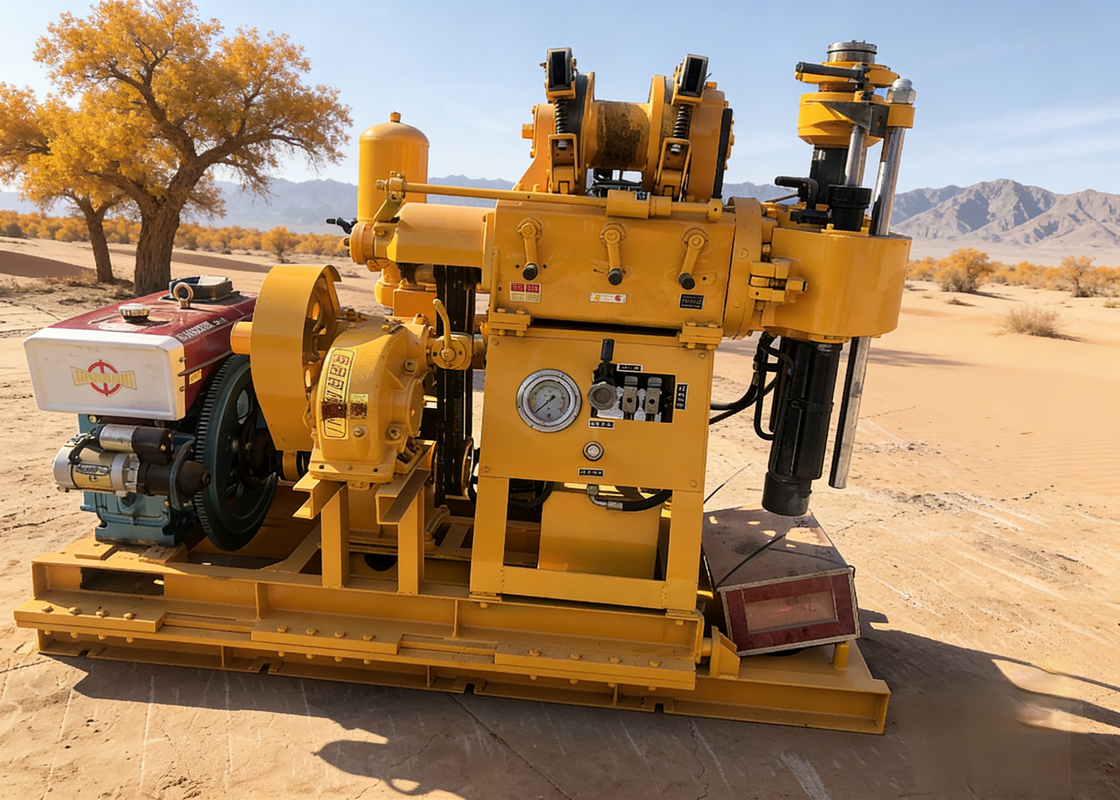

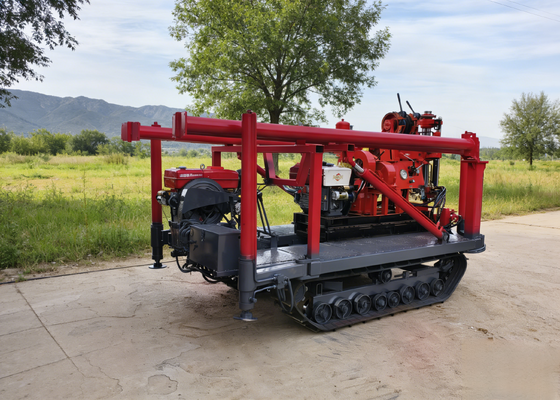

GK200/XY-200 Mobile Water Well Drilling Rigs Easy Operate

Product Description



Rugged Performance for Multi-Scenario Adaptation

Designed for complex geology, this drilling equipment features adjustable hole diameters (75-150mm) and depths (50-200m), flexibly adapting to various engineering needs. With 15kN lifting force, multi-speed winch, and a gear oil pump with 12.5MPa rated pressure, it ensures stable, durable hydraulic performance. Weighing only 525kg with a compact size, it’s easy to transport, making field construction and relocation effortless.

Features:

  • Durable & Low-Consumption: High-strength steel body with wear-resistant core components, low maintenance cost for long-term high-intensity use.
  • Wide Drill Rod Compatibility: 42-60mm drill rod diameter options, compatible with various drill tools for flexible project matching.
  • Field-Friendly Performance: Compact body + strong power, working smoothly in deserts, mountains, hills and other complex terrains with no site limits.
  • User-Friendly Operation: Multi-speed regulation + precise stroke control, easy for new operators to master, reducing training costs.
  • Unbeatable Value for Money: Top-tier specs matching high-end models at an affordable price, accessible for small and medium-sized construction teams.
  • Full Working Condition Coverage: From 50m shallow holes to 200m deep holes, small to large diameters, suitable for municipal, mining, irrigation and more.

Technical Parameters:

Module Parameter Name Value
Basic Drilling Hole Diameter 75/91/110/130/150mm
  Drilling Depth 200/150/100/70/50m
  Drilling Angle 75°-90°
  Drill Rod Diameter 60/50/42mm
Lifting Unit
Vertical Axis Stroke
450mm

Max Lifting Force
25kN
  Vertical Max Feed Force 15kN
Rotation System Rotation Rate 115/230/505/1010r/min
Drilling Rod length Max Upward Movement Speed 0.05m/s


FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is Shitan.
  • Q: What is the model number of this product?
  • A: The model number of this product is GK 200.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in Jinzhou, Hebei Province.
  • Q: Is this product certified?
  • A: Yes, this product is certified with ISO.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 1 set.
  • Q: How much does this product cost?
  • A: The price of this product is based on a customized quotation list.
  • Q: How is this product packaged?
  • A: This product is packaged in a wooden box.



Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

GK200/XY-200 Mobile Water Well Drilling Rigs Easy OperateGK200/XY-200 Mobile Water Well Drilling Rigs Easy OperateGK200/XY-200 Mobile Water Well Drilling Rigs Easy Operate

GK200/XY-200 Mobile Water Well Drilling Rigs Easy OperateGK200/XY-200 Mobile Water Well Drilling Rigs Easy OperateGK200/XY-200 Mobile Water Well Drilling Rigs Easy Operate

GK200/XY-200 Mobile Water Well Drilling Rigs Easy OperateGK200/XY-200 Mobile Water Well Drilling Rigs Easy OperateGK200/XY-200 Mobile Water Well Drilling Rigs Easy OperateGK200/XY-200 Mobile Water Well Drilling Rigs Easy Operate



Service Custom Attributes

Highlight

mobile water well drilling rig

,

easy operate drilling rig machine

,

GK200 XY200 geological drilling rig

Key Words:
200 Meters Water/ Borehole Drilling Rig
Lifting Capacity:
15KN
Drilling Rod:
Φ50mm,42mm
Drilling Method:
Mud Drilling
Mud Pump:
BW 160 Single Mud Pump
Drilling Diameter:
75–150mm
Power Type:
Electric Motor & Diesel Engine
Diesel Engine Power:
16.2kW
Motor Power:
11kW
Lifting Force:
Max 25kN
