Factory Direct Supply Reliable Drilling Machine For Engineering Exploration

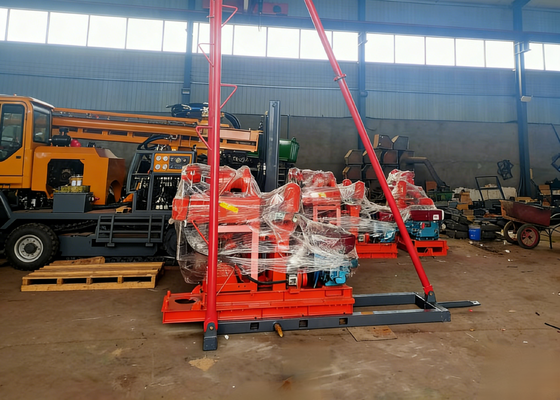

Large Image : Factory Direct Supply Reliable Drilling Machine For Engineering Exploration

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Model Number:	GK 200

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	customized quotation list
Packaging Details:	wooden box
Delivery Time:	7 days after payment
Payment Terms:	TT,Western union
Supply Ability:	1000 or 2000 set per year

Contact Now

Detailed Product Description

Product Name:	GK 200	Drilling Depth:	Max 200m
Mud Pump:	BW 160 Single Mud Pump	Drilling Diameter:	75–150mm
Power Type:	Electric Motor & Diesel Engine	Diesel Engine Power:	16.2kW
Motor Power:	11kW	Vertical Stroke:	450mm
Application:	Water Well & Exploration	Hydraulic Pressure:	12.5MPa
Machine Weight:	525kg	Overall Dimension:	1433×697×1273mm

Factory Direct Supply Reliable Drilling Machine For Engineering Exploration

Product Description

Smart & Cost-Effective for Profit Boost

This high-performance drilling rig is packed with top-tier specs: 75-150mm hole diameter, 200m depth, 1460/2200r/min power speed, and 115-505r/min rotation rate for boosted efficiency. With a 450mm vertical stroke for precise operation, compact structure, and easy maintenance, it significantly cuts construction costs and accelerates project delivery, ideal for efficient, profitable operations.

Features:

Application:Water well & Exploration
Working Terrain: Field, Mountain, Urban
Structure: Compact & Movable
Operation: Easy to Control & Maintain
Certification: Standard for Export

Technical Parameters:

Item	Specification
Model	XY-200 Hydraulic Drilling Rig
Drilling Diameter	75mm, 91mm, 110mm, 130mm, 150mm
Maximum Drilling Depth	200m
Drill Rod Specification	Φ42 / Φ50 / Φ60mm
Spindle Speed	115 / 230 / 505 / 1010 r/min
Spindle Stroke	450mm
Winch Rope Capacity	35m
Feeding Force	15kN
Maximum Lifting Capacity	25kN

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is Shitan.
Q: What is the model number of this product?
A: The model number of this product is GK 200.
Q: Where is this product manufactured?
A: This product is manufactured in Jinzhou, Hebei Province.
Q: Is this product certified?
A: Yes, this product is certified with ISO.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
Q: How much does this product cost?
A: The price of this product is based on a customized quotation list.
Q: How is this product packaged?
A: This product is packaged in a wooden box.

Factory Direct Supply Reliable Drilling Machine For Engineering Exploration 0

Factory Direct Supply Reliable Drilling Machine For Engineering Exploration 2

Factory Direct Supply Reliable Drilling Machine For Engineering Exploration 4

Factory Direct Supply Reliable Drilling Machine For Engineering Exploration 5

Factory Direct Supply Reliable Drilling Machine For Engineering Exploration 6
