Easy Operation Diesel Engine Borehole Drilling Machine XY-1A For Exploration

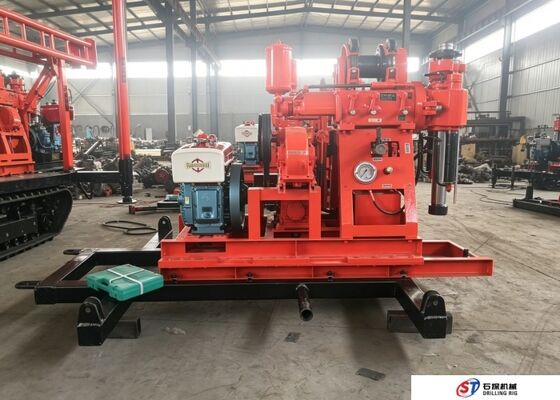

Large Image : Easy Operation Diesel Engine Borehole Drilling Machine XY-1A For Exploration

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 set/year

Contact Now

Detailed Product Description

Product Name:	XY-1A Borehle Drilling Machine	Drilling Depth:	150m
Drilling Diameter:	150mm	Drilling Pipe:	50mm
Weight:	600kg	Max Lifting Capacity:	15KN
Hoisting Drum Speed:	121,76,36 R/min	Mud Pump:	BW 160 Mud Pump
Rotary Speed:	45-70	Color:	Yellow ,Blue,Red
End Hole Dia:	75mm	Power:	Diesel Engine
Oem Design:	Wheels Mounted Or Optional	Drilling Methold:	Mud Drilling

Easy Operation Diesel Engine Borehole Drilling Machine XY-1A For Exploration

Product Overview

The XY-1A Borehole Drilling Machine is a professional exploration rig designed for deep borehole drilling applications. This diesel-powered machine combines maximum performance with reliability, capable of drilling up to 150mm diameter boreholes to depths of 150 meters. With its compact 600kg design and optional wheel mounting, it offers excellent mobility for various job sites.

Key Specifications

Attribute	Value
Product Name	XY-1A Borehole Drilling Machine
Weight	Around 600kg
Max. Lifting Capacity	15KN
Drilling Rig Power	Diesel Engine
Drilling Depth	150m
Drilling Diameter	150mm
Drilling Angle	75-90°
Hoisting Drum Revolution	121,76,36(r/min)
OEM Design	Wheels Mounted Or Optional

Core Features

High-performance diesel engine for reliable operation
Three-speed hoisting drum (121, 76, 36 r/min) for precise control
Adjustable drilling angle from 75° to 90°
Compact 600kg design with optional wheel mounting for mobility
15KN maximum lifting capacity for heavy-duty applications
150mm maximum drilling diameter capability
150m maximum drilling depth capacity

Applications

Water resources investigation and well drilling
Geological exploration and sampling
Mining exploration and core sampling
Engineering construction and foundation work
Environmental monitoring well installation

Support & Services

Pre-sales consultation and product selection assistance
Installation and commissioning support
Maintenance and repair services
Regular maintenance programs
Genuine spare parts supply
Operator training programs
Emergency troubleshooting support

Packaging & Shipping

Each unit is carefully inspected, cleaned, and securely packaged in protective materials before shipping via reliable carriers. All shipments include proper labeling with weight, destination, and sender information.

Frequently Asked Questions

What is the brand of this drilling machine?
The brand is Shitan, model XY-1A, manufactured in Jinzhou, Hebei Province.

What are the main applications of this machine?
This borehole drilling rig is designed for water well drilling, geological exploration, mining exploration, and engineering construction applications.

What makes this drilling machine special?
It combines high efficiency (150m depth capability), easy operation (three-speed hoisting), and stable performance in a compact 600kg package with optional mobility features.

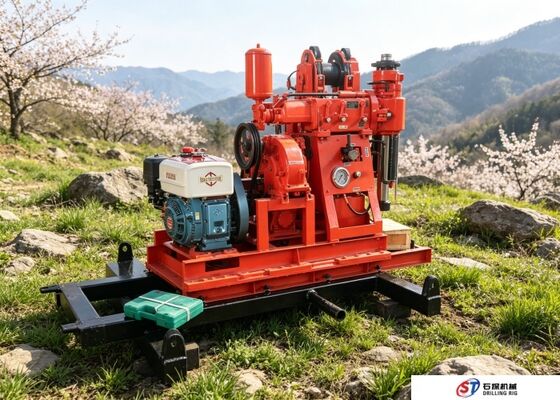

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
