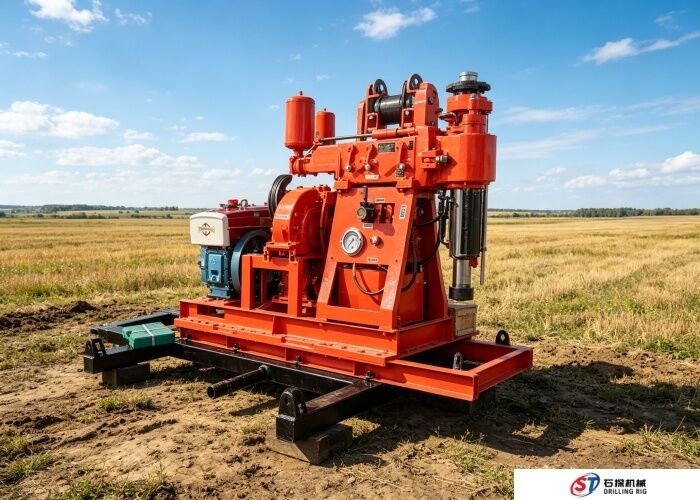

Challenging Geological Areas XY-1A Borehole Drilling Machine Diesel Engine Rig

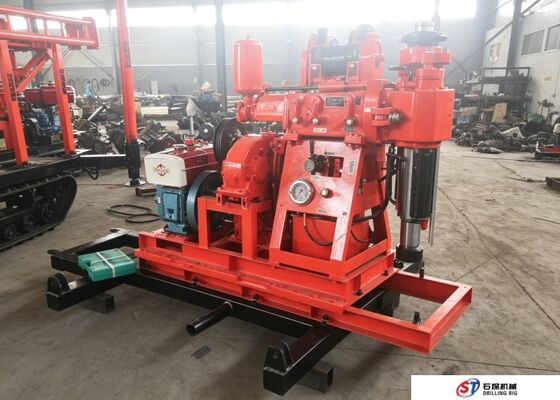

Large Image : Challenging Geological Areas XY-1A Borehole Drilling Machine Diesel Engine Rig

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 set/year

Contact Now

Detailed Product Description

Product Name:	XY -1A Drilling Machine	Drilling Depth:	150m
Drilling Diameter:	150mm	Drilling Pipe:	50mm
Weight:	600kg	Max Lifting Capacity:	15KN
Hoisting Drum Speed:	121,76,36 R/min	Max Drilling Depth:	220m
After Sale Serive:	Online Support	Geology Drilled:	All Kinds
After Sale Service:	Online Video Support	Application:	Water Well Drilling, Geotechnical Drilling

Challenging Geological Areas XY-1A Borehole Drilling Machine Diesel Engine Rig

Product Overview

Designed with field exploration needs in mind, the XY-1A Borehole Drilling Machine delivers powerful, consistent performance for your borehole projects. Its diesel engine provides the reliability you need to drill 150mm holes to depths of 150 meters, while its 600kg compact build keeps it easy to handle. The optional wheel mounting adds versatility, letting you move the rig between different locations without hassle, no matter the terrain or job site conditions.

Key Specifications

Technical Parameter	Unit	Value
Product Name	-	XY-1A Borehole Drilling Machine
Total Weight	kg	≈600
Maximum Lifting Capacity	kN	15
Power Type	-	Diesel Engine
Rated Drilling Depth	m	150
Max. Borehole Diameter	mm	150
Permissible Drilling Angle	°	75-90
Hoisting Drum Speed	r/min	121 / 76 / 36
Mounting Configuration	-	Wheel-mounted / Optional

Core Features

High-performance diesel engine for reliable operation
Three-speed hoisting drum (121, 76, 36 r/min) for precise control
Adjustable drilling angle from 75° to 90°
Compact 600kg design with optional wheel mounting for mobility
15KN maximum lifting capacity for heavy-duty applications
150mm maximum drilling diameter capability
150m maximum drilling depth capacity

Applications

Water resources investigation and well drilling
Geological exploration and sampling
Mining exploration and core sampling
Engineering construction and foundation work
Environmental monitoring well installation

Support & Services

Pre-sales consultation and product selection assistance
Installation and commissioning support
Maintenance and repair services
Regular maintenance programs
Genuine spare parts supply
Operator training programs
Emergency troubleshooting support

Packaging & Shipping

Each unit is carefully inspected, cleaned, and securely packaged in protective materials before shipping via reliable carriers. All shipments include proper labeling with weight, destination, and sender information.

Frequently Asked Questions

What is the brand of this drilling machine?

The brand is Shitan, model XY-1A, manufactured in Jinzhou, Hebei Province.

What are the main applications of this machine?

This borehole drilling rig is designed for water well drilling, geological exploration, mining exploration, and engineering construction applications.

What makes this drilling machine special?

It combines high efficiency (150m depth capability), easy operation (three-speed hoisting), and stable performance in a compact 600kg package with optional mobility features.
