Mining Borehole Drilling Machine 100-150 Meters Depth For Coring

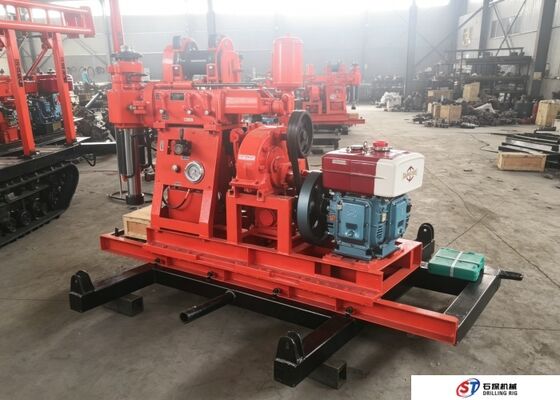

Large Image : Mining Borehole Drilling Machine 100-150 Meters Depth For Coring

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	XY-1A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Customzied Quotation list
Packaging Details:	1*20 FCL
Delivery Time:	7-10 days
Payment Terms:	T/T,Western Union
Supply Ability:	2000 set/year

Contact Now

Detailed Product Description

Product Name:	XY-1A Borehle Drilling Machine	Drilling Depth:	150m
Drilling Diameter:	150mm	Drilling Pipe:	50mm
Weight:	600kg	Max Lifting Capacity:	15KN
Hoisting Drum Speed:	121,76,36 R/min	Mud Pump:	BW 160 Mud Pump
Rotary Speed:	45-70	Color:	Yellow ,Blue,Red
End Hole Dia:	75mm	Power:	Diesel Engine
Oem Design:	Wheels Mounted Or Optional	Drilling Methold:	Mud Drilling

Mining Borehole Drilling Machine 100-150 Meters Depth For Coring

Product Overview

The XY-1A Borehole Drilling Machine is a purpose-engineered exploration rig optimized for deep borehole applications. Its diesel powertrain delivers the torque and stability required to drill 150mm diameter holes to a depth of 150 meters, while maintaining consistent performance even in challenging conditions. Weighing only 600kg, the unit features a compact footprint, and the optional wheel mounting system enhances its mobility, allowing it to access both remote and confined job sites with ease.

Technical Specifications

Technical Parameter	Unit	Value
Product Name	-	XY-1A Borehole Drilling Machine
Total Weight	kg	≈600
Maximum Lifting Capacity	kN	15
Power Type	-	Diesel Engine
Rated Drilling Depth	m	150
Max. Borehole Diameter	mm	150
Permissible Drilling Angle	°	75-90
Hoisting Drum Speed	r/min	121 / 76 / 36
Mounting Configuration	-	Wheel-mounted / Optional

Core Features

High-performance diesel engine for reliable operation
Three-speed hoisting drum (121, 76, 36 r/min) for precise control
Adjustable drilling angle from 75° to 90°
Compact 600kg design with optional wheel mounting for mobility
15KN maximum lifting capacity for heavy-duty applications
150mm maximum drilling diameter capability
150m maximum drilling depth capacity

Applications

Water resources investigation and well drilling
Geological exploration and sampling
Mining exploration and core sampling
Engineering construction and foundation work
Environmental monitoring well installation

Support & Services

Pre-sales consultation and product selection assistance
Installation and commissioning support
Maintenance and repair services
Regular maintenance programs
Genuine spare parts supply
Operator training programs
Emergency troubleshooting support

Packaging & Shipping

Each unit is carefully inspected, cleaned, and securely packaged in protective materials before shipping via reliable carriers. All shipments include proper labeling with weight, destination, and sender information.

Frequently Asked Questions

What is the brand of this drilling machine?

The brand is Shitan, model XY-1A, manufactured in Jinzhou, Hebei Province.

What are the main applications of this machine?

This borehole drilling rig is designed for water well drilling, geological exploration, mining exploration, and engineering construction applications.

What makes this drilling machine special?

It combines high efficiency (150m depth capability), easy operation (three-speed hoisting), and stable performance in a compact 600kg package with optional mobility features.

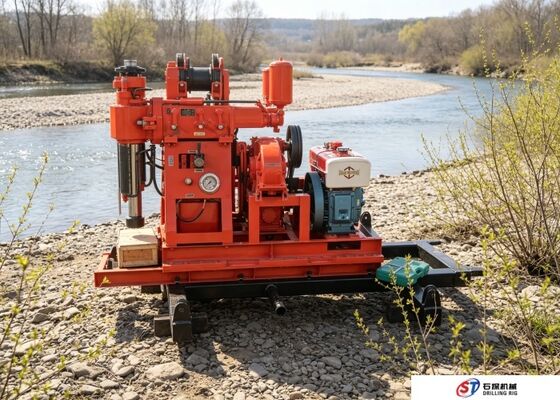

Product Images
