High Speed 10-35m/h Crawler Drilling Rig For Hard Rock

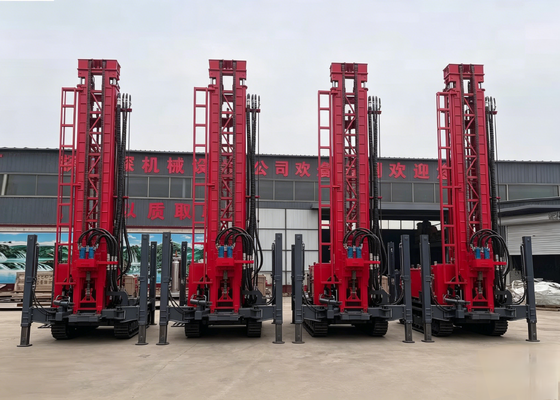

Large Image : High Speed 10-35m/h Crawler Drilling Rig For Hard Rock

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	ST180 water well drilling rig

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	customized quotation list
Packaging Details:	wooden box
Delivery Time:	7 days after payment
Payment Terms:	TT,Western union
Supply Ability:	1000 or 2000 set per year

Contact Now

Detailed Product Description

Fast Forward Speed:	40m/min	Drilling Method:	Water Mud /Air Compressor
Drilling Diameter:	105-305mm	Lifting Speed:	20m/min
Weight:	4.5T	Maximum Turning Torque:	5900
Drill Rod Length:	3m	Lifting Force:	18T
Color:	Yellow/blue/red/green	Brand:	SHITAN
Dilling Depth:	Max180m	Overall Dimension:	3.41.82.3m

Product Description:

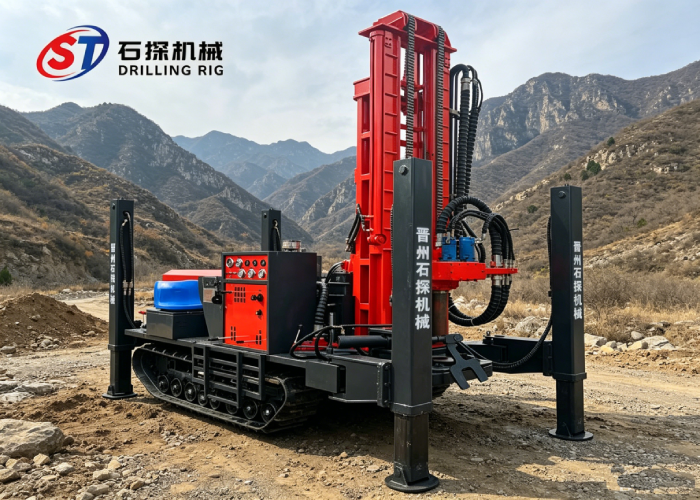

Equipped with reliable 55KW diesel engine and high torque hydraulic top drive system, ST180 is professionally customized for drought and rocky terrain. It smoothly drills through loose overburden soil and solid bedrock, solving freshwater shortage troubles in arid barren areas. Dual drilling technology lets users switch between air drilling for hard rock and mud drilling for soft formation freely.

Features:

One-stop full package supply with complete rig, drill tools and air compressor, simplifying procurement and speeding up project startup.

Adjustable bore diameter drilling machine from 90mm to 400mm for various aquifer geology

Portable compact crawler drill machine work well in narrow village construction site

Dual-purpose DTH & mud borehole drill machine suit Africa dry land hard rock drilling

Multi-functional geothermal & water well dual use drilling equipment

Technical Parameters

Item	Specification
Drilling Depth	180m
Drilling Hole Diameter	105-305mm
Lifting force of small auxiliary winch	1.2T
Maximum rotation speed	85/170r/min
Footage efficiency	10-35m/h
Walking speed	2.5km/h
Adaptive conditions	Loose layer and bedrock
Lifting force	16T
Drilling Method	Water Mud /Air Compressor

Professional OEM drilling rig factory with diversified standard models, customized modification available to match clients’ unique geological and project requirements.
