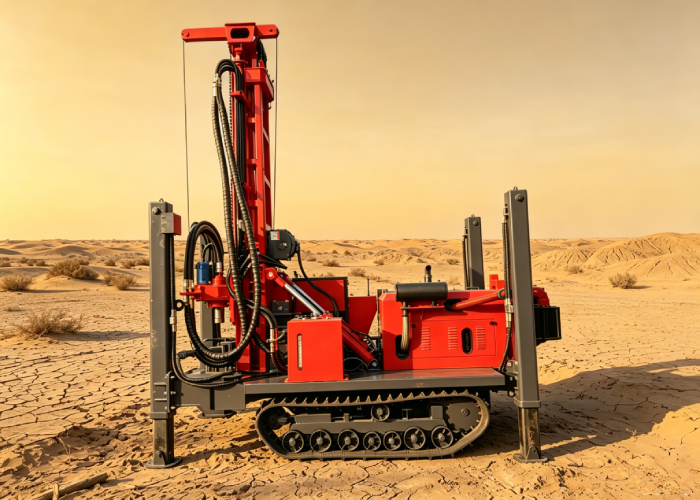

Commercial/Industrial Hydraulic Pneumatic Drilling Rig With Air Compressor/Mud Pump

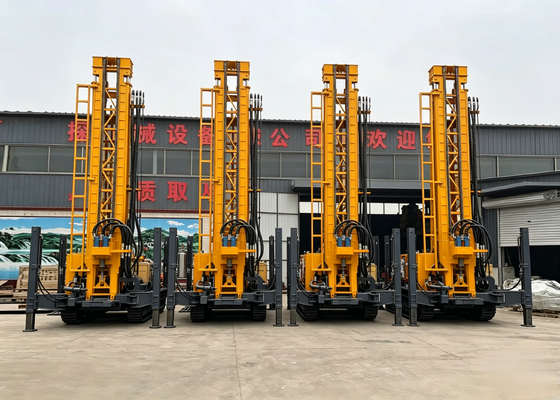

Large Image : Commercial/Industrial Hydraulic Pneumatic Drilling Rig With Air Compressor/Mud Pump

Product Details:

Place of Origin:	Jinzhou ,Hebei Province
Brand Name:	Shitan
Certification:	ISO
Model Number:	ST180 water well drilling rig

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	customized quotation list
Packaging Details:	wooden box
Delivery Time:	7 days after payment
Payment Terms:	TT,Western union
Supply Ability:	1000 or 2000 set per year

Contact Now

Detailed Product Description

Fast Forward Speed:	40m/min	Drilling Method:	Water Mud /Air Compressor
Drilling Diameter:	105-305mm	Lifting Speed:	20m/min
Weight:	4.5T	Maximum Turning Torque:	5900
Lifting Force:	18T	Travel Mode:	Crawler/Tire

Product Description:

Compact structural design with total machine weight only 4.5 tons, ST180 owns low fuel consumption and low breakdown rate. It covers 180m drilling demand with affordable cost, ideal startup equipment for individual drillers and small newly-founded drilling teams to develop local well-drilling business.

Features:

No more worries about water shortage in arid areas. This rig drills wells on site to get water, perfectly meeting demands for farm irrigation and daily drinking for people and livestock.
Equipped with self-propelled crawler, it can move directly to farmlands and work sites. No need for large transport trucks, helping you cut down transportation costs greatly.
It works well on both soft soil and hard rock. Use DTH drilling for rocky ground and mud drilling for soil layers, so you can take on well-drilling jobs across local villages.
Easy to operate. Local workers can master the skills within just two or three days, so you don’t have to hire expensive professional operators.
Compact size with powerful drilling capacity. It is the ideal choice for small drilling teams. Low investment brings quick returns.

Technical Parameters

Name	Specification
Depth	Max 180m
Drilling Hole Diameter	105-305mm
Maximum turning torque	5900
Maximum rotation speed	85/170r/min
Footage efficiency	10-35m/h
Engine	55KW
Drilling Method	Water Mud /Air Compressor
Lifting force	16T
Climbing degree	30°

Professional OEM drilling rig factory with diversified standard models, customized modification available to match clients’ unique geological and project requirements.
