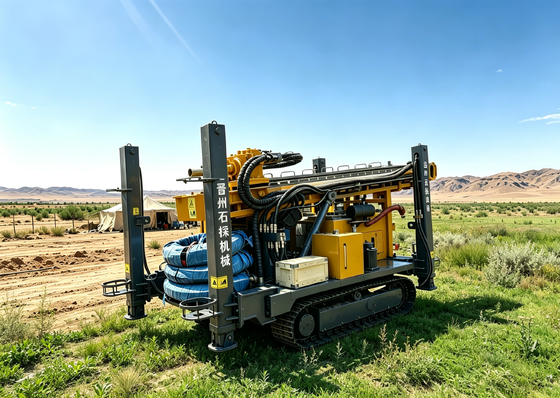

300m /900feets Depth Pneumatic Earth Drilling Equipment With 8900 N·M Torque

Service Summary

300m /900feets Depth Pneumatic Earth Drilling Equipment With 8900 N·M TorqueIf you want a high-profit drilling device with low comprehensive costs, the ST300s crawler water well rig is your top pick. Its all-in-one design eliminates extra transportation trailers, cutting daily site transfer expenses...

Inquiry Now
Inquiry Now
Service Description
300m /900feets Depth Pneumatic Earth Drilling Equipment With 8900 N·M Torque
If you want a high-profit drilling device with low comprehensive costs, the ST300s crawler water well rig is your top pick. Its all-in-one design eliminates extra transportation trailers, cutting daily site transfer expenses. The 85KW Yuchai engine features optimized fuel efficiency to reduce diesel expenditure compared with competing models.
Technical Specifications
Engine
85KW
Maximum Turning Torque8900 N·m
Maximum Rotation Speed85/170r/min
Drill Pipe Diameter89mm/102mm
Drilling method Mud pump + air compressor
Overall Dimension
4.8m×1.9m×2.35m
Adaptive ConditionsLoose layer and bedrock
Weight
8T
Key Operational Benefits
  • Max drilling depth of 300 meters, a multi-purpose rig for farm irrigation, geothermal and industrial water supply wells.
  • Wide applicable borehole diameter range of 105–305mm, compatible with various specifications of deep submersible water pumps.
  • Stable 4-ton axial pressure prevents slipping during drilling in loose sand, gravel and hard bedrock layers.
  • 24-ton heavy-duty main winch delivers powerful lifting force for easy retrieval of drill pipes and casings in deep wells to cut labor costs.
  • Dual-speed rotary system with 8900 N·m max torque boosts rock penetration efficiency by 30% in hard rock formations.
  • Crawler chassis with 30° climbing capacity enables free movement on mountains, hills, orchards and gobi deserts.
  • 2.5km/h walking speed allows on-site relocation without extra trailers to save transportation expenses.
  • Dual drilling technologies supported: DTH pneumatic drilling and mud circulation drilling for flexible construction.
Product Gallery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

300m /900feets Depth Pneumatic Earth Drilling Equipment With 8900 N·M  Torque
300m /900feets Depth Pneumatic Earth Drilling Equipment With 8900 N·M  Torque300m /900feets Depth Pneumatic Earth Drilling Equipment With 8900 N·M  Torque
300m /900feets Depth Pneumatic Earth Drilling Equipment With 8900 N·M  Torque
300m /900feets Depth Pneumatic Earth Drilling Equipment With 8900 N·M  Torque
300m /900feets Depth Pneumatic Earth Drilling Equipment With 8900 N·M  Torque
300m /900feets Depth Pneumatic Earth Drilling Equipment With 8900 N·M  Torque

Service Custom Attributes
Type:
Deep Well Drilling Equipment
Max Drilling Depth:
300m
Drilling Diameter:
105-300mm
Rotary Speed:
30/120r/min
Transportation Method:
Sea Freight
Walking Speed:
2.5km/h
Engine:
Yuchai 85KW
Overall Dimension:
4.8m×1.9m×2.35m
