High Efficiency Water Borehole Drilling Machine With Air Compressor/Mud Pump

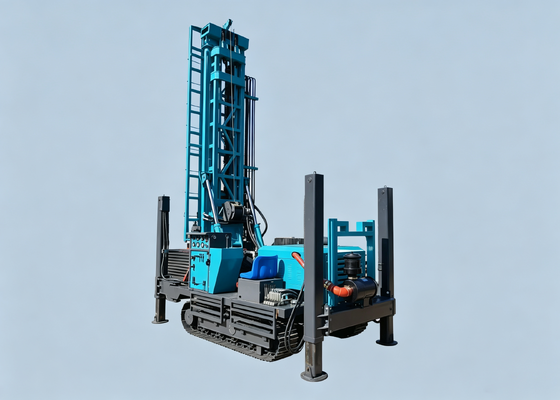

Large Image : High Efficiency Water Borehole Drilling Machine With Air Compressor/Mud Pump

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST300S

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	7-15 workday
Payment Terms:	T/T,Western Union
Supply Ability:	500set

Contact Now

Detailed Product Description

Name:	300m Water Well Rotary Drilling Rig	Max Drilling Depth:	0-300m
Color:	Blue/Yellow/Red/Green	Drilling Diameter:	105-305mm
Drill Pipe Diameter:	89/102	Lifting Force:	24T
Transportation Method:	Sea Freight	Manual:	Yes

High Efficiency Water Borehole Drilling Machine With Air Compressor/Mud Pump

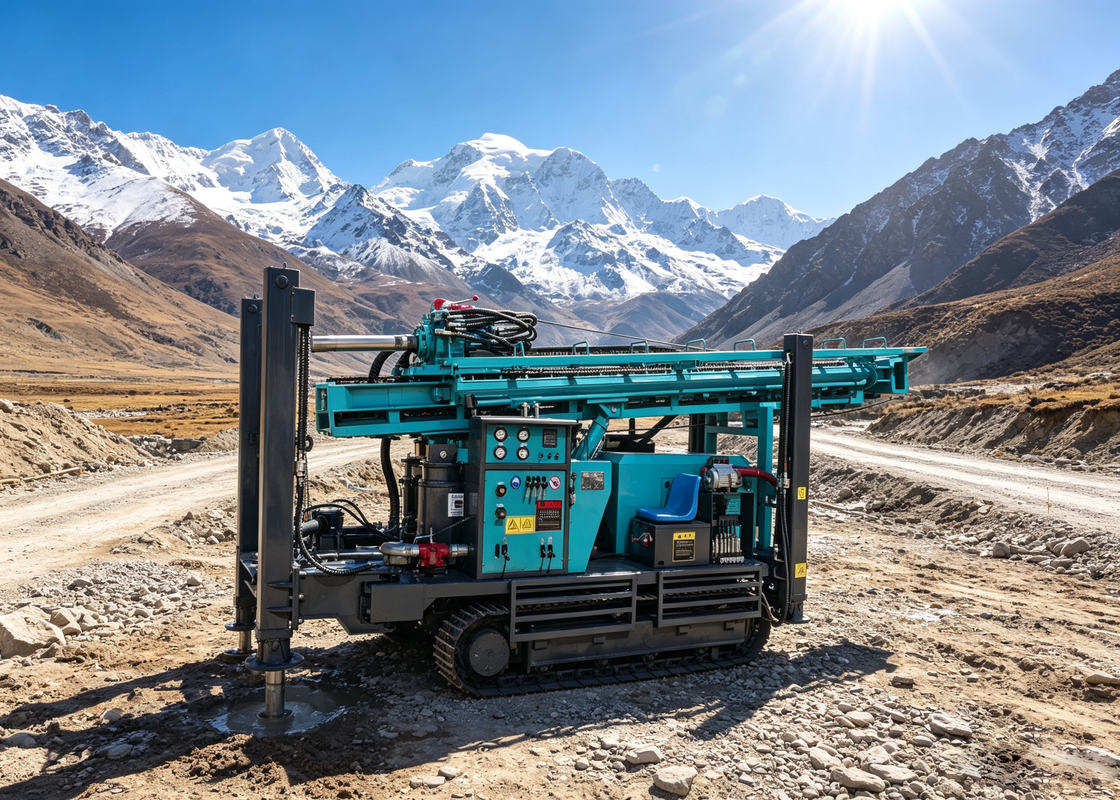

This ST300s crawler water borehole rig supports dual drilling modes with air compressor DTH drilling and mud pump circulation drilling to fit diverse strata. It reaches 300m max depth with 105–305mm adjustable hole diameters, delivering 10–35m/h high footage efficiency.

Powered by a stable 85KW Yuchai engine, it features 4T axial pressure and 24T lifting force for smooth rock and soil drilling. The crawler chassis offers great off-road mobility for farms, mountains and construction sites. Compact size fits standard 20GP containers for easy export shipping. Full CE certifications, English operation guides and one-year warranty are provided for global buyers.

Technical Specifications

Technical Item	Technical Specification
Max Drilling Depth	300m
Maximum Rotation Speed	85/170r/min
Standard Drill Pipe Size	Length: 6m, Diameter: 89mm
Maximum Turning Torque	8900 N·m
Rated Axial Thrust	4 Ton
Main Winch Lifting Capacity	24 Ton
Feed Speed	40 m/min

Key Operational Benefits

300m deep drilling, fits all kinds of strata
Equipped with original 85KW Yuchai diesel engine, it delivers stable power continuously under harsh field conditions including high temperature, drought and high altitude, featuring low failure rate to avoid frequent maintenance downtime during long-site construction.
Dual drilling modes, DTH air & mud drilling available
4T axial pressure matched with 24T main winch lifting force prevents slipping when drilling loose gravel and hard granite, saving labor and time on pulling deep drill pipes and casings to cut on-site labor costs greatly.
30° climbing crawler, flexible movement on mountains & orchards
The whole machine measures 4.8×1.9×2.35m with total weight of 8 tons, fully loadable into standard 20GP container without disassembly, reducing shipping & assembly labor cost for export sea transport.

Product Gallery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
