Yuchai 85KW Hydraulic Borehole Drilling Machine for Arid regions

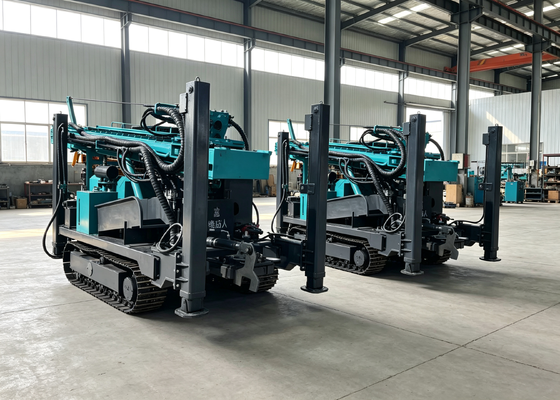

Large Image : Yuchai 85KW Hydraulic Borehole Drilling Machine for Arid regions

Product Details:

Place of Origin:	China
Brand Name:	SHITAN
Certification:	ISO,CE
Model Number:	ST300S

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	Negotiate
Packaging Details:	Wooden Box
Delivery Time:	7-15 workday
Payment Terms:	T/T,Western Union
Supply Ability:	500set

Contact Now

Detailed Product Description

Type:	Water Well Rotary Drilling Rig	Drilling Depth:	MAX 300M
Key Selling Points:	High Working Efficiency	Warranty:	1 Year
Drilling Diameter:	105-305mm	Rotary Speed:	30/120r/min
Transportation Method:	Sea Freight	Country Of Origin:	China

Yuchai 85KW Hydraulic Borehole Drilling Machine for Arid regions

This ST300s crawler borehole drilling machine is powered by a reliable 85KW Yuchai diesel engine, perfectly engineered for harsh, water-short arid areas including African deserts and dry highland plateaus. It supports a maximum drilling depth of 300m with adjustable bore diameters from 105mm to 305mm, ideal for digging farm irrigation wells and residential drinking water wells in drought zones.

Technical Specifications

Max Climbing Gradient	30°
Total Machine Weight	8Tons
Maximum Rotation Speed	85/170r/min
Overall Dimension	4.8m × 1.9m × 2.35m
Maximum Turning Torque	8900 N·m
Applicable Stratum	Loose soil, sand layer, bedrock, granite
Supporting Engine	Yuchai 85KW Diesel Engine
Available Drilling Methods	Top drive hydraulic drilling, DTH pneumatic drilling, mud circulation drilling

Key Operational Benefits

Independent full machining production line
Yuchai 85KW reliable diesel engine, stable operation under high temperature & drought

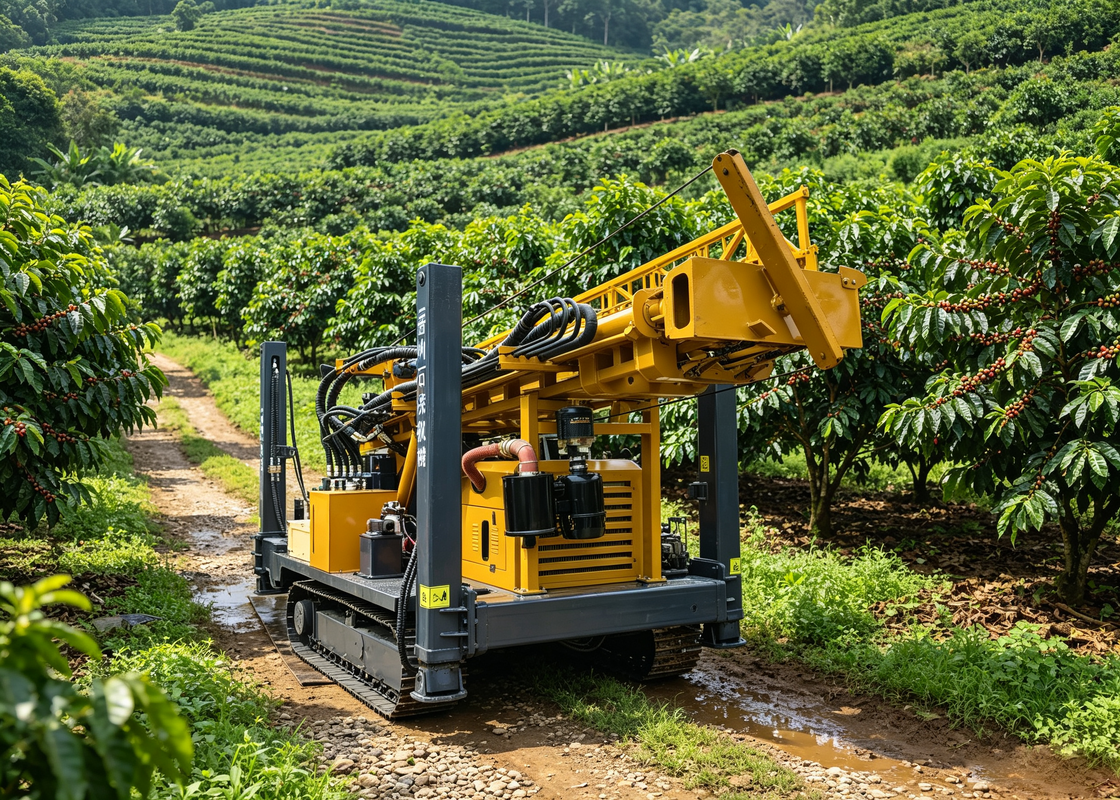

30° climbing crawler, flexible movement on mountains & orchards
Equipped with 73KW Xidong engine providing strong power output optimized for Southeast Asian working conditions
Standard hydraulic outriggers with 1.35m travel realize one-click automatic leveling on uneven ground, single worker can finish setup; the 1.2T auxiliary winch lifts small tools without extra crane support.
Customizable color, size and technical parameters
The whole machine measures 4.8×1.9×2.35m with total weight of 8 tons, fully loadable into standard 20GP container without disassembly, reducing shipping & assembly labor cost for export sea transport.

Product Gallery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
