| Product Name: | XY-1 A Geological Drilling Rig | Power Type: | Diesel / 13.3kw |
|---|---|---|---|
| Model Number: | XY-1A | Drill Depth: | 150m |
| Usage: | Water Well | Color: | Yellow,Yellow Or As Your Rquest |
| Application: | Geological Exploration | Drilling Angle: | 90 ~75° |
| Drilling Diameter: | Customized | Dimensions: | 1100*600*500mm, 600*650*2330mm, |
| Warranty: | 12 Months | After-sales Service Provided: | Video Technical Support |
| Highlight: | 150 meters exploration drilling rig,civil lightweight exploration drilling rig,150 meters geological drilling rig |
||

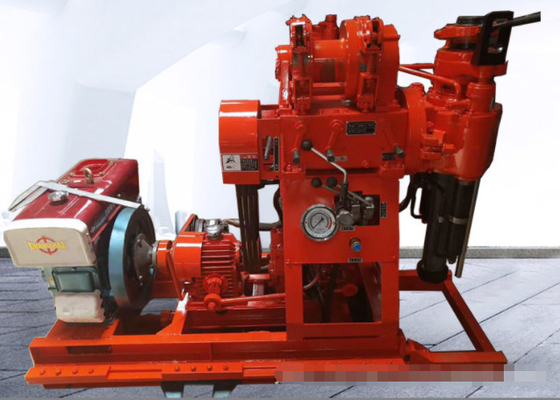

150 Meters Lightweight Geological Drilling Rig Machine
XY-1A Engineering Drilling Rig Machine Introduction
Small drill rig widely used in drilling family wells, drilling industry wells and drilling survey geological sampling, SPT service etc. Drilling dia. will from 50-200mm or larger according to clients requirement.
XY-1A Engineering Drilling Rig Machine Parameter
| Xy -1 A Drilling rig | Drilling hole diameter | mm | 150 |
| Drilling depth | m | 150 | |
| Drill pipe diameter | mm | 42 | |
| Borehole inclination | ° | 90°～75° | |
| Rig dimension(L×B×H) | mm | 1640×1030×1440 | |
| Drill weight(except engine) | kg | 500 | |
|
gyroscope
|
spindle speed(three block) | r/min | 142,285,570 |
| spindle travel | mm | 450 | |
| max moving speed | m/min | 3 | |
| vertical max feed force | KN | 15 | |
| vertical max lift | KN | 25 | |
| windlass | hoisting capacity(single speed rope) | KN | 10 |
| drum speed | r/min | 55,110,220 | |
| drum circumferential velocity | m/s | 0.42,0.84,1.68 | |
| drum diameter | mm | 145 | |
| wire rope diameter | mm | 9.3 | |
| rope weight | m | 27 | |
|
the diameter of the brake
|
mm | 230 | |
| brake band width | mm | 50 | |
| water pump | pump type | horizontal single cylinder double acting | |
| max displacement |
L/min |
95(77) | |
|
max allowable pressure
|
Mpa | 1.2 | |
| working pressure | Mpa | 1.2 | |
| cylinder diameter | mm | 80 | |
| oil pump | pump type | gear pump | |
| power | KW | 16.2 | |
| rated pressure | Mpa | 12.5 | |
| motor type | YBC-12/125 | ||
| displacement | L/r | 12 | |
| rated speed | r/min | 2000 |
XY-1A Engineering Drilling Rig Machine Advantage
1.When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth my not exceed 110% of that drilled in each hole.The maximum allowable hole diameter is 150mm.
2.With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
3.The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown, high efficiency, safe and reliable.
4.A hole bottom pressure gauge is mounted indicating the pressure in order to control the staus inside the hole 5.Compact structure, small volume, lightweight, high detachablity, easy transportation and suitable for the operations in plains or mountain areas.
Installation of Coring Tubes
Buckle the lifter into the groove of the variable diameter joint, move the right handle of the winch to take the pad fork, take out the perforated pipe, install the core tube, lift the drilling tool to the top of the borehole, move the left handle of the winch continuously, and lower the drilling tool into the borehole at a uniform speed. When the groove of the variable diameter joint is close to the inlet, use the pad fork to block and remove the lifter.
What is the best time to do soil sampling?
Soil samples can be taken any time throughout the year. It is important though to sample approximately the same time of the year. Late summer, or early fall, is a good time for most crops. This allows time for lime recommended to react and change the pH before the crop is planted.
