High Speed Pneumatic Drilling Machine Customized Depth St 180 Meters

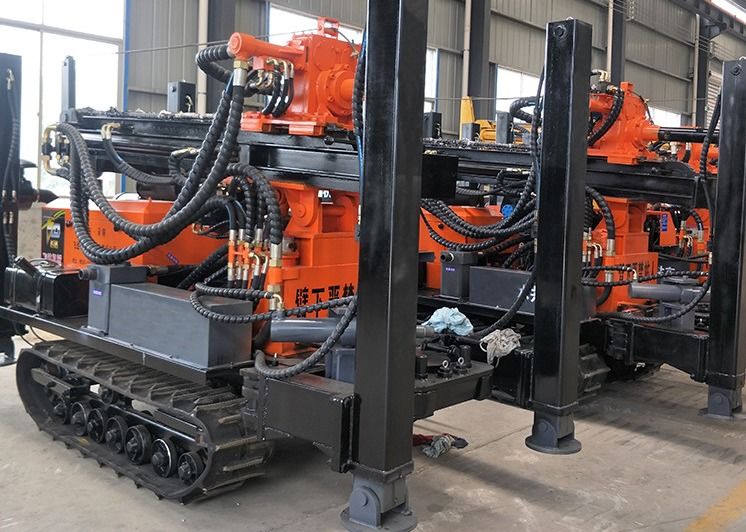

Large Image : High Speed Pneumatic Drilling Machine Customized Depth St 180 Meters

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T, Western Union
Supply Ability:	50000 sets per year

Contact Now

Detailed Product Description

Product Name:	High Drilling Speed Customized Depth ST 180 Meters Pneumatic Drilling Rig	Color:	Red Yellow
Feature:	High Drilling Efficiency	Usage:	Water Well,exploration,soil Testing
Application:	Water Well Drilling	Power Type:	Diesel Engine
Drilling Depth:	180 Meters	Warranty:	1 Year
Voltage:	220V/380V	Length Of Drill Pipe(mm):	3m
Condition:	New	Drilling Depths:	180 Meters
Highlight:	high speed pneumatic drilling machine , customized depth pneumatic drilling machine , 180 meters pneumatic drilling rig

High Speed Pneumatic Drilling Machine Customized Depth St 180 Meters

Product Specifications

Attribute	Value
Product Name	High Drilling Speed Customized Depth ST 180 Meters Pneumatic Drilling Rig
Color	Red Yellow
Feature	High Drilling Efficiency
Usage	Water Well, exploration, soil testing
Application	Water Well drilling
Power Type	Diesel Engine
Drilling depth	180 meters
Warranty	1 Year
Voltage	220V/380V
Length of drill pipe	3m
Condition	New

Product Overview

The ST 180 Pneumatic Drilling Rig is a lightweight, high-efficiency, multi-functional drilling equipment. Featuring advanced structure, easy handling, high efficiency, and durability, it is widely used for drilling wells, farming irrigation wells, geothermal air conditioning holes, and other usage well holes. Particularly suitable for water intake in mountainous areas and rock layers.

Technical Specifications

Item NO.	ST-180	Air consumption(m³/min)	17-31
The Weight(T)	4.5	Equipped capacitor(Kw)	55
Dimensions(mm)	380015502350	Swing speed(rpm)	45-65
The hole diameter(mm)	140-254	Swing torque(N.m)	3200-4600
Drilling Depth(m)	180	Drill pipe diameter(mm)	76 89
Once-time advance length(m)	3.3	Drill pipe length(m)	1.5 2.0 3.0
Walking speed(Km/h)	2.5	Rig lifting force(T)	10
Climbing angles(Max.)	30	Supporting Power	29m3/min 23BAR AIR COMPRESSOR

Key Features

Walking device: Walking motor is equipped with gear box, durable and long life
Hydraulic oil pump: Parallel gearbox design with separate oil pump units, sufficient power supply and reasonable distribution, unique hydraulic system design, simple maintenance and low cost
Power head device: Gearbox is cast in one piece, dual motors provide power, large torque, durable, and low maintenance cost
Drilling rig chassis: Professional excavator chassis, durable, large load-bearing, wide chain plate, little damage to hard roads
Lifting force: Adopting the designed composite boom, the boom is small in size, long in stroke, double cylinder lifting, and the lifting tonnage is large

Operation Guidelines

The operation must be completed by certified personnel with appropriate knowledge
The drilling rig shall not operate without care
When not using the hydraulic system, place the switching valve at the "oil pump unloading" position
When pulling the speed change handle, first cut off the clutch, and change gear after rotation stops
Close the clutch smoothly - avoid violent operation to prevent half engagement
In case of pressure loss, immediately secure the drill pipe or drilling tool
When at front limit position, tighten lock nuts before drilling or lifting
Monitor all pressure gauges continuously during operation
Watch for abnormal noise or high temperature at moving parts

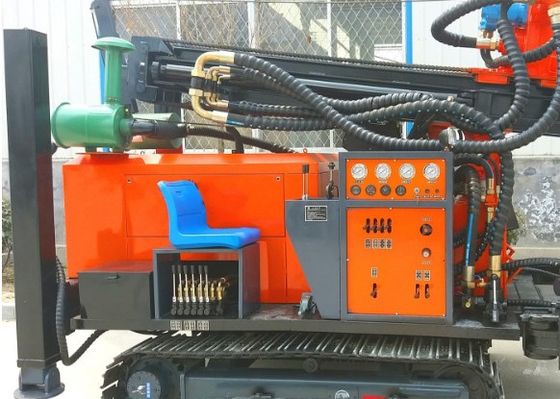

Product Images
