Fast Speed Pneumatic Water Well Drill ST350 Meters Deep Machine

Large Image : Fast Speed Pneumatic Water Well Drill ST350 Meters Deep Machine

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	ST 350

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	Within 7-12 days
Payment Terms:	T/T,Western Union
Supply Ability:	20000 sets per year

Contact Now

Detailed Product Description

Product Name:	Fast Drilling Speed ST 350 Meters Deep Water Well Pneumatic Drilling Machine	Color:	Red Yellow Blue
Feature:	High Drilling Efficiency	Application:	Water Well Drilling
Power Type:	Diesel	Drilling Depths:	350 Meters
Drilling Hole Diameters:	105-305 Mm	Warranty:	1 Year
Voltage:	220V/380V	Length Of Drill Pipe(mm):	3m
Condition:	New	After-sale Service:	Working Video Support
Highlight:	fast speed pneumatic water well drill , 350meters deep pneumatic water well drilling , 350 meters deep pneumatic drilling rig

Fast Speed Pneumatic Water Well Drill ST350 Meters Deep Machine

Product Specifications

Product Name	Fast Drilling Speed ST 350 Meters Deep Water Well Pneumatic Drilling Machine
Color Options	Red, Yellow, Blue
Key Feature	High Drilling Efficiency
Primary Application	Water Well Drilling
Power Type	Diesel
Maximum Drilling Depth	350 meters
Drilling Hole Diameters	105-305 mm
Warranty	1 Year
Voltage	220V/380V
Drill Pipe Length	3m
Condition	New
After-sale Service	Working Video Support

Product Overview

The ST 350 Meters Deep Water Well Pneumatic Drilling Machine is designed for efficient well drilling in various geological conditions. This hydraulic crawler drilling machine is particularly effective for mountain and rock formation projects, with a maximum drilling depth of 350 meters and hole diameter range of 105-350 mm.

Technical Specifications

Model	ST 350 Meters Pneumatic Drilling Machine
Drilling Depth	350m
Hole Diameter	φ105-305mm
Advance Length per Cycle	6.6m
Working Pressure	1.7-3.3MPa
Air Consumption	17-35m³/min
Rod Length Options	1.5m, 2m, 3m (6m available as option)
Rod Diameter	φ89, φ102, φ114
Lifting Power	24T
Rotation Torque	6200-8500 N.m
Rotation Speed	55-115r/min
Diesel Engine	Yuchai
Engine Power	85Kw/2200rpm
Travelling Speed	0-2.5 Km/h
Climb Capacity	30°
Weight	9000kgs
Dimensions	5500x1900x2780mm
Application	Rock, Mud, Sand and other complex geological conditions
Drilling Methods	Top drive hydraulic rotary and propulsion, DTH Drilling or Mud Pump Drilling
DTH Hammer Options	4",5",6",8",10" Drill hammer or CIR110, 130, 150,170

Key Features

Capable of drilling in various strata with borehole diameters up to 245-294mm
Hydraulic technology with high torque hydraulic motor rotation
Large bore hydraulic cylinder push system
Multi-cylinder engine from reputable manufacturer powers the hydraulic system
Two-stage air filter and air compressor intake design extends engine life
Special pump set design for enhanced performance

After-Sale Service

Multiple models available for water well drilling, mine blast holes, and underground projects
Payment terms: 30% deposit, 70% before delivery with product photos provided
Standard delivery time: 7-10 working days after payment (varies by order specifics)
1 year warranty on main machine (hammer excluded)
Comprehensive support including installation and operation videos

Oil Filter Replacement Procedure

Unscrew and discard the old oil filter
Clean the filter shell and clear differential pressure through holes
Verify differential pressure transmitter functionality
Fill new filter with oil and lubricate sealing ring
Install filter until contact with gasket, then hand-tighten an additional 1/3 turn
Check for leaks after startup

Note: Filter replacement must be performed when the machine is stopped and pressure released. Caution required for hot oil to prevent burns.

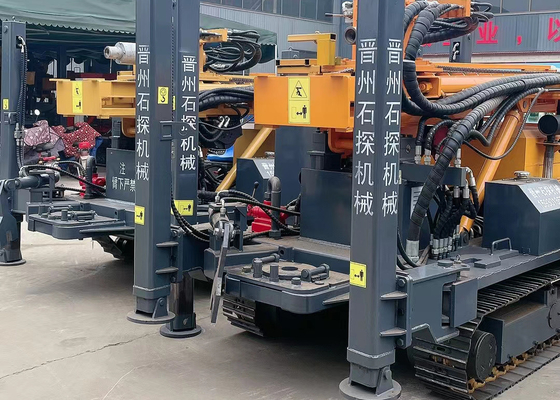

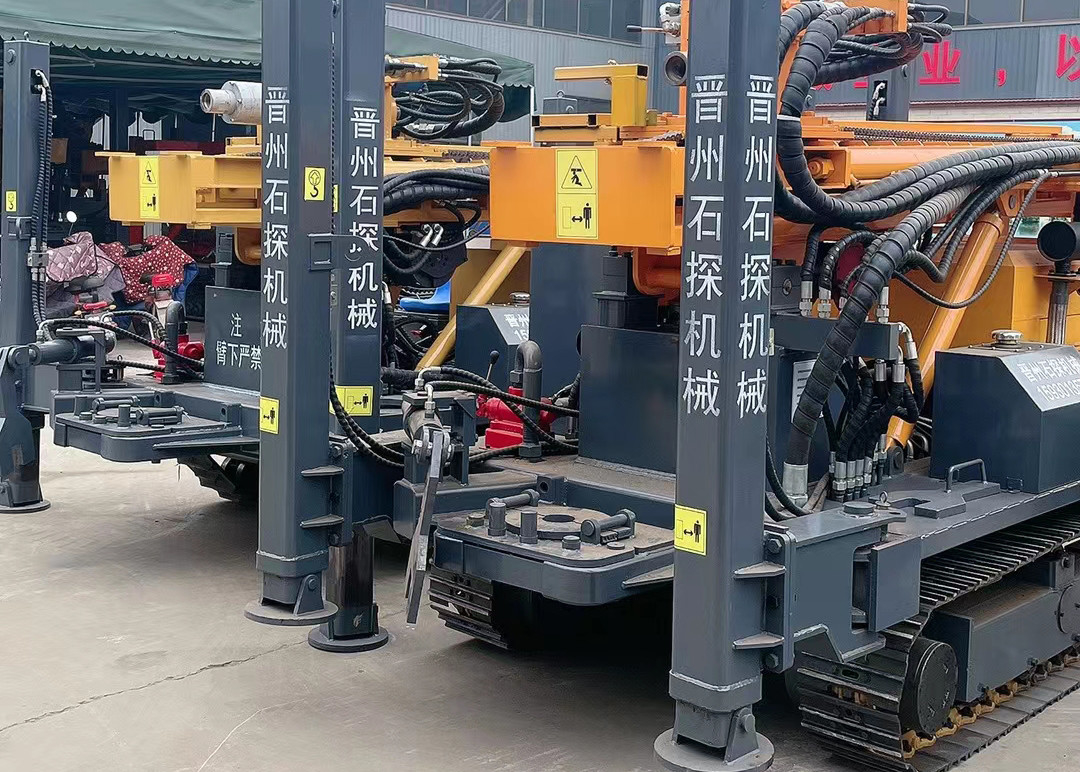

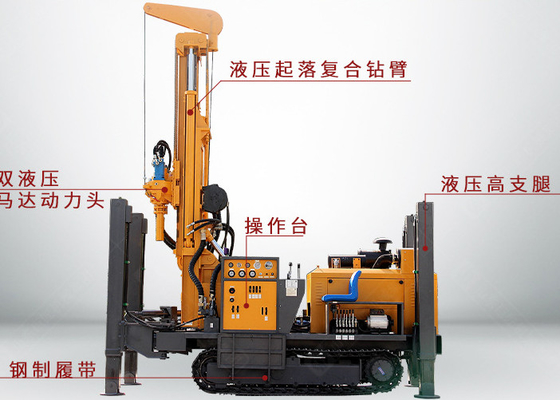

Product Images
